Summary of Contents for Beko DSV74W
-

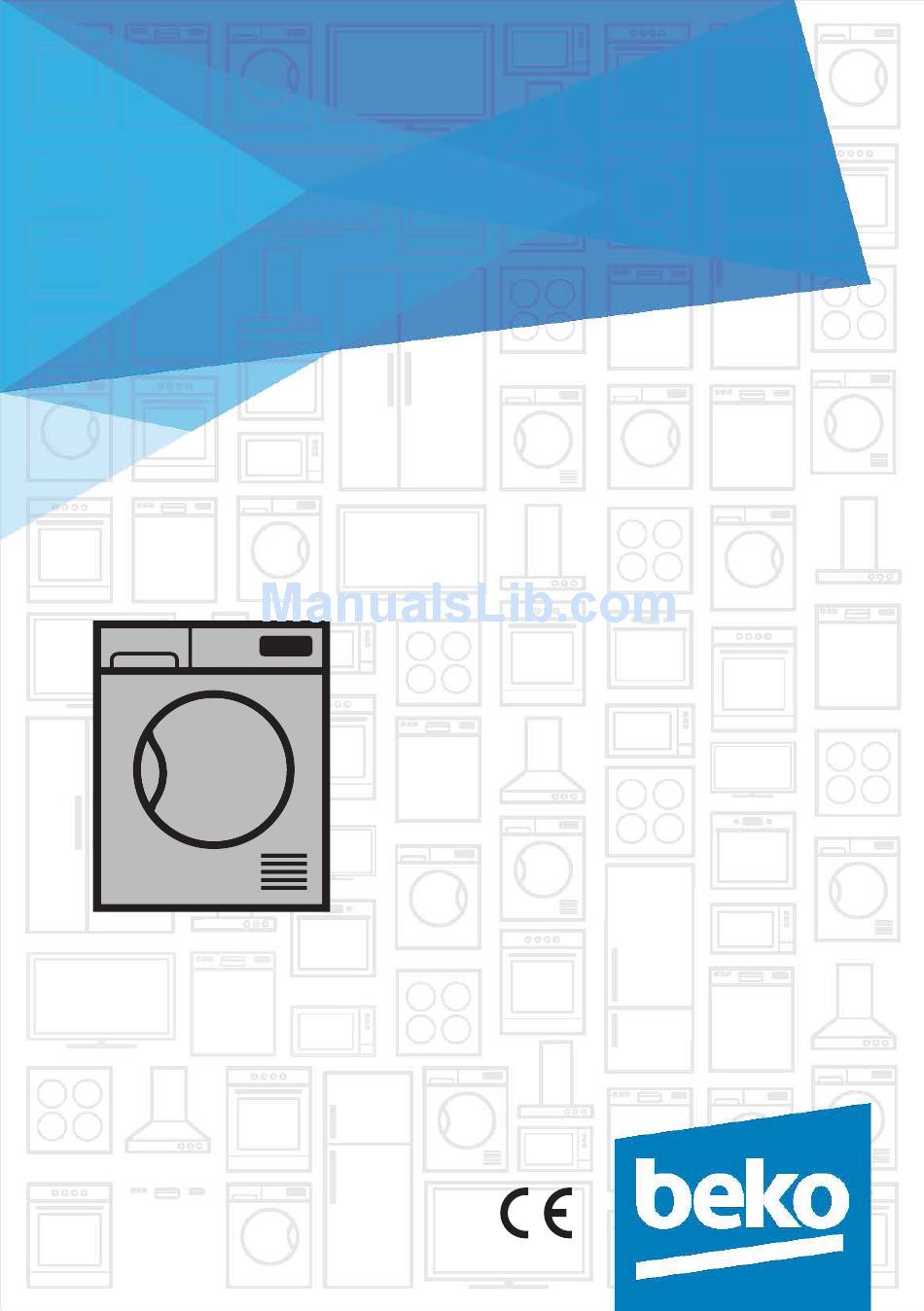

Page 1: User Manual
Dryer User Manual DSV74W 2960311763_EN/250418.1226... - Page 2 Please read these instructions first before using your appliance Thank you for choosing a Beko appliance. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions.
-
Page 3: Important Safety And Environmental Instructions
Important safety and environmental instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are... -
Page 4: Electrical Safety
1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. -
Page 5: Product Safety
1.1.2 Product safety Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat. - Page 6 • You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect. Clothing that contains metal reinforcements should not be dried in the dryer.
-
Page 7: Mounting Over A Washing Machine
• Fabric softeners, or similar products.should be used as specified by the fabric softener instructions. • Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. 1.2 Mounting over a washing machine •... -
Page 8: Child Safety
• The manufacturer waives any responsibility arisen from incorrect usage or transportation. • Original spare parts will be available to repair the dryer for a period of 10 years. 1.4 Child safety • Packaging materials are dangerous for the children. Keep packaging materials away from children. -
Page 9: Package Information
1.7 Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. -
Page 10: Your Dryer
Your Dryer 2.1 Overview 1- Rating label 2- Control Panel 3- Fluff filter 4- Adjustable Feet 5-Power Cord Dryer / User Manual... -
Page 11: Package Contents
2.2 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual... -
Page 12: Appropriate Installation Location
Installation 3.2 Ventilation hose and Refer to the nearest Authorised Service Agent for installation of your product. connection (for products equipped with an outlet vent) Preparation of location and elec- trical installation for the product Ventilation hose assures exhausting of the is under customer’s responsibility. -
Page 13: First Use
You may supply 2 plastic pieces from an Authorized Service with 2951620100 part number. These parts prevent your machine from slipping when the machine lo- cates on wet and slippery surfac- es. You may assemble mentioned parts to the front adjustable feet by fitting and pressing them to snap into ground of feet. -
Page 14: Initial Preparations For Drying
Initial Preparations For Drying 4.1 Things to be done for 4.2 Laundry suitable for drying energy saving: in the machine • Make sure that you operate the product Always follow the suggestions at its full capacity but pay attention to on the laundry labels. -
Page 15: Preparing Laundry For Drying
• Overly wet laundry or laundry with • Laundry may be tangled after washing. dripping water must not be put into the Separate your laundry before placing dryer. them into your dryer. • Items cleaned or washed with gasoil/ • Sort your laundry according to their types fuel oil, dry-laundry solvents and other and thicknesses. - Page 16 Following weights are given as examples. Approximate Home articles weights (g) Cotton quit covers (double) 1500 Cotton quit covers (single) 1000 Bed sheets (double) Bed sheets (single) Large tablecloths Small tablecloths Tea napkins Bath towels Hand towels Approximate Garments weights (g) Blouses Cotton shirts Shirts...
-
Page 17: Operating The Product
Operating the product 5.1 Control panel 1. Filter cleaning warning light 4. On/Off button 2. Programme follow-up indicator 5. Programme selection knob 3. Buzzer Cancel 6. Start/Pause/Cancel button 5.2 Preparing the machine Dry at high temperature only 1. Plug in your machine. for cotton laundry. -
Page 18: Main Programmes
For further programme deta- In order to obtain better results ils, see, “Programme Selection from the dryer programmes, your Table” laundry must be washed with suitable programme and spun at the recommended spin speeds in 5.4 Main programmes your washing machine. Depending on the type of laundry, the fol- Shirts lowing main programmes are available:... -
Page 19: Programme Selection And Consumption Table
5.6 Programme selection and consumption table Spin speed in Approximate Drying time Programmes Capacity (kg) washing machine amount of remaining (minutes) (rpm) humidity Cottons / Coloreds 1200-1000 % 60 900-800 % 70 1200-1000 % 60 900-800 % 70 1200-1000 % 60 900-800 % 70 Cupboard Dry... -
Page 20: Auxiliary Function
5.7 Auxiliary function illuminated until the next step. “End / Anticrease Cancel audio warning - Illuminates when the programme comes Your dryer will give an audio warning when to an end and anti-creasing function is acti- the programme comes to an end. If you do vated. -
Page 21: Finishing By Canceling The Programme
Adding/removing laundry in standby mode In order to add or remove laundry after the programme starts: 1. Press the “Start/Pause/Cancel” button to switch the dryer to “Pause” mode. Drying process will stop. 2. Open the door at “Pause” position and close it again after adding or taking out laundry. - Page 22 A 2-hour anti creasing pro- gramme to prevent laundry from creasing will be activated if you do not take the laundry out after the programme has come to an end. If you will not take the laundry out immediately, do not stop the dryer before the drying process is complete.
-
Page 23: Maintenance And Cleaning
Maintenance and cleaning 6.1 Fluff filter Clogging may arise on the filter Lint and fibres released from the laundry to surface after using your machine the air during the drying cycle are collected in for some time; if this occurs, the “Fluff Filter”. -
Page 24: Solution Suggestions For Problems
Solution suggestions for problems Drying process takes too much time • Meshes of the filter may be clogged. Wash with water. Laundry come out wet at the end of drying. • Meshes of the filter may be clogged. Wash with water. •... -
Page 25: Door Reversal
Door Reversal 1. Unplug the dryer. 2. Open the door. 3. Turn the contact pin in the upper part of door by 90° in the anti-clockwise direction and remove it. 4. Unscrew the 2 screws of each door hinge and remove the door. 5. -
Page 26: Electrical Connection
Electrical Connection Make sure that you have an earthed power Do not operate without the top outlet socket rated at 13 amps (minimum). cover fitted. Risk of injury. 9.1 Attention! When installed, the socket must be reachable Important after installation, or a separate switch (which can disconnect the two poles) must be used 9.3 Fitting a different plug in the installation. - Page 27 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark Beko DSV74W Model name Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) Automatic Type of Control Non-automatic Energy consumption of the standard cotton programme at full load (kWh)
- Page 28 If you have purchased an American style Fridge freezer, the standard guarantee starts from the date of original purchase of the product, and lasts for a period of twenty four (24) months unless Beko plc (the “Manufacturer”) agrees to extend the guarantee for the product in writing.
- Page 29 If you are resident in the Republic of Ireland, this guarantee will be governed by Irish law and the Irish courts will have jurisdiction. This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8QU. Beko plc is registered in England and Wales with company registration number 02415578.
- Page 30 Beko Free standing appliances come with a 12 month parts and labour guarantee as standard, Beko Built-in appliances come with a 12 month parts and labour guarantee as standard. This is extended to 24 months, free of charge, upon registration of the appliance. When you register your appliance for additional guarantee, you will automatically activate the ProSmart Motor 10 year guarantee.
- Page 31 Send us a secure message through our online contact us form. Please visit our website, click Contact Us and choose a product support topic from the list of options. Complete the required details and click send message. Product registrations For UK registrations please visit beko.co.uk/register and for the Republic of Ireland visit beko.ie/register. Dryer / User Manual...
