Summary of Contents for Plus P-106A

  • Page 1 340-4, DANGSAN-DONG 6KA, YOUNGDEUNGPO-KU, SEOUL, KOREA TEL : +82-2-2679-4131~8 FAX : +82-2-2679-4114 http://www.plus.co.kr e-mail : plus plus.co.kr Copyright ⓒ 2007 PLUS All Rights Reserved Printed in KOREA(Ver 1.2)

  • Page 2: Table Of Contents

    NOTE : This equipment has been tested and found to comply with the limits for a Class A digital C O N T E N T S device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Foreword

    FOREWORD SPECIFICATIONS Thank you for selecting a Plus Bank Note Counting Machine. This manual has been Dimensions 280mm(W)×206mm(H)×236mm(D) compiled to provide complete instructions for operating the machine. Before starting, please read the instructions thoroughly to familiarize yourself with all of Weight Approx.

  • Page 4: Appearance

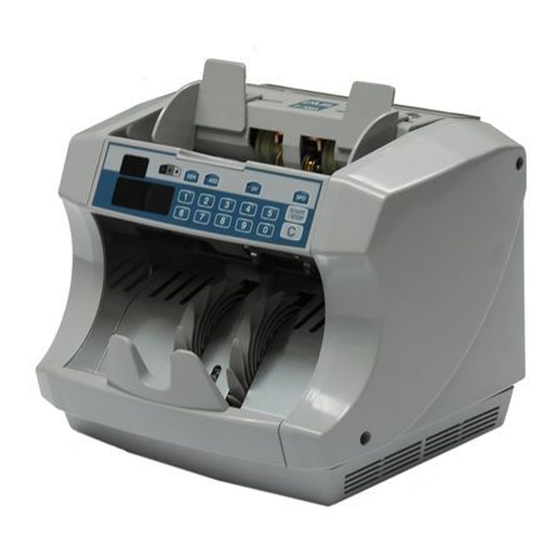

    NAME FUNCTION APPEARANCE Notes to be counted are placed in the Hopper. HOPPER SELF CENTERING Easily adjust the hopper plates to the different width size of banknotes HOPPER PLATES HANDLE Used for carrying the machine. Used for the proper adjustment of gab between paper feeding PAPER THICKNESS rollers for smooth counting of various notes to have different paper ADJUSTMENT SCREW...

  • Page 5: Operation Panel

    NAME FUNCTION OPERATION PANEL Counter numerical display The number of counted notes is displayed here. By pressing any number key, user can freely preset the number Preset key to be counted. Clear key This key is used to clear errors. Used to stop or to restart the counting temporarily during Restart key counting operation.

  • Page 6: Operation

    NAME FUNCTION OPERATION By pressing this key, the counting will be stopped in case a Ultra Violet Detection key 1 ) Switch on the power, located on the back of the unit. ( OPTION ) counterfeit note is detected through UV features. 2 ) Display will default to 100 for the batch, the lower right corner should read “O”...
  • Page 7 6 ) How to Sort bank notes 7 ) How to set test mode Precautions to insure proper settings for counting of bank notes Damp and/or badly damaged notes should be avoided. Check that no foreign matter ( piece of paper, paper clip, dust, etc. ) is mixed in the bundle of notes.
  • Page 8 8 ) Test mode How to select test mode Push ① key for 2~3 seconds. Key No ITEMS CONTENTS Motor is operated continuously. ① Motor condition checking. How to select each test mode Motor is switched ON or OFF every time. When test mode is on standby, set the objective test number on the panel by ②...
  • Page 9 Key No ITEMS CONTENTS Key No ITEMS CONTENTS ③ Indicates sensor condition. Abnormal status of start & End sensor. Indicates total number of ④ passed notes. 0 0 0 1 6 0 0 2 E n d Indicates production ⑤ Abnormal status of Left &...
  • Page 10 9 ) User mode Key No ITEMS CONTENTS Push ⑨key for 2~3 seconds to enter into user mode. When user mode is on standby, set the objective setting number, ①`or`② on the panel. b E L Setting buzzer sound Key No ITEMS CONTENTS ②...

  • Page 11: Error Code

    ERROR CODES TYPE OF CAUSE OF PROCEDURE FOR REMOVING DISPLAY ERROR ERROR THE CAUSE OF ERROR When an error occurs, error code will be displayed. Confirm the problem indicated by the error Short note Check the encoder sensor or Encoder Wheel. code and try to remove the error according to the following procedures.

  • Page 12: Troubleshooting

    Sensors are used for the counting system in this machine. As these sensors TROUBLESHOOTING Note 1. are of optical construction, the system may cause miscounting if dust or dirt If a problem occurs, please check the following “Troubleshooting Guide”. By taking the corrective are stuck on the sensors.

  • Page 13: Self Cleaning

    TROUBLES CAUSE AND TROUBLESSHOOTING SELF CLEANING 1 ) Same as above No Notes are not arranged 1) Dust collector 2 ) Stacker vane is bent or folded. properly in the stacker. The dust arose from the counting operation will be gathered in this dust collector and user can 1 ) See No of Error Codes on page 21 remove the dust easily with the simple disassembling of this device.
