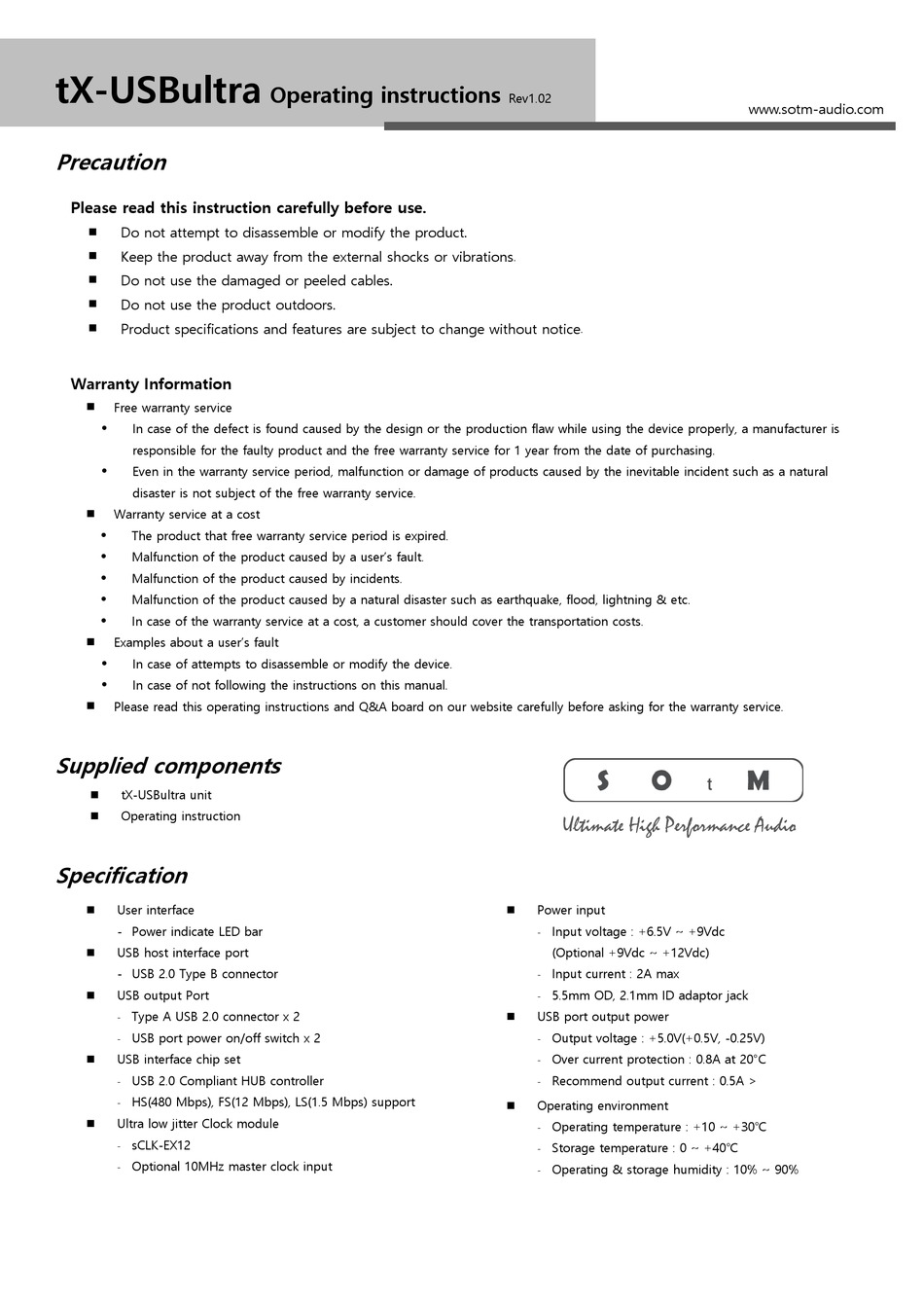

SOtM tX-USBultra Operating Instructions

tX-USBultra
Precaution
Please read this instruction carefully before use.
Do not attempt to disassemble or modify the product.

Keep the product away from the external shocks or vibrations

Do not use the damaged or peeled cables.

Do not use the product outdoors.

Product specifications and features are subject to change without notice


Warranty Information

Free warranty service

In case of the defect is found caused by the design or the production flaw while using the device properly, a manufacturer is

responsible for the faulty product and the free warranty service for 1 year from the date of purchasing.
Even in the warranty service period, malfunction or damage of products caused by the inevitable incident such as a natural

disaster is not subject of the free warranty service.
Warranty service at a cost

The product that free warranty service period is expired.

Malfunction of the product caused by a user's fault.

Malfunction of the product caused by incidents.

Malfunction of the product caused by a natural disaster such as earthquake, flood, lightning & etc.

In case of the warranty service at a cost, a customer should cover the transportation costs.

Examples about a user's fault

In case of attempts to disassemble or modify the device.

In case of not following the instructions on this manual.

Please read this operating instructions and Q&A board on our website carefully before asking for the warranty service.

Supplied components
tX-USBultra unit

Operating instruction

Specification
User interface

- Power indicate LED bar
USB host interface port

- USB 2.0 Type B connector
USB output Port

Type A USB 2.0 connector x 2
-
USB port power on/off switch x 2
-
USB interface chip set

USB 2.0 Compliant HUB controller
-
HS(480 Mbps), FS(12 Mbps), LS(1.5 Mbps) support
-
Ultra low jitter Clock module

sCLK-EX12
-
Optional 10MHz master clock input
-
Operating instructions
Rev1.02
.
.
Ultimate High Performance Audio
Power input

Input voltage : +6.5V ~ +9Vdc
-
(Optional +9Vdc ~ +12Vdc)
Input current : 2A max
-
5.5mm OD, 2.1mm ID adaptor jack
-
USB port output power

Output voltage : +5.0V(+0.5V, -0.25V)
-
Over current protection : 0.8A at 20°C
-
Recommend output current : 0.5A >
-
Operating environment

Operating temperature : +10 ~ +30℃
-
Storage temperature : 0 ~ +40℃
-
Operating & storage humidity : 10% ~ 90%
-
