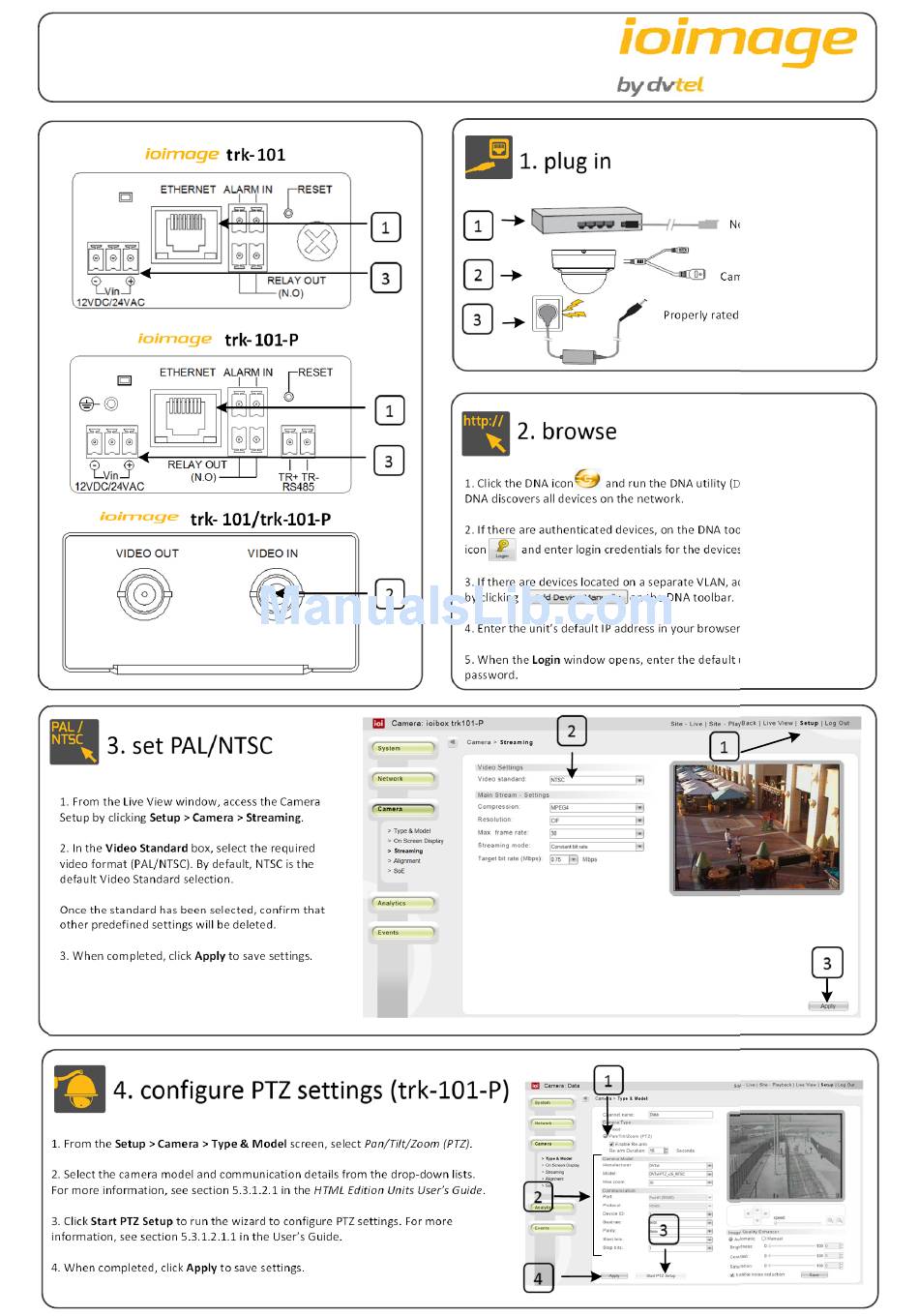

Quick Install Guide
trk‐101 and trk‐101‐P Analytic IP Encoders
trk‐101‐P
trk‐ 101/trk‐101‐P
1. From the Live View window, access the Camera
Setup by clicking Setup > Camera > Streaming.
2. In the Video Standard box, select the required
video format (PAL/NTSC). By default, NTSC is the
default Video Standard selection.
Once the standard has been selected, confirm that
other predefined settings will be deleted.
3. When completed, click Apply to save settings.
1. From the Setup > Camera > Type & Model screen, select Pan/Tilt/Zoom (PTZ).
2. Select the camera model and communication details from the drop‐down lists.
For more information, see section 5.3.1.2.1 in the HTML Edition Units User's Guide.
3. Click Start PTZ Setup to run the wizard to configure PTZ settings. For more
information, see section 5.3.1.2.1.1 in the User's Guide.
4. When completed, click Apply to save settings.
trk‐101
1. Click the DNA icon and run the DNA utility (DNA.exe).
DNA discovers all devices on the network.
2. If there are authenticated devices, on the DNA toolbar, click the Login
icon and enter login credentials for the devices.
3. If there are devices located on a separate VLAN, add them manually
by clicking on the DNA toolbar.
4. Enter the unit's default IP address in your browser.
5. When the Login window opens, enter the default user name and
password.
Network (Ethernet)
Camera/Video Source
Properly rated power supply
Advertisement
Table of Contents
Summary of Contents for Ioimage trk-101
- Page 1 Quick Install Guide trk‐101 and trk‐101‐P Analytic IP Encoders trk‐101 Network (Ethernet) Camera/Video Source Properly rated power supply trk‐101‐P 1. Click the DNA icon and run the DNA utility (DNA.exe). DNA discovers all devices on the network. trk‐ 101/trk‐101‐P 2. If there are authenticated devices, on the DNA toolbar, click the Login icon and enter login credentials for the devices. 3. If there are devices located on a separate VLAN, add them manually by clicking on the DNA toolbar. 4. Enter the unit’s default IP address in your browser. 5. When the Login window opens, enter the default user name and password. 1. From the Live View window, access the Camera Setup by clicking Setup > Camera > Streaming. 2. In the Video Standard box, select the required video format (PAL/NTSC). By default, NTSC is the default Video Standard selection. Once the standard has been selected, confirm that other predefined settings will be deleted. 3. When completed, click Apply to save settings. 1. From the Setup > Camera > Type & Model screen, select Pan/Tilt/Zoom (PTZ). 2. Select the camera model and communication details from the drop‐down lists. For more information, see section 5.3.1.2.1 in the HTML Edition Units User’s Guide. 3. Click Start PTZ Setup to run the wizard to configure PTZ settings. For more information, see section 5.3.1.2.1.1 in the User’s Guide. 4. When completed, click Apply to save settings.
- Page 2 1. For each preset, from the Live View window, select Setup > Analytics > Depth > Solo Setup. The following instructions are displayed on the screen. 2. On the Solo Setup control keypad, click the Start Recording icon and select a folder where to store the clip. 3. Press Stop Recording. 4. Proceed to the tab for Step 1: Ground & Height to place ground and height markers and guidelines in the clip. 5. Click Browse to load and view the clip. Navigate the clip and add human markers. 6. Exit Clip mode and return to Live mode by pressing the round Play button on the control panel located to the left of the monitor. Continue setting depth by proceeding to the tabs for Steps 2‐4. Follow the on‐screen instructions. Expand the Help section included with each step for detailed information. Verify that the settings provide an accurate representation of the sizes and distances in the scene. When finished, click Apply to save settings. From the Setup tab, select Analytics > Rules. A rule for detecting humans or vehicles entering the scene (blue masked area) is defined by default. You can activate rules, modify settings, delete, or add a new rule. To create a new rule, for each preset: 1. Click New. 2. Select the rule type. 3. Draw on the video scene where you want the detection to take place. 4. Define the attributes for detection. 5. When finished, click Apply to save the settings. 1. Select the Live View tab. 2. Select Arm. The camera is armed and ready to use. The label of the Arm button is renamed Disarm. Warning: THIS GUIDE IS FOR DEMONSTRATION PURPOSES ONLY. For ...
