Summary of Contents for Yoko Technology RYK-IPCB021W

  • Page 1 User’s Manual - 1 -...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, prevent any possible danger.

  • Page 3: Table Of Contents

    Table of Contents Product Feature ..........................  ‐  5 ‐  CHAPTER 1 Physical Description  ....................  ‐  6 ‐      Front Panel .......................... ‐ 6 ‐     Side Panel  .......................... ‐ 8 ‐   Rear Panel .......................... ‐ 9 ‐  CHAPTER 2 Installation ......................  ‐  10 ‐      LAN Connection  ........................ ‐ 10 ‐     2.1.1 Network Setting  ............................ ‐ 10 ‐     2.1.2 Utility ............................... ‐ 11 ‐    ...
  • Page 4     4.2.6 HTTP Setting ............................ ‐ 45 ‐     4.2.7 DDNS ............................... ‐ 48 ‐     4.2.8 UPnP ................................ ‐ 48 ‐     4.2.9 Onvif ................................ ‐ 51 ‐     Security .......................... ‐ 52 ‐     4.3.1 User Management ........................... ‐ 52 ‐     4.3.2 IP Address Filter  ............................ ‐ 53 ‐     Event ............................ ‐ 54 ‐     4.4.1 Event Setting  ............................ ‐ 55 ‐     4.4.2 Motion Detection ............................ ‐ 58 ‐...

  • Page 5: Product Feature

    Product Feature  1 Megapixel image; resolution is up 1280x720.  Support H.264 / MJPEG codec, video quality is adjustable, video type can be divided into Profile 1、Profile 2、Profile 3.  Support Onvif Profile S version 2.3.  Built-in speaker, easier to broadcast through camera directly. ...

  • Page 6: Chapter 1 Physical Description

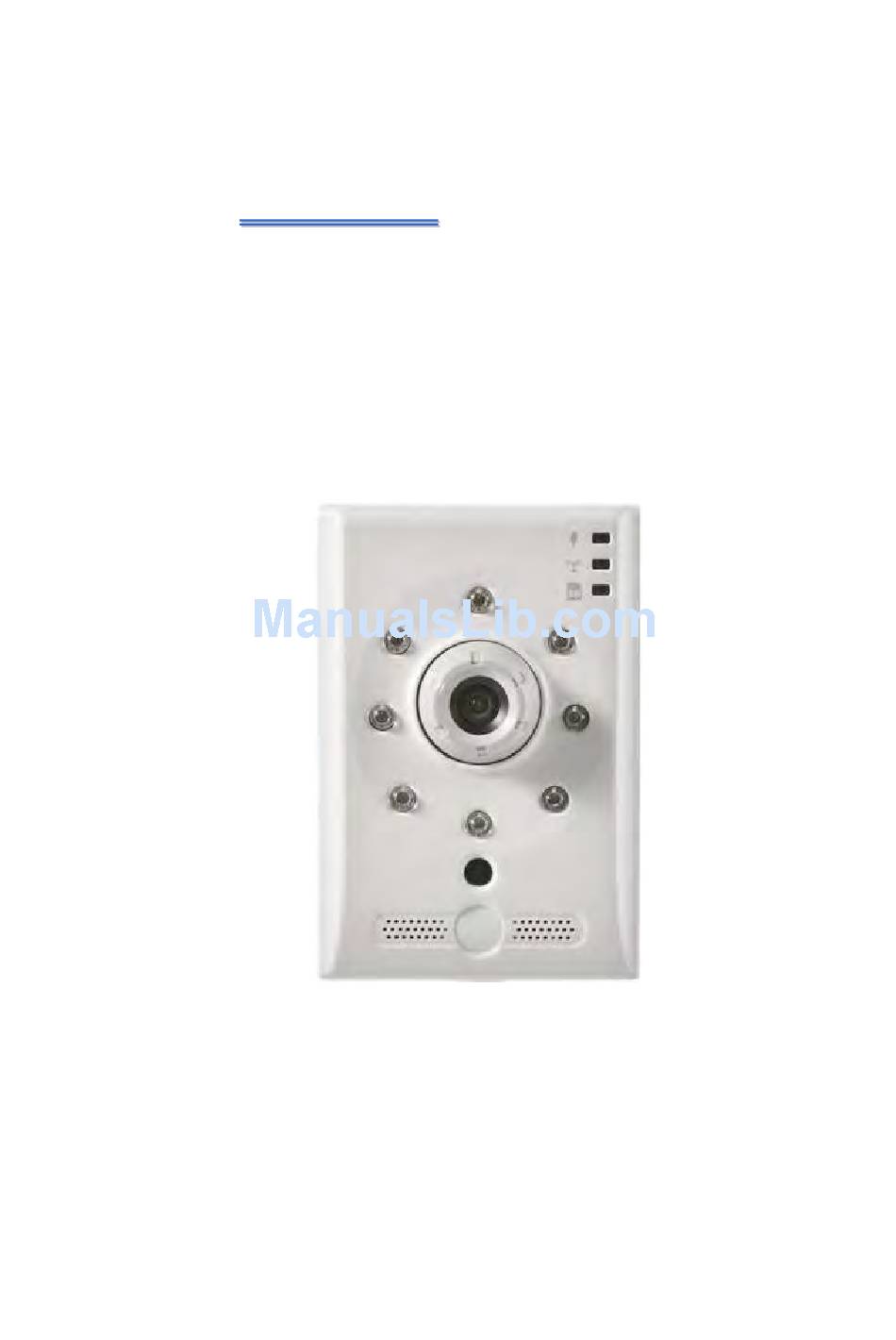

    CHAPTER 1 Physical Description 1.1 Front Panel Power Status LED Network Status LED SD Card Status LED IR LED Adjustable focal Lens Light Sensor Microphone Speaker  Power / Network / SD Card Status LED Network camera status LED indicate power/ network/ SD card status. Detailed alert description and LED status is listed as below table 1-1.
  • Page 7  Speaker Built-in speaker; audio output to speaker and audio out device at the same time when user uses broadcast function.  Microphone Built-in microphone. LED Indicators Alert description LED status Booting up Solid Red Power Status Device complete boot-up Solid Green Normal Solid Green...

  • Page 8: Side Panel

    1.2 Side Panel Reset Button Micro SD Card Slot  Reset Button (Hardware Reset) The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. Press and hold the recessed reset button until the status LED rapidly blinks orange.

  • Page 9: Rear Panel

    1.3 Rear Panel WPS Button Alarm I/O Terminal Block Power Cord Socket Ethernet 10/100 RJ45 Socket  WPS Button For easy connecting to an access point through push button configuration (PBC)  Alarm I/O Terminal Block To connect external alarm I/O devices, please refer to below for Alarm I/O pin definition. Pin Function Digital Output (DO-) Digital Output (DO+)

  • Page 10: Chapter 2 Installation

    CHAPTER 2 Installation 2.1 LAN Connection Figure2-1 (1) Connect the 5V DC adaptor to the power jack on the rear panel of the network camera. (2) Connect the camera output of the analog camera through the coaxial cable to the video input of the network camera.

  • Page 11: Utility

    Setup format： IP Address：192.168.100.xxx Subnet Mask：255.255.255.0 Default Gateway192.168.100.1 Figure2-2 2.1.2 Utility (1) Please install Utility from the product CD. (Please refer to chapter 2.3.1 for installation procedures.) (2) Start Utility. (3) After starting Utility, the program will automatically search and display supportive devices in local LAN.
  • Page 12 (6) Please select on the device you would like to modify its setting and click “Modify”.  Enter username and password. (Default username and password is admin/ admin)  User can manually modify system setting: host name ,connection type , IP address ,and web port.

  • Page 13: Install Active X

    (9) The same models firmware can be upgraded together through utility. 2.1.3 Install Active X Once you have logged in, you will see a pop-up information bar requiring your attention for installing ActiveX Control, use mouse right click to install ActiveX control. (1) Device default ID and password is admin/admin.
  • Page 14 (3) Once Active X installation complete, you will see the live viewing page. - 14 -...

  • Page 15: Wireless Connection: Using The Wps Button

    2.2 Wireless Connection: Using the WPS Button 2.2.1 Wireless network connection illustration 2.2.2 WPS Setting - 15 -...
  • Page 16 1. Make sure your AP (Access Point) support WPS (Wi-Fi Protected Setup) functions. WPS enables easy setup with compatible APs. 1. The network camera support WPS 2.0. Make sure the AP authentication method WPA2and the encyrption. configure AES ,then the network connectivity will be established with AP by WPS. 2.
  • Page 17 1. After pressing WPS button on the network camera, it will take 2 munities to search for AP. In the mean time, press the WPS button on AP within 2 munities. The network camera will stop pairing if connectivity is not established.. When WPS activated, the network camera will be automatically set DHCP mode.

  • Page 18: Software Installation

    2.3 Software Installation Please install following software from product CD. 2.3.1 Install Utility (1) Click Install Utility Tool (2) Click Next. - 18 -...
  • Page 19 (3) Select Installation Folder. (4) Confirm Installation, please click Next. - 19 -...

  • Page 20: Recommended Computer Equipment

    (5) Installation complete, please click Close to exit. 2.4 Recommended Computer Equipment Intel® Core 2 Due E7200 or above 1GB or above Audio Card Needed Windows 2000, Windows XP SP2 and Operation System above, Windows Vista, Windows 7 Browser IE6 SP2 and above - 20 -...

  • Page 21: Chapter 3 Live View Page

    CHAPTER 3 Live View Page 3.1 User Login Figure4-1 One minute after the device is powered on, please start Utility. The program will automatically search and display all of the IP Camera devices on local LAN, please see the Figure4-1. Please click on the device you would like to access, and then enter login page of the device, please see Figure4-2.
  • Page 22 Figure4-2 Please key in default username and password, and then click on “confirm” to continue a. Default username：admin b. Default password：admin - 22 -...

  • Page 23: Live View Page

    3.2 Live View Page Figure4-3 The user enter live view page after log-in successfully. The live view page includes: - Live view image: the default image is profile 1(1280x720 resolution). - Functions: the user can select Profile, Protocol, Language from drop down menu. - Setting: the user can enter setting page by click on setting.

  • Page 24: Control Panel

     TCP Choose this item while the network is under low bandwidth. Video and audio streaming transmits through network TCP layer. If no confirmation message is received, the source port will send that packet again. TCP guarantees the complete delivery of streaming data and thus provides better video quality.

  • Page 25: Status Icon

    Buffer– Due to possible occurrences of unsteady network transmission, live streaming may lag and not be very smoothly. If you enable this option, the live streaming will be stored on the client PC’s cache memory for a few seconds(300ms) before being played on the client computer’s live view window.

  • Page 26: Chapter 4 Device Setting

    CHAPTER 4 Device Setting Click < setting button > on the main page to configure the camera settings pages - 26 -...

  • Page 27: Camera Setting

    4.1 Camera Setting 4.1.1 Image  Brightness Drag the slider bar to adjust the image brightness level from 0 to 100, default setting is 50.  Saturation Drag the slider bar to adjust the image saturation level from 0 to 100, default setting is 50. ...
  • Page 28  Mirror Enable to horizontally reflect the display of the live video.  White Balance White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The device can be set to automatically identify the light source and compensate for its color.
  • Page 29 Day/ Night is set for controlling ICR(IR cut filter remove) switching, the default setting is auto mode.  Day/Night Setting ◎ Auto mode: ICR automatically switch to night mode according to light sensor measure the illumination volume. The default setting is 7 Lux. When the illumination volume less than configured volume, ICR will switch to night mode and live image switches to mono.
  • Page 30  Shutter Speed Select “ Auto” or “ Manual” to determine exposure time. The longer exposure time determines the longer time when light can enter. The image will have better brightness performance but easily delay. The shorter exposure time determines the shorter time when light can enter.
  • Page 31  Power Line Frequency Select the power line frequency (50 Hz or 60 Hz) used at the location of the network camera. Selecting the wrong frequency may cause image flicker if the product is used in fluorescent light environments. When using 50 Hz, the maximum frame rate is limited to 25 fps.

  • Page 32: Video Setting

    4.1.2 Video Setting The network camera provide multiple video streaming with different resolutions, frame rates and bitrates simultaneously. For example, the network camera can transmit the video based on 1920x1080 resolution for recording, in the mean time, also can provide the video to VMS or NVR based on D1 resolution for live view, and also can provide the video to mobile based on CIF resolution.

  • Page 33: Audio

     Resolution For configuring video resolution, the higher the resolution, the better image quality, the bigger image size, the available resolution range is from 176x768 to 960x480.  Frame rate Select the frame rate from drop-down menu from 1~30 fps. Set a higher frame rate for smoother video quality.
  • Page 34 4.1.3 Audio  Duplex Mode Select full duplex or half duplex mode, default setting is full duplex. Select duplex mode depending on the environment. Half duplex mode is suggested to be selected for avoiding echo occurs; however, the mode cannot support two way audio. ...

  • Page 35: Osd Setting

    4.1.4 OSD Setting  Display Enable date /time or text for displaying on the live-view screen  Tile Create a name that will be displayed on the screen of the live video.  Background Color Select OSD background color in drop-down menu: White, Black, Red, Green, Blue and Yellow ...

  • Page 36: Privacy Mask

    Date/ Time Text Title Text Color Background Color 4.1.5 Privacy Mask A privacy mask is an area of solid color that prohibits users from viewing parts of the monitored area. Each Channel have three privacy masks area can be configured. Privacy masks configured on each channel will be displayed on the screen.

  • Page 37: Network Setting

    4.2 Network Setting 4.2.1 General Setting Three configuration types are available for wired network connection: STATIC, DHCP  IP Address Mode Address  Static IP  MAC Address MAC Address of device NIC is displayed  IP Address Display and modify device IP address. ...
  • Page 38  IP Address Mode Address  Automatic (DHCP)  If DHCP server is on LAN and you want to allocate Dynamic IP address, use DHCP.  Click [Save].  Reboot will be automatically triggered after clicking [Save]. The page will be refreshed automatically and return to the initial login page.

  • Page 39: Wireless Setting

    4.2.2 Wireless Setting The network camera can connect to network by build-in wireless card (support 2.4G802.11.b/g/n ). This device doesn't support 5G wireless Access point The status of wireless networks list is the result of the network scan and provides the following information: - 39 -...
  • Page 40  Channel 14 available channels of wireless standard 802.11, the value is from 1 to 14.  SSID SSID of wireless AP  Network Mode BSS network modes: Ad-Hoc and Infrastructure.  Signal Strength Signal strength of wireless AP, value is from 1 to 100. Higher value stands for the stronger signal;...
  • Page 41  WLAN Enable Enable wireless network function  WLAN Scan Click the “scan” button for surveying the local area for available wireless networks Double click the selected wireless list of AP, the following infos will be automatically displayed on wireless configuration (except for PassPhrase). And the user can select by the drop-down menu accordingly.

  • Page 42: Wps

    4.2.3 WPS WPS means Wi-Fi Protected Setup. It mainly used for easy set up wireless network connectivity and encryption configuration by pairing WPS function between network camera and wireless AP/router. Select enable or disable to determine WPS status. The network camera provide two WPS authentication methods: ...

  • Page 43: Pppoe

    4.2.4 PPPoE  PPPoE Enable  PPPoE is used in case network supports PPPoE like xDSL  Request ISP [Internet Service Provider] for PPPoE Username / Password  Authentication Select the ISP PPPoE connection authentication, RAP or CHAP, before PPPoE connection. CHAP authentication has encryption function, will be more secure than PAP;...
  • Page 44  RTSP URL You can use VLC player to view RTSP streaming. Follow the steps below to view video streaming: (1) Launch the VLC player (2) Select MediaOpen Network Stream A URL dialog box will pop up (3) he address format is rtsp://<ip address>/<RTSP streaming access name for stream1 or stream2>.

  • Page 45: Http Setting

    4.2.6 HTTP Setting  Web Port (HyperText Transfer Protocol) - This protocol allows for TCP protocol quality without having to open specific ports for streaming. Users inside a firewall can utilize this protocol to allow streaming data through. Setup device web port number, default is 80. To change to another port number, take 8080 for instance, set hyperlink format as below: http://192.168.100.100:8080 Do not duplicate web port with advanced ports.
  • Page 46  Create and install certificate method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.There are two ways to create and install a certificate Create self-signed certificate manually (1) Click “Enable” to enable HTTPS service. (2) Click Create certificate to generate a certificate..
  • Page 47 (6) Enter the User name and Password of the device. (7) Click “Certificate Error” on the top right corner of the window to view the certificate (8) Click “Install Certificate” and follow the steps to finish the installation - 47 -...

  • Page 48: Ddns

    4.2.7 DDNS DDNS links a domain name to an IP address, allowing users to easily access their camera even with a changing IP address. DDNS is a service that allows your network camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name. Network camera are compatible with two DDNS service providers (1) DynDNS, (2)dhs (1) Check “Enable”...
  • Page 49  NAT Traversal To access the network camera from the Internet, select this option to allow the network camera to open ports on the router automatically so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP™ and it is activated. Please follow the steps below to set a NAT Traversal: (1) Select Traversal mode in the drop-down menu.
  • Page 50 (4) Enter the Traversal IP address and External Port on the web to confirm the video streaming. (5) Enter the RTSP URL with traversal IP address and external Port on the VLC to confirm the video streaming. - 50 -...

  • Page 51: Onvif

    4.2.9 Onvif ONVIF (Open Network Video Interface Forum) is a global interface standard that makes it easier for end users, integrators, consultants ,and manufacturers to take advantage of the possibilities offered by network video technology.  Enable : Enable the Onvif function to be compatible with NVR, VMS, CMS and relate software by onvif.

  • Page 52: Security

    4.3 Security 4.3.1 User Management  Change Password Enter the original password and new password, click on “change account” button to finish password change. Password of operator and guest accounts are not changeable, if user wants to change the password of operator and guest accounts, please login as administrator, and delete operator or guest account, and create new accounts.

  • Page 53: Ip Address Filter

    Admin is unique. Admin can create operator and viewer level users. Operator and guest level users have no right to add user.  User List List all users in the table. Click on “Delete” button to delete user.  User Security Level System provides three levels users;...

  • Page 54: Event

    4.4 Event When an event (such as unauthorized movement) occurs, the camera can be scheduled to perform certain actions. An Trigger is a set of parameters that defines these actions. As illustrated on the right, an event can be triggered by many sources, such as motion detection or external digital input devices.

  • Page 55: Event Setting

    4.4.1 Event Setting Click Add to open the Event setting page. On this page, you can arrange three elements -- Trigger, Schedule, and Action to set an event. A total of 3 event settings can be configured.  Event Name : Enter a name for the event setting. ...
  • Page 56 shown below. ◎ Motion detection : Select M1, M2, or M3 of normal part to enable motion detection event trigger. M1 is Motion Area 1、M2 is Motion Area 2、M3 is Motion Area 3. Please configure motion detection setting before event trigger setting. ◎...
  • Page 57  Action: Select the Actions that will occur when the event is triggered. There are four choices of server types available: Digital Output, FTP ,SMTP(E-mail) ,and Storage Device(SD Card & USB disk storage). Select the item to display the detailed configuration options.

  • Page 58: Motion Detection

    4.4.2 Motion Detection Motion can be detected by measuring changes in the speed or vector of an object or objects in the monitored area. This section explains how to configure the network camera to enable motion detection.  Configuring Motion Detection: Use this setting to enable and define the motion detection window.

  • Page 59: Digital I/O

    4.4.3 Digital I/O The DI socket allows the video server to receive input from an external device. The external device should have the ability to drive voltage on the connected DI wire to the triggering voltage level in order to notify the IP camera of any event of interest. The network camera will then process the event notification according to the specific event rules ...

  • Page 60: Event Server

    4.5 Event Server Use the tools in this section to specify what type of notification will be sent when an event occurs. The network camera can send buffered image to an FTP server, Email. 4.5.1 FTP Setting  Server address: Enter the domain name or IP address of the FTP server ...

  • Page 61: Media Setting

     Server name: Enter the server name  Server email address: Enter the email address of the sender  Server address: Enter the domain name or IP address of the email server  User name: Enter the user name of the email account if necessary ...

  • Page 62: Record

    4.6 Record 4.6.1 Recording Setting Configure it for recording video by schedule and network failure, which are both saved in SD Card.  Name: Enter a Recording name.  Source: Select stream for the recording source. only stream 1 (profile 1) available in current stage ...
  • Page 63  Destination: Select SD card to store the recorded videos.  Max File length: This determines the length of each recorded video time, applicable from 1 to 6 minutes.  Folder Format: Folder of video recording format, Date And Time or Recording Name. ...

  • Page 64: Storage Device

    4.6.2 Storage Device Network camera support SD card for local storage. It is suggested that the SD Card format as FAT32 system when using for the first time.  Current Storage: Display the storage information of SD Card.  Over Write: Check this item if you want to enable cyclic recording. When recording uses up all capacity, the oldest file will be overwritten by the latest file.
  • Page 65  Mount: If network camera cannot detect SD card , please click Mount bottom connect to network camera  UnMount: If taking off SD card is needed during recording, please click UnMount bottom take off SD card from network camera. The user may need to install Windows Media Player or QuickTime to play the video clips..

  • Page 66: System

    4.7 System 4.7.1 Device information This page will display the device status information, string field displayed information includes the configuration of the system, LAN, PPPoE, Web Port, DDNS, UPnP, Access Name for Stream. - 66 -...

  • Page 67: Time Setting

    4.7.2 Time setting  Daylight Saving Time  DST: Enable this item to activate day light saving function.  Start Date: Enter the start date of DST, the format should be: mm/dd.  Start Time: Enter the start time of DST, the format should be: mm/dd. ...

  • Page 68: Logs

     NTP Server: Assign the IP address or domain name of the time-server. Network camera provide two NTP server configuration charts. Network camera will synchronize the 1 NTP server by default. If the 1 NTP server is invalid, network camera will synchronize the 2 NTP server.
  • Page 69 Follow the steps below to set up the remote log: 1. Click to enable remote log and enter the IP address of the remote server. 2. Enter the port number of the remote server 3. When completed, click Save to enable the setting ...

  • Page 70: Maintenance

     System Level: System operation or device process relate information. Critical: Device driver init fail, thread create fail etc Warning: Device no response, process socket create fail etc Information: Event on/off, add or delete event, ptz operation 4.7.4 Maintenance This chapter explains how to restore the network camera to factory default, upgrade firmware, version, etc.

  • Page 71: Appendix A - 3Gpp On Iphone

    Appendix A – 3GPP on iPhone ※ IP cameras provide free bundled APP for live viewing, the steps as follows: (1) Please click on the main screen (2) Click on "Search" icon and search for『SecuCON Mobile』 。 of the App Store icon。 (3) Download and install it in your iphone (4) Click on Mobile icon - 71 -...
  • Page 72 (5) Click on【+】button to add IP cameras (6) Configure IP address, port number (default 554), username, and password of IP camera and click on【Save】button - 72 -...
  • Page 73 (7) Click on the configured IP camera (8) Live view IP camera ※NOTE: APP captures the 2nd stream of IP camera. For more smooth video quality, the suggested configuration is that the resolution is 640x480, bitrate 1M, and frame rate 30fps. - 73 -...

  • Page 74: Appendix B - 3Gpp On Android

    Appendix B – 3GPP on Android ※ IP cameras provide free bundled APP for live viewing, the steps as follows: (1) Please click on the main screen (2) Click on "Search" icon and of the Android Market icon. search for『SecuCON Mobile』 。 (3) Download and install it in your iphone (4) Click on Mobile icon - 74 -...
  • Page 75 (5) Click on【+】button to add IP cameras. (6) Configure IP address, port number (default 554), username, and password of IP camera and click on【Save】button. - 75 -...
  • Page 76 (7) Click on the configured IP camera. (8) Live view IP camera. ※NOTE: APP captures the 2nd stream of IP camera. For more smooth video quality, the suggested configuration is that the resolution is 640x480, bitrate 1M, and frame rate 30fps. - 76 -...

  • Page 77: Appendix C -Specifications

    Appendix C –Specifications Model No. RYK-IPCB021W Sensor 1/4” Progressive CMOS 1 Mega Resolution Picture Elements 1280 x 720 Frame Rates 30fps Shutter Speed Automatic, Manual (1/7.5 ~ 1/10000 sec) White Balance Automatic, ATW, Outdoor, Indoor, Lamp IMAGE Minimum Illumination 1Lux @ F2.0 (Color), 0 Lux with IR...
  • Page 78 Live Viewing User Wireless Yes (802.11 b/g/n) Network Storage VMS, SD Card Network Fail Recording, SD Card Schedule Recording Applications Live Viewing IE, VMS, Mobile App (iOS, Android) SD Card Slot Micro SD Card (Support class 10 above) Alarm 1 x DI, 1 x DO(Dry Contact) (Option) Integrate Document CGI /SDK DC5V / 1.2A...
  • Page 79 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
