ACTAtek 3 Quick Installation

BIOMETRIC SMARTCARD & INTERNET APPLIANCE TECHNOLOGIES
ACTAtek
Access Control
Before Beginning
Power Requirement
The ACTAtek Series requires a 12 V DC /2.25A(or above) Switching
Power Supply. Please
DO NOT
other devices, including Door Lock. Unstable power supply
would damage the ACTAtek seriously.
Warning: Modification of Power Supply/DC Jack or Extension
of the DC Cord of Power Supply may affect the stability of
ACTAtek.
Deciding where to install
ACTAtek is a wall-mountable unit with a very small footprint,
and can be conveniently installed anywhere.
access control system, the product should be installed close to the
door, so the user can open the door within the timeout period after
authentication (8 sec. by default).
Installing Your ACTAtek

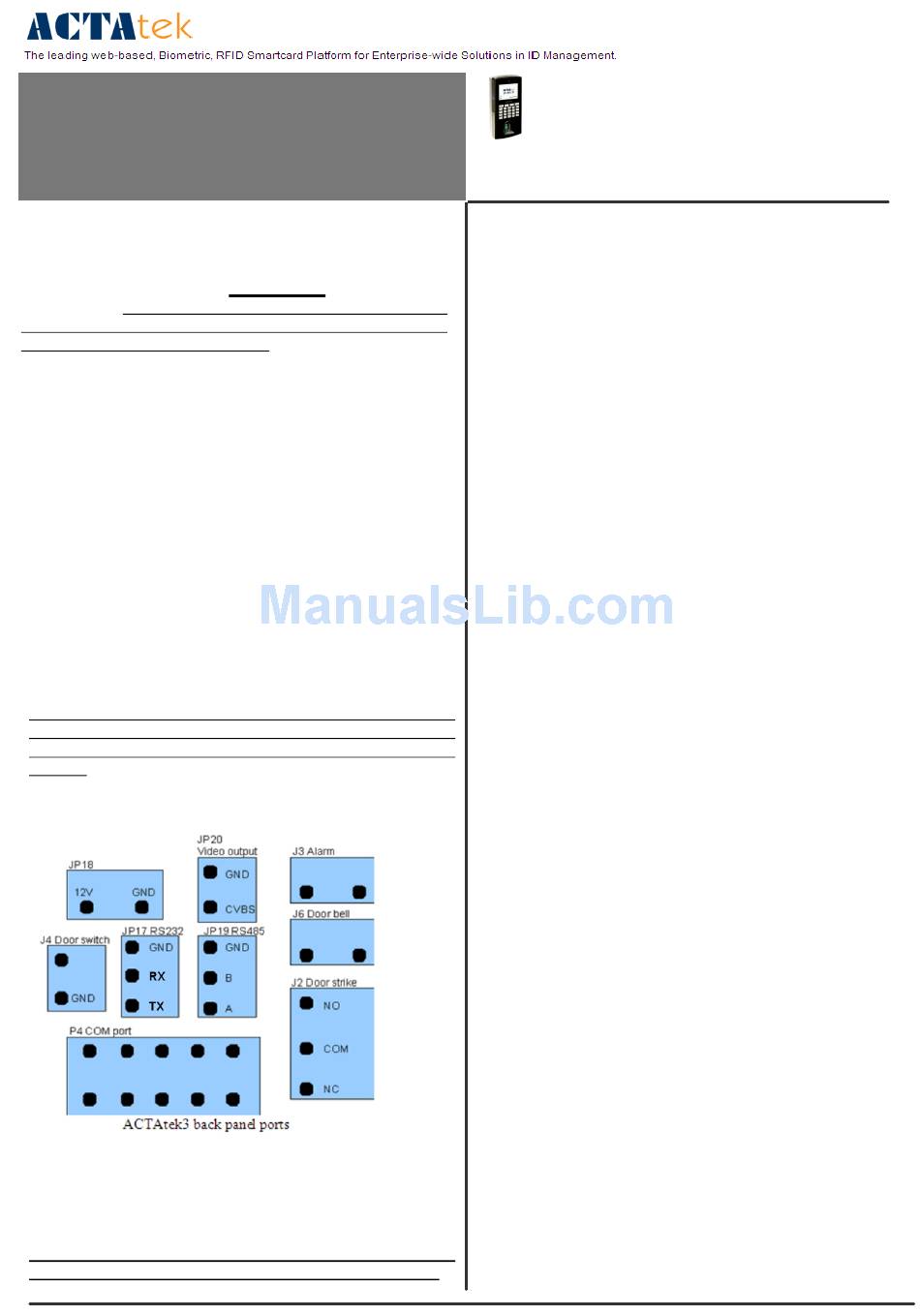

Power & External Controls Connections
ACTAtek provides easy-access terminals for connections to
external controls, including Door Strikes, Door
Release Switch, and External Alarm.
If the device works as Access Control System, an additional
diode is required, to avoid the Back EMF from the Door Lock,
which may damage the ACTAtek unit. Refer to the diagram
attached.
Power (12V DC):
DC J ack +12VDC
Door Switch
Terminals A & B
An optional door switch (Door Release Button) can be connected
to these terminals. It is used to open the door from the inside of
the business premises, or from the reception area.
It is highly suggested to connect the Door Release Button to
Electric Lock directly, and leave these terminals disconnect.
,

Embedded Web Server

System
3
Time Attendance
&
share the power supply with any
If used as an
Bell

Quick Installation

This sheet will guide you through the basic steps needed to install the
ACTAtek and connect with your network. If you have any problems
during installation, refer to the manual in CD for more information.
Door Strike
Terminals NO - COM
Terminals NC - COM
These terminals are connected directly to the internal relay,
which rating at 30V/5A. If the door strike rates within this
current limit, it can be connected to these terminals directly. If
the system is used solely for Time Attendance, leave these
terminals disconnect.
Alarm
Terminals A & B
This is used for connecting an optional external alarm. If in the
case of a forced opening during operation (such as a break-in),
an internal sensor will trigger this connection, and it will
sound the external alarm.
Door Bell
Connect both ends of the door bell switch to COM and NO.
Door bell will ring once the door bell button (Top right corner of
the keypads) is pressed.
Video Output
The camera of ACTAtek is able to output CVBS signal.i.e. TV out
, Door

Network Connections

You can connect ACTAtek unit directly to your corporate
computer network via standard RJ-45 cabling & TCP/IP
protocols. By connecting it to the network, you can manage &
monitor the unit via any standard Web Browser (such as
Microsoft Internet Explorer or
First, make sure the TCP/IP protocols have been installed and
configured correctly on the PC or Notebook which you want to
use to access ACTAtek.
Setting the Network & TCP/IP address
Press "Menu", enter "A999" (Super admin ID), then press "1"
(Default password), select the "IP Setting" icon.
Enter IP address
Enter Subnet mask
Enter Default Gateway
Enter DNS (if required)
Or : Enable DHCP (if required)
Open your PC's web browser and key in the ACTAtek's IP
address into the browser's address bar.
Press "Enter" ACTAtek's web interface should be appearing
in the browser windows.
* If you have any problems during above steps, please consult
your network administrator.
version 1.2 (Nov. 2011)
Normal Open (Internal Relay)
Normal Close (Internal Relay)
Tamper Switch for External Alarm
Mozilla Firefox)
Press "Enter" to continue.
Press "Enter" to continue.
Press "Enter" to continue.
Press "Enter" to continue.
Press "Enter" to continue.
