Sunset Healthcare NEB200 Instructions

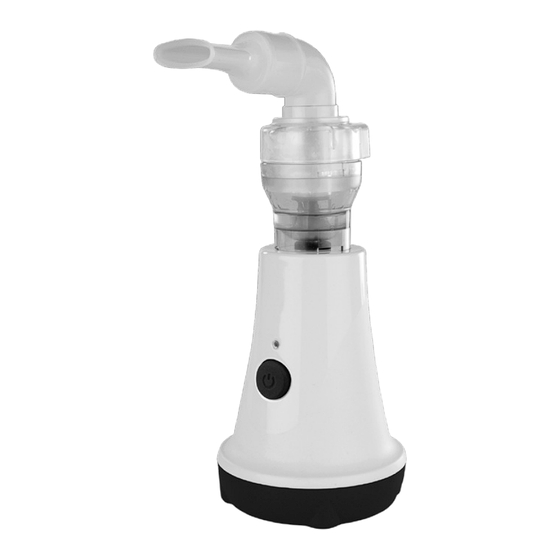

NEB200
Handheld Compressor Nebulizer
INSTRUCTIONS
Thank you for purchasing the Sunset NEB200 Handheld Compressor Nebulizer. These instructions
provide important information to help you use the system properly. Before using this product,
please read the following contents thoroughly and carefully.
If you have other questions regarding this product, please contact the place of purchase.

INTENDED USE

The NEB200 Handheld Compressor Nebulizer is designed to provide a compressed air source to
aerosolize physician-prescribed liquid medication when used in combination with the packaged
Nebulizer kit, except for Pentamidine. The packaged Nebulizer kit is intended for single patient use.
The NEB200 Handheld Compressor Nebulizer is intended for use with children and adult patients in
the homecare settings.

ITEMS SUPPLIED AND PACKAGING

Before you start to use the Handheld Compressor Nebulizer, please check if the following items are
included in the package:
1 compressor
1.
1 mouthpiece *
2.
1 L-PIPE
3.
~
2.
1 cap
4.
1 spray nozzle
nebulizer kit
5.
1 medicine container
6.
1 air hose
7.
* NOTE
• For good hygiene, please use the mouthpiece, mask and nebulizer kit for one specific
individual only and do not exchange them.
• The lifetime of the reusable parts are as follows. Frequent use of the product may shorten the lifetime.
Air hose: 1 year
Compressor: 3 years

FEATURES

Does not use heat so the medicine does not incur heat damage
Low power consumption
Small nebulization particle size – 1~5 microns
Convenient design – compact and lightweight, ideal for travelling
Short treatment time with high nebulization rate

DESCRIPTIONS OF PARTS

Air Opening
Compressor
Indicator
Power Switch
Socket of Adapter
Battery
Compartment
Power Adapter
8.
Instructions
Mask
9.
7.
L-PIPE
3
Cap
4.
Spray Nozzle
5.
Medicine Container
6.
7. Air Hose
8. Power Adapter

SAFETY PRECAUTIONS

● Use the equipment only for its intended use as described in these instructions. Use only
attachments that are recommended by the manufacturer.
● Use the equipment only with medications under the instructions of your physician.
● Do not use the equipment if it has any damaged parts, or it has fallen into water.
● To use the equipment for the first time, after storing it for an extended period, and after every
use, clean all necessary parts as described in the cleaning instructions.
● Do not use while bathing.
● The unit should not be left unattended while plugged in or turned on.
● Keep the unit out of reach of small unsupervised children.
● Keep the small parts detached from the device away from children, as they may result in
choking, inhaling, or swallowing.
● Do not try to modify the device.
● Do not place the device in liquid, nor put it where it could fall into liquid. If the device becomes
wet, unplug the device before touching it.
● Do not use the device if it is not working properly, or if it has incurred any damage.
● Do not drop the nebulizer or subject it to impact.
● Do not expose the nebulizer to direct sunlight, high temperatures or humidity.
● The nebulizer is NOT suitable for use in anaesthetic breathing systems or lung ventilator
breathing systems.

IMPORTANT INFORMATION ABOUT INHALATION THERAPY

The device is ideally suitable for inhalation at home or when travelling. It guarantees highly
effective, fast-acting inhalation treatment for patients of of all ages.
Carry out inhalation in a quiet and relaxed state, and inhale slowly and deeply, so that the
medication can penetrate to the fine, deep bronchial tubes. Exhale normally.

OPERATING INSTRUCTIONS

Important Information Before Use
● Ensure that all parts are clean and dry.
● Before starting treatment, talk to your physician about the duration, dosage and frequency of
use of the nebulizer.
● The device is designed for an intermittent use: 30 minutes ON / 30 minutes OFF.
● Do not remove the medication container cover from the unit during nebulization.
● Test the nebulizer to make sure it is functioning correctly by pouring drinking water (2 to 5 ml)
into the medicine container. Press the power switch to turn on the device and to check if it is
working properly. Turn off the unit, and discard any remaining water. Then you may begin
actual treatment by following medication instructions.
● The device does not heat the medication container under operation. Please follow the
recommended volume of medicine capacity.
Unit Assembly and Usage
1. Correctly position the spray nozzle inside the medicine container.
2. Slowly pour the prescribed medication into the medicine container. The maximum capacity of the
container is 6 ml.
Please note that the medication must not exceed this maximum level marking (6 ml).
3. Correctly fit the polished area on cap and medicine container by slightly closing and turning
clockwise. Make sure both are closed well until the lines marked on the cap and medicine
container are in alignment. Connect the mouthpiece / mask (optional) and L-PIPE, and then
attach to the top of the cap.
polished area
Mouthpiece
2.
Mask
9.
marked line
