User Manual for WiFi Module
Applies to model WiFi Module # WFWM
Effort has been made to insure compatibility of this device with standard home networking equipment and with
iOS and Android operating systems. However, due to the variety of hardware and software found in home
networks, compatibility is not assured with your particular network. Please read the manual carefully before
installing or connecting your WFWM WiFi adapter. (It is recommended to save a copy of these instructions for
future reference.)
For Controlling WiFi Compatible Wall-Mounted
BLURIDGE Ductless Mini-Split HVAC Equipment
Document Version July 2018
Page 1 of 15
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Blueridge OSK102
- Page 1 User Manual for WiFi Module For Controlling WiFi Compatible Wall-Mounted BLURIDGE Ductless Mini-Split HVAC Equipment Applies to model WiFi Module # WFWM Document Version July 2018 Effort has been made to insure compatibility of this device with standard home networking equipment and with iOS and Android operating systems.
- Page 2 AVOID FRUSTRATION - READ THIS WHOA! When setting up this device, you may think it is broken when it is not. Why? Because if the power is turned on to the mini-split equipment either for the first time, or by powering it off then on again to resolve a network or other setup issue, the equipment and related software will not operate for a minimum of 15 minutes.
- Page 3 1. Specifications Model: WFWM (OSK102) Standard: IEEE 802.11b/g/n Antenna Type: External omnidirectional Antenna Frequency: WIFI – 2.4G Maximum Transmitted Power: 15 dBm Max Operation Temperature: 32 Deg F ~ 133 Deg F Operation Humidity: 10% - 85% Power Input: DC 5V/300mA 2.
- Page 4 Nethome Plus for Android Nethome Plus for iOS Note! These QR codes are only to get Nethome Plus onto your iOS or Android device. Please do not confuse these for the QR code on the WiFi adapter, used for setup later. 4.

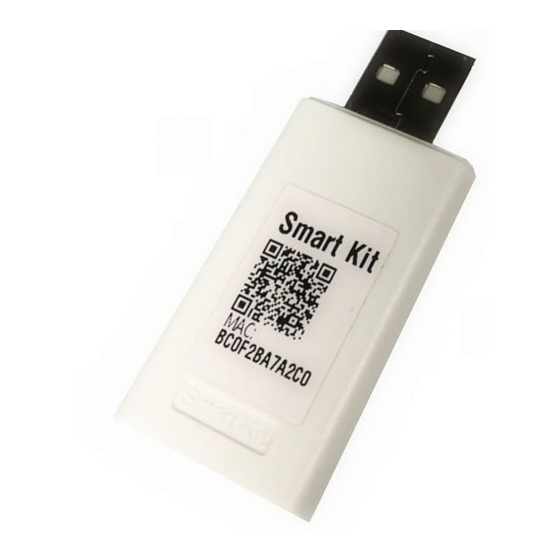

- Page 5 • Open the lid of your air handler and insert the WiFi adapter as shown. You should feel it click into place. Note: The WFWM WiFi box contains a QR code sticker to assist in setup. We suggest you apply it to the side of the air hander as shown. 5.
- Page 6 • Locate Nethome Plus in your Apps and tap to launch. Page 6 of 15...
- Page 7 • Tap Create Account in the lower right of the screen. Page 7 of 15...
- Page 8 • Enter your email address and create a password. Then click Registration. • Check your email. Click the link in your email to complete registration. Page 8 of 15...
- Page 9 6. Getting Connected • Start with the unit powered down. Using the AC remote, power up the unit and press the “LED” button 7 times until the wall unit displays “AP”. Note: While in AP (programming) mode, the handheld remote control will not function. The unit automatically reverts to normal operation after 8 minutes, or after powering the unit off, then back on.
- Page 10 • On your iOS or Android device, tap “+ Add Device”. • On the next screen you have the option of using a QR code or configuring manually. o To use the QR code, tap ‘Scan QR code’ then hold the reader over the QR code in the paper manual that came with the WiFi adapter, or you can use the sticker that you removed from the WiFi adapter and placed on the side of the unit (see step 4.)
- Page 11 • The prompts will take you to your device’s WiFi settings where you will see “net_ac_XXXX” as an available network. Tap “net_ac_XXXX” to (temporarily) join and enter password “12345678”. NOTE: Joining this temporary network is part of the setup process and will not result in permanent changes. •...
- Page 12 • Tap OK or Join and you will see the configuration screen as shown below. • Once the configuration process is complete, you will see a Success message, and you will see the device in the list above “+ Add Device”. NOTE: Try swiping down to refresh the list if it does not appear.
- Page 13 7. Using the App • Tap the device you wish to control from the home screen. • From this screen, you can power the unit on and off, set operating mode (cool, dry, heat, etc.), control fan speed and toggle between Celsius and Fahrenheit. To change thermostat setting, drag your finger around the circle displaying temperature until you reach your desired setting.
- Page 14 • You can program the system to turn itself on and off with the Timer function. Toggle start time, enter time settings, and select repeat as shown below. Repeat the process for stop times. • You can program the system for overnight performance to create the ideal sleeping environment and energy use.
- Page 15 15- 30 minutes. Try swiping down to refresh the list, and if no result repeat the entire installation process. Thank you for your purchase of a BLUERIDGE ductless mini-split system and WiFi app controller! We hope this equipment and the app will provide you and yours with many years of comfortable enjoyment of your space.
