Summary of Contents for Belgard ELEMENTS BRIGHTON
- Page 1 ELEMENTS OUTDOOR LIVING ™ BRIGHTON FIREPLACE INSTALLATION MANUAL BELGARD.COM...

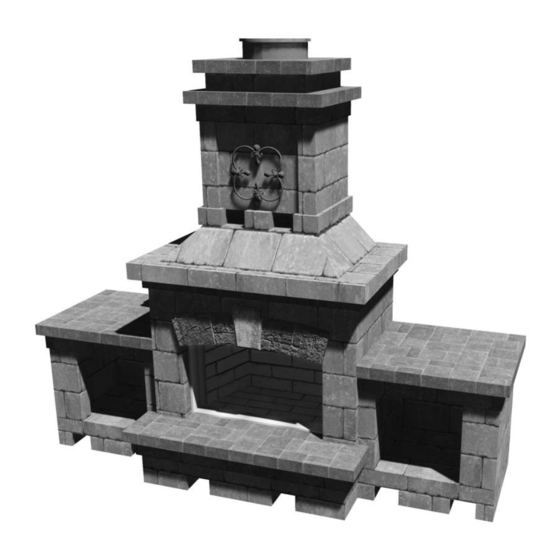

- Page 2 OVERVIEW The Brighton Fireplace from the Belgard Elements Collection consists of two large pieces: a base ™ and a top. The units are shipped separately on two pallets. Shipped in the base unit you will find filler blocks for all fork slots; a total of eight plugs are shipped with the unit.
- Page 3 WHAT’S INCLUDED The major components for the fireplace are shown in Figures 1 and 2. Figure 1 shows the top unit of the fireplace. Inside the unit, you will find pipe and spark arestor (Figure 1.A), set aside for later install. Figure 2 shows the base unit of the fireplace. Figure 2 also shows the filler blocks or “plugs”...
- Page 4 SAFETY The following recommendations should be carefully observed as part of any Elements Fireplace ™ assembly. 1. DO read and follow the Brighton Fireplace Installation Manual. 2. DO NOT climb on top of the base or top unit of the fireplace. 3.
- Page 5 GRAVEL BASE A properly constructed graded aggregate base is a minimum requirement for placement of your unit. The sketches below show the minimum excavation area for different unit assemblies in a stand- alone configuration; note that the excavation area extends one foot beyond the actual footprint of the unit assembly on all sides.
- Page 6 INSTALLING THE FIREPLACE The first step after a gravel base has been established is to place the base unit. *Remember the first 4" are always buried. BASE UNIT After the base unit has been placed you can now put the top unit into place. SPARK TOP UNIT ARRESTOR...
- Page 7 OPTIONAL WOOD BOX SET An optional wood box set or hearth could be installed at this point. The wood box set will tuck behind the two front side keystones, while the hearth will sit flush and centered to the front of the fireplace.
- Page 8 INSTALLING “PLUGS” With every Belgard Elements Fireplace base and top you will find a set of “plugs” that are used to ™ fill the fork slots on the units. Push the plugs in slowly until they are flush with the blocks next to them.
- Page 9 CONCRETE PAD INSTALL FIGURE A - Before installing fireplace, please review local building code requirements in your area. Fireplaces typically have a minimum setback from all buildings. It may also necessary to construct a concrete pad to set the unit on. Before construction of the concrete pad it is necessary to establish Finish Grade height first to ensure the first course of the unit is buried 4".
- Page 10 NOTES - 9 -...
- Page 11 NOTES BELGARD.com | EXPOCRETE.com Copyright 2018 Oldcastle - Expocrete. All Rights Reserved. BEL18-001-BELGARD ELEMENTS BRIGHTON FIREPLACE - 9 -...
