Summary of Contents for Venturer 9025

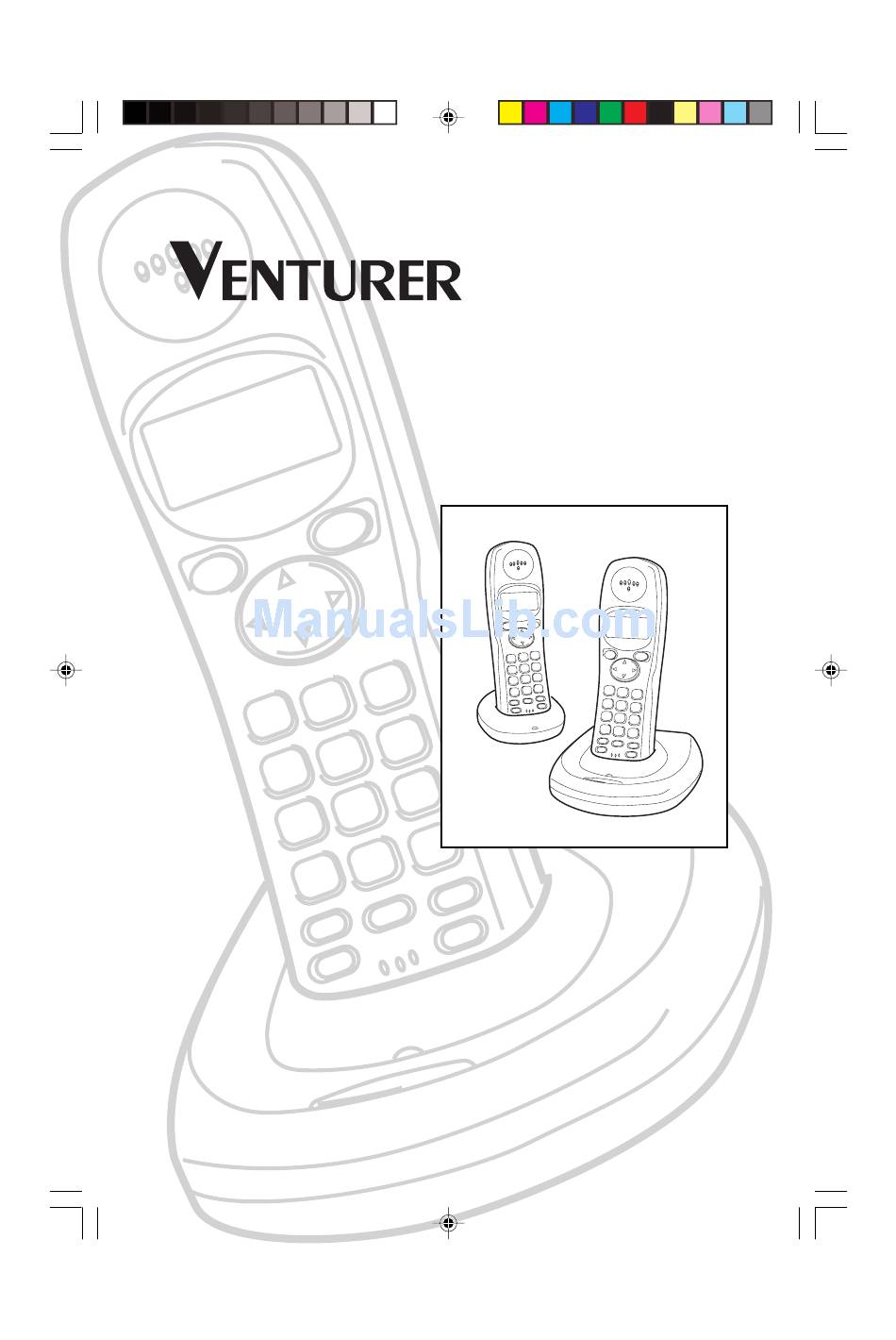

- Page 1 MODEL 9025 OWNER’S MANUAL 9025_ib_us2.p65 11/21/02, 12:11 PM...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........2 - 3 BATTERY CAUTIONARY INSTRUCTIONS ........... 3 IMPORTANT ELECTRICAL CONSIDERATIONS ......4 - 5 Telephone line problems • FCC Part 15 regulation • FCC Part 68 regulation • Applicable for coin or pay phone only INTRODUCTION .................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please take a few moments to read the following instructions for your safety and to ensure that you get the maximum benefit from your product. When using your telephone equipment, basic safety precautions should always be fol- lowed to reduce the risk of fire, electric shock, and injury to persons, including the following : 1) Read and understand all instructions. -
Page 4: Battery Cautionary Instructions
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the product to normal operation. e) If the product has been dropped of the cabinet has been damaged. -
Page 5: Important Electrical Considerations
IMPORTANT ELECTRICAL CONSIDERATIONS Unplug all electrical appliances when you know an electrical storm is approaching. Lighting an pass through your household wiring and damage any device connected to it. This telephone is no exception. Warning : Please do not attempt to unplug any appliance during an electrical storm. Caution : Changes or modifications to this product not expressly approved,or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product as well as void they product’s... -
Page 6: Applicable For Coin Or Pay Phone Only
IMPORTANT ELECTRICAL CONSIDERATIONS An applicable certification jacks Universal Service Order Codes (USOC) for the equipment is provided (i.e., RJ11C) in the packaging with each piece of approved terminal equipment. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. -
Page 7: Introduction
INTRODUCTION TELEPHONE FEATURES • Operating in 2400 MHz ~ 2483 MHz.(ISM band) with 45 Channels • Digital Frequency hopping technology • Up to 4 Handsets operate in one base. • Caller ID with call waiting function (Type II). • Speaker phone function in handset. •... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Connecting the AC Power Plug the AC adaptor jack into the back of the base unit and then plug the AC adaptor into a compatible wall socket. Connecting the Telephone Line Plug one end of the telephone line cord into the back of the base unit, and the other end into a standard telephone wall jack. -
Page 9: Location Of Controls
LOCATION OF CONTROLS HANDSET SECTION 1) Receiver 2) Off hook/YES key 3) Search key 4) Flash key 5) Memory key 6) Int/Mute key 7) LCD lens 8) On hook/No key 9) Dial keypad 10) Redial /Pause key 11) Caller ID key 12) Microphone 13) Speaker 14) Speaker key... -
Page 10: Using The Menu System
USING THE MENU SYSTEM The user interface has been designed with simplicity of operation in mind. Functions that are not available from the keyboard directly are found within a shallow menu structure. The menu is available from the default screen simply by pressing either of the ( arrow keys. -
Page 11: Telephone Operation
TELEPHONE OPERATION ANSWERING A CALL • Intercom – When the intercom is calling, display shows the identity (ID) number of the calling handset – The user answers the call by pressing YES and ends the call by pressing NO. – Pressing NO during ringing rejects the incoming call and both calling and called handsets return to standby state. -
Page 12: Telephone Operation
TELEPHONE OPERATION TRANSFERRING AN EXTERNAL CALL It is not possible to transfer internal calls from one internal extension to another - the users must redial. The facility to transfer an external call is described here. • Transferring to another handset If the user needs to transfer an outgoing or incoming call to another handset registered to the same base station, this is done using the INT key followed by the internal telephone number. -
Page 13: Memory Operation
MEMORY OPERATION ADDING A NEW ENTRY TO MEMORY – Key in the telephone numbers that to be stored. – Press MEM key to enter to save mode. – Enter the corresponding Name of the key in number. – Press the YES button to confirm and phone number would be saves into Phonebook. Particular points to note are: –... -
Page 14: Caller Id Operation
CALLER ID OPERATION VIEW CALL RECORDS – Press the CID key to go to the received call record. – Handset will show “CONNECTING TO BASE...”, then the received call(s) will be shows on display. – Press the scroll key 6/5 to check the next received records (if any). DIAL FROM CID RECORDS –... - Page 15 CALLER ID OPERATION DELETE CID RECORDS – Press the CID key to go to check the received call record. – Press the scroll key 6/5 to select the CID record that would like to be deleted then press YES to confirm. –...
-
Page 16: Telephone Setting
TELEPHONE SETTING CLOCK SETTING • Setting clock The clock is set by the user and can be viewed as 24 hour or 12 hour. The default format is factory set, but the user can then change to the alternative format if preferred. –... -
Page 17: Telephone Setting
TELEPHONE SETTING KEYPAD SETTING There are two user options for the keypad, 1. The Key tone can be used to indicate that a key has been pressed. This beep can be enabled or disabled. 2. The keypad can be locked to prevent unintended operation –... -
Page 18: Walkie-Talkie Function
WALKIE-TALKIE FUNCTION Handset could be set to walkie-talkie mode. In walkie-talkie mode, handset could communicate with other handset even the base is unavailable. • Enable walkie-talkie mode. – Press scroll keys 6/5 to select “W-TALKIE” and press YES to confirm. –... -
Page 19: Other Functions
OTHER FUNCTIONS AUTO ANSWER The auto answer function could be activated /deactivated by following procedure. – Press scroll keys 6/5 to select “ADVANCED” and press YES to confirm. – Press scroll keys 6/5 to select “AUTO” and press YES to confirm the selection. –... -
Page 20: Registration For Additional Handset
REGISTRATION FOR ADDITIONAL HANDSET The Base allows registering max. 4 handsets. The additional handset can be registered into Base as 3rd handset (H3) or 4th handset (H4). • In Base side: – Press and hold the page button in base for 5 seconds until base LED flashing. –... -
Page 21: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE In the event of your telephone NOT working or difficulty in opening, the following suggestion can be help you of solving the problem. Symptom Suggested Solution Base unit doesn't • Ensure the power adaptor is firmly plugged into work (Power "LED"...
