Cpu Installation - Humanscale CPU600 Installation Instructions

CPU600
Installation Instructions

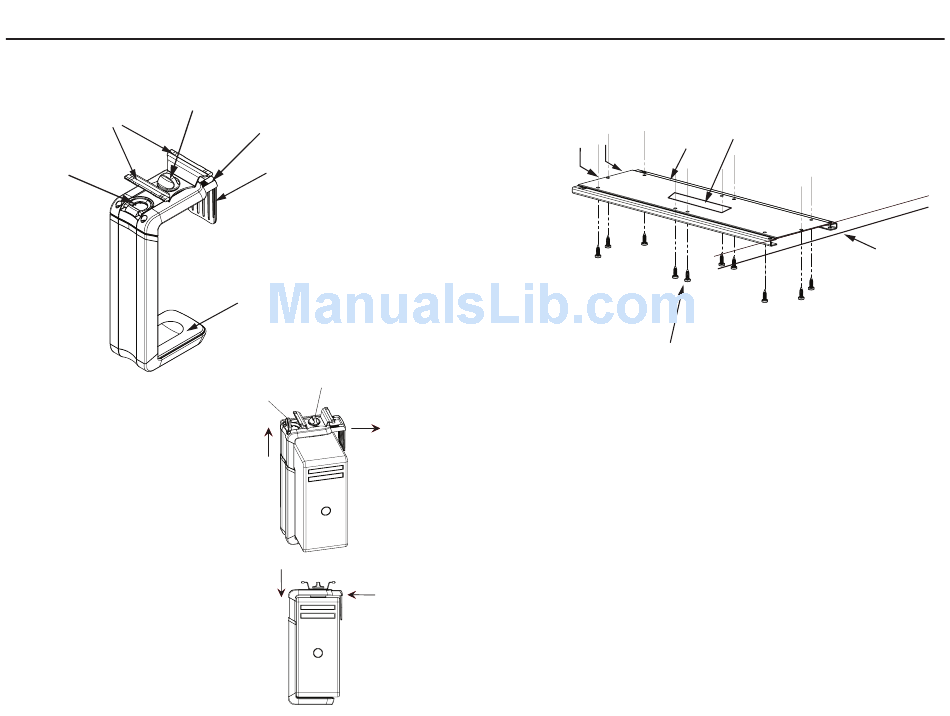

CPU Installation

Width Knob
Mounting Rails
Height Lock
Step 1:
Loosen Width Knob and slide Side
Bracket outward. Loosen Height Lock and
slide Upper Assembly to highest position.
Center CPU on the Base.
Step 2:
Lower Upper Assembly until it lightly touches
top of CPU. Tighten Height Lock. Push Side
Bracket inward until it fits tightly against
CPU. Center Mounting Rails above CPU.
Tighten Width Knob.
Upper Assembly
Side Bracket
Base
Width Knob
Height Lock
Track Installation
Mounting Tape
Track
Tabs
5/8" Long
Tapping Screws
Step 1:
Position track approximately 1/4" from edge of desk
with folded tabs facing away from desk edge. Using
Mounting Tape, affix Track to underside of desk.
Attach Track to desk using Tapping Screws.
Step 2:
Align Mounting Rails of the CPU600 with front edge of
Track and slide unit into Track.
1/4" back
from desk edge
Track Installation, continued on back
