Summary of Contents for Exadigm N501

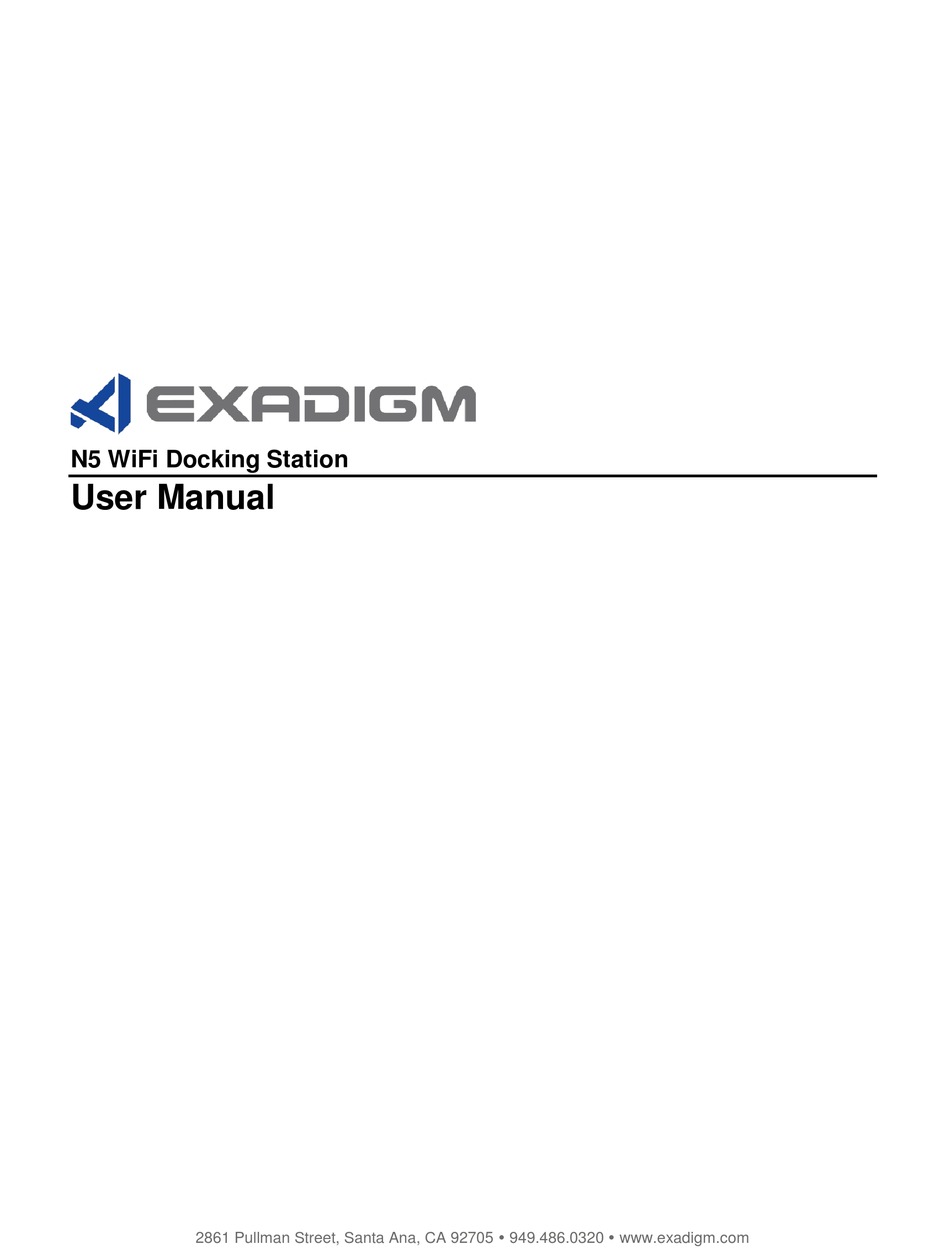

- Page 1 N5 WiFi Docking Station User Manual 2861 Pullman Street, Santa Ana, CA 92705 949.486.0320 www.exadigm.com...
-
Page 2: Table Of Contents
ABLES TO THE OCKING TATION ......................5 ONNECTING A EVICE TO CHARGING WITH THE DOCKING STATION ................... 6 ........................6 ERMINAL LACEMENT 4.0 CONFIGURING THE DOCKING STATION ..................7 ............................7 OGGING © 2017 ExaDigm, Inc. Page 2 of 10 Rev. 1/1117... -
Page 3: Docking Station Information
N5 Docking User Manual Docking Station Information Specifications: Model: N501 Input power: 5V, 2A Wi-Fi: 802.11 g/b/n Band: 2.4GHz Charging Charging connectors to N5 © 2017 ExaDigm, Inc. Page 3 of 10 Rev. 1/1117... -
Page 4: Connectors
(shown in Error! Reference source not found.), or the cables will affect charging. Once the cables are connected the status light will flash red/yellow indicating the connection to the Internet has been established. © 2017 ExaDigm, Inc. Page 4 of 10 Rev. 1/1117... -
Page 5: Connecting A Device To Wifi
2. Select the Settings icon. 3. Select WLAN section. 4. Turn on WLAN. 5. Select the SSID “NEXGOxxxx-POS”. For example, NEXGO30DC-POS. 6. Input password “nexgo300130”. 7. The device will now be connected via WiFi. © 2017 ExaDigm, Inc. Page 5 of 10 Rev. 1/1117... -
Page 6: Charging With The Docking Station
Charging with the Docking Station Terminal Placement Remove the protective film in the back of terminal. Protective film Place the terminal on the docking station and the charging light will illuminate. Charging Light © 2017 ExaDigm, Inc. Page 6 of 10 Rev. 1/1117... -
Page 7: Configuring The Docking Station
192.168.1.1. The default login password will be the same as the default password used to connect to the WiFi. Configuration Options Once logged in the system status information will display. © 2017 ExaDigm, Inc. Page 7 of 10 Rev. 1/1117... - Page 8 Status, WiFi_1 and WiFi_2 Password and Channel 4. System Information displays the Running Time, Local Time and Software Version 4.2.2 Internet Settings WAN Connection Type, Primary DNS and Secondary DNS settings. © 2017 ExaDigm, Inc. Page 8 of 10 Rev. 1/1117...
- Page 9 Channel, Mode, Bandwidth, AP Isolation, Enabling Wireless 1, Wireless 1 SSID, Wireless 1 Security Mode, Wireless 1 Password, Wireless 2 SSID, Wireless 2 Security Mode, and Wireless 2 Password settings. © 2017 ExaDigm, Inc. Page 9 of 10 Rev. 1/1117...
- Page 10 Allows addition of devices (MAC) to Whitelist. 4.2.6 System Tool Reboot the docking station, Restore Factory Default, Backup Configuration, Recover Configuration from a file, Update Firmware, and Change the device password. © 2017 ExaDigm, Inc. Page 10 of 10 Rev. 1/1117...
