Summary of Contents for Dome YR-5TT28D

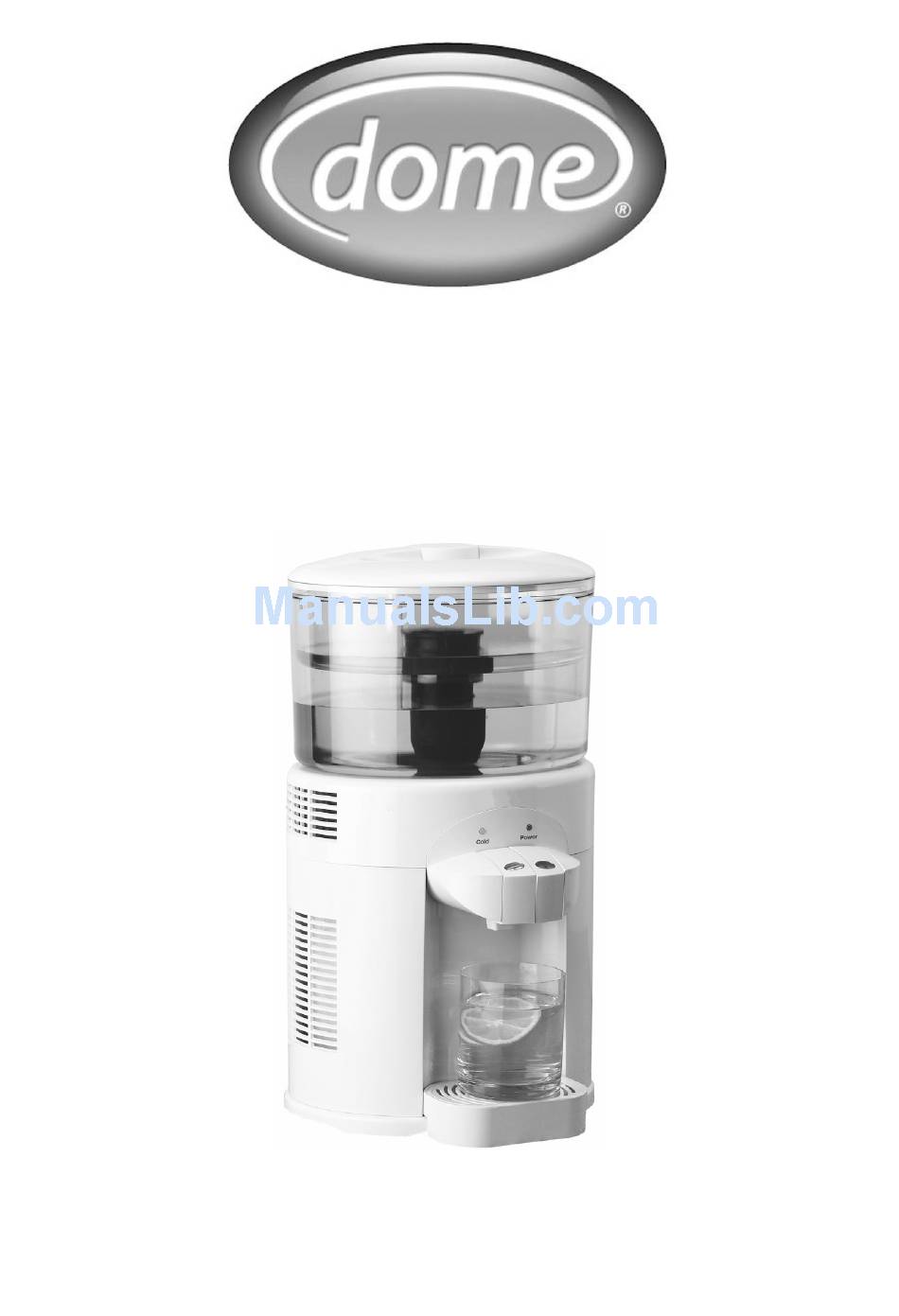

- Page 1 Bench Top Water Chiller with Filter User Manual Model Number: YR-5TT28D Item No.: 900106 Rev 1...
-
Page 2: Table Of Contents
Safety Instructions ............... 3 Components ................. 5 Cooling System ................6 Before First Use ................7 Instructions For Use ..............8 Water Float ................... 9 Care and Cleaning ..............10 Spare Parts ................. 10 Specification ................11 10 Troubleshooting ................. 11 10.1 Water will not flow through Tap/s............... -
Page 3: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: • Carefully read this instruction manual before using appliance. • Keep appliance out of reach of young children. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 • Unplug this apparatus during lightning storms or when unused for long periods of time. • When positioning the appliance, ensure that there is at least a 5cm clearance at the sides and a 10cm clearance at the back. This will allow for adequate ventilation. •...
-
Page 5: Components
2 Components On / Off Switch Date Indicator for Filter Replacement Located on the back of the unit Filter – Replaceable Upper Water Tank – Unfiltered Water 2.2L Base Water Tank – Filtered Water 2.2L Float Housing - Float Inside Ring Nut Indicator Lights Blue ON = Water Cooling. -
Page 6: Cooling System
3 Cooling System This Water Chiller unit does not use a compressor or chemical refrigerant for cooling (like as used in a typical fridge at home). It’s has a Thermoelectric Cooling (TEC) System instead. Thermoelectric Cooling (TEC) uses a Peltier effect to create a heat flux between the junctions of two different types of materials. -
Page 7: Before First Use
4 Before First Use • Wash and rinse out the plastic water tanks thoroughly before use. (Refer to Cleaning Section) Remove the filter from its packaging then fully cover and soak the filter in • cold clean water for 30 minutes and then rinse off under cold clean running tap water. -
Page 8: Instructions For Use
• Fill Upper water tank with clean cold water. • As a reminder of when to change and replace the filter, lift and turn the dial on the lid to the current month. The Filter Replacement month will show the second successive month from the start date. •... -
Page 9: Water Float
• For best performance, and depending on the water temperature, allow approximately 30 – 40 minutes for the water to chill before use. • When the water has reached the required temperature, the “Cold” indicator light will turn off indicating the water in the 600ml chiller tank has fully chilled. -
Page 10: Care And Cleaning
7 Care and Cleaning • Turn off and unplug the unit prior to cleaning. Note: When changing the filter it is also recommended to wash the water tanks and the Float Components. • Use warm water with mild detergent to clean the Water Tanks, Float components and lid then rinse and dry. -
Page 11: Specification
9 Specification Voltage: 220 – 240Va.c. 50Hz Wattage: Top Tank: 2.2 Litre Capacity Lower Tank: 2.2 Litre Capacity (with top tank fitted) Chiller Tank: 600ml 10 Troubleshooting 10.1 Water will not flow through Tap/s If the Upper and Lower water tanks are full of water and the Chilled Water tap is not dispensing any water when pressed down, there is probably an air bubble preventing the water flowing down. -
Page 12: Water Is Not Chilled
Fill a jug or large glass of water (at least 600ml) and while holding the Chilled Water button down, slowly pour the water directly into the top of the unit. (see below) The water will slowly drain into the main unit and fill the chiller tank inside. Continue pouring water into the top until water starts to come out of the spout under the Chilled Water button. -
Page 13: Filter Keeps Floating
10.4 Filter Keeps Floating Lay the filter on its side in a container and fully cover and soak the filter in cold clean water for 30 minutes to expel all the air inside fully. Should the filter continue to float, it could be that the rubber seal has twisted. -
Page 14: Guarantee
11 Guarantee WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. 1.1 H.E. Group Pty Ltd (“us” “we” or “our”) You are entitled to a replacement or refund for warrants this good for a full replacement or a major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
