ZigBoat Schuko ZB207 Owner's Manual

eng
Schuko Smart Plug
code: ZB207
OWNER MANUAL
Version 1.0
Product description
The ZigBoat™ Schuko Smart Plug is an
intelligent remote controlled adapter.
The ZigBoat™ Smart Plug allows the user to
instantly switch on and off electrical devices
remotely.
Precautions
• Do not remove the product label as it
contains important information.
• Avoid switching maximum loads frequently
on or off, in order to sustain a long life for the
Smart Plug .
• Be careful that no liquid gets into the Smart
Plug as it may damage the adapter.
Adding the sensor to the Gateway
NOTE: Make sure the Gateway is turned on
and configured correctly, for more details see
the Gateway owner manual.

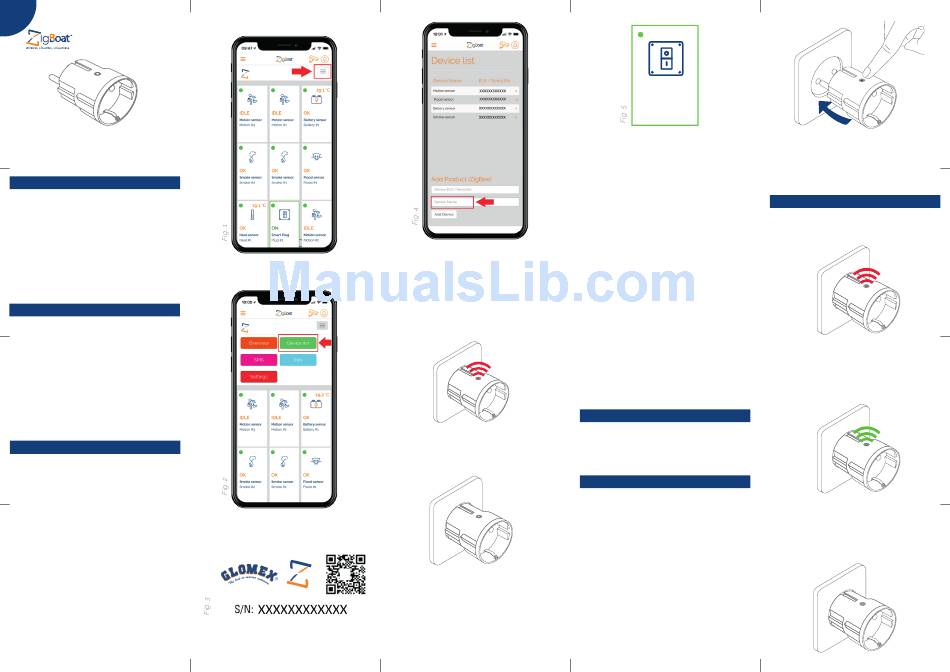

1. Open the ZigBoat™ App, select the Gateway
in the ZB Gateway menu, wait a few seconds,
then select the menu button on the top right
(fig. 1) Select "Device list" (fig. 2). Add the
sensor by entering the serial number which
is on the sensor's label (fig. 3).
2. The serial number is located between the
2-pin plug.
3. You can change the devices name by
selecting "Name" (fig. 4). Then, press the
button "Add Device".
4. Connect the Smart Plug to the 230 Vac
power outlet.
5. The Smart Plug will now start searching for
a ZigBoat™ network to join.
6. While the Smart Plug is searching for the
network, the LED button is flashing red.
7. When the LED button stops flashing, the
Smart Plug has successfully joined the
ZigBoat™ network.
To check the correct configuration, select the
overview tab of the ZigBoat™ App. (fig. 5)
Green dot: The sensor is working properly
Red dot: The sensor is not able to reach the
Gateway.
ON
Smart Plug
Plug #1
· Please check the battery status;
· Please check that the the correct serial number
has been entered.
· Please check if 230 Vac is present in the outlet.
· In case of a weak or a bad signal, change the
location of the ZigBoat™ Smart Plug
"ON": The electrical device connected to the
smart plug is on (the icon frame in the Zigboat
App is green)
"OFF": The electrical device connected to the
smart plug is off (the icon frame in the Zigboat
App is red)
You can turn on and off the electrical device
connected to your smart plug by pressing the
smart plug icon on the Overview tab.
Placement
• Place the Smart Plug indoors at a tempera-
ture between 0-50°C.
Resetting
Resetting is needed if you want to connect
your Smart Plug to another Gateway or if you
need to perform a factory reset to remove
abnormal behaviour.
STEPS FOR RESETTING
1. Connect the Smart Plug to the 230 Vac
power outlet.
2. Press and hold down the button on the
device.
3. Hold the button down until the red LED
flashes continuously, then release the button.
4. After releasing the button, the red LED will
stay on for 2-5 seconds. During that time,
the device must not be switched off or
unplugged.
Modes
SEARCHING GATEWAY MODE
A red LED is flashing every second
NORMAL MODE
Green LED means that the Smart Plug output
is active (relay is on). The relay can be switched
on and off by pushing the LED button.
OFF MODE
When there is no light in the LED button,
it means that the relay is off (there is
no output). The relay can be switched
on and off by pushing the LED button.
