retrotouch RTS2000 Instruction Manual

INSTRUCTION MANUAL

INSTALLATION WARNINGS:

BEFORE COMMENCING INSTALLATION ISOLATE YOUR MAINS ELECTRIC SUPPLY
Read the instructions care fully before starting the installation process and keep them for future reference. This product must be
installed by a qualified electrician. This product should be installed in accordance with the relevant sections of the building regulations
code, and the current edition of the IEE Wiring Regulations (BS 7671:Requirements for electrical installations) and appropriate
statutory regulations.
Ensure all connections are made correctly and the cables are not stressed and all terminal screws are tight firmly holding the cables
All Sockets must be earthed and the leads must be correctly sleeved.
Ensure that all electrical connections are correct and fully secured and that the product is screwed securely to its mounting box before
turning the mains electricity supply on.
To prevent fire hazard do not exceedthe maximum rated current of the socket.
Installation
1. Remove the glass panel of
a socket: Using a small flat screw-
driver remove the front cover by
placing the screw driver in the
location notch on the bottom part of
the cover and twist to unclip the
cover.
2. Ensure the backbox is secure in the wall.
3. Strip back cable sheath and trim the wires so no excess wire
is pertruding out of the terminal.
4. Ensure there is a green/yellow insulation sleave on the bare
earth wire.
5. Ensure the wires are connected to the corrert terminal. see
diagram overleaf.
RED or BROWN WIRE to terminal marked ' L '
BLACK or BLUEWIRE to terminal marked ' N
GREEN/YELLOW to terminal marked '
6. Check all the connections are firmly in place and the screws
are tightened.
7. Taking care not to knock, pinch or trap any of the cables
insert the socket back in to the backbox
8. Align the screw holes on the socket and backbox and tighten
until the socket is firmly seated and does not move.
9. Align the glass surround on the socket and push firmly until it
clicks into place.
Retrotouch, PO Box 1099, Worth, Crawley, RH10 OAD
T: 01293 230407 F: 01293 471444 info@retrotouch.co.uk www.retrotouch.co.uk
twist to remove
'
'
The completed installation should be tested in accordance with the current IEE Wiring
Regulations by a qualified electrician.

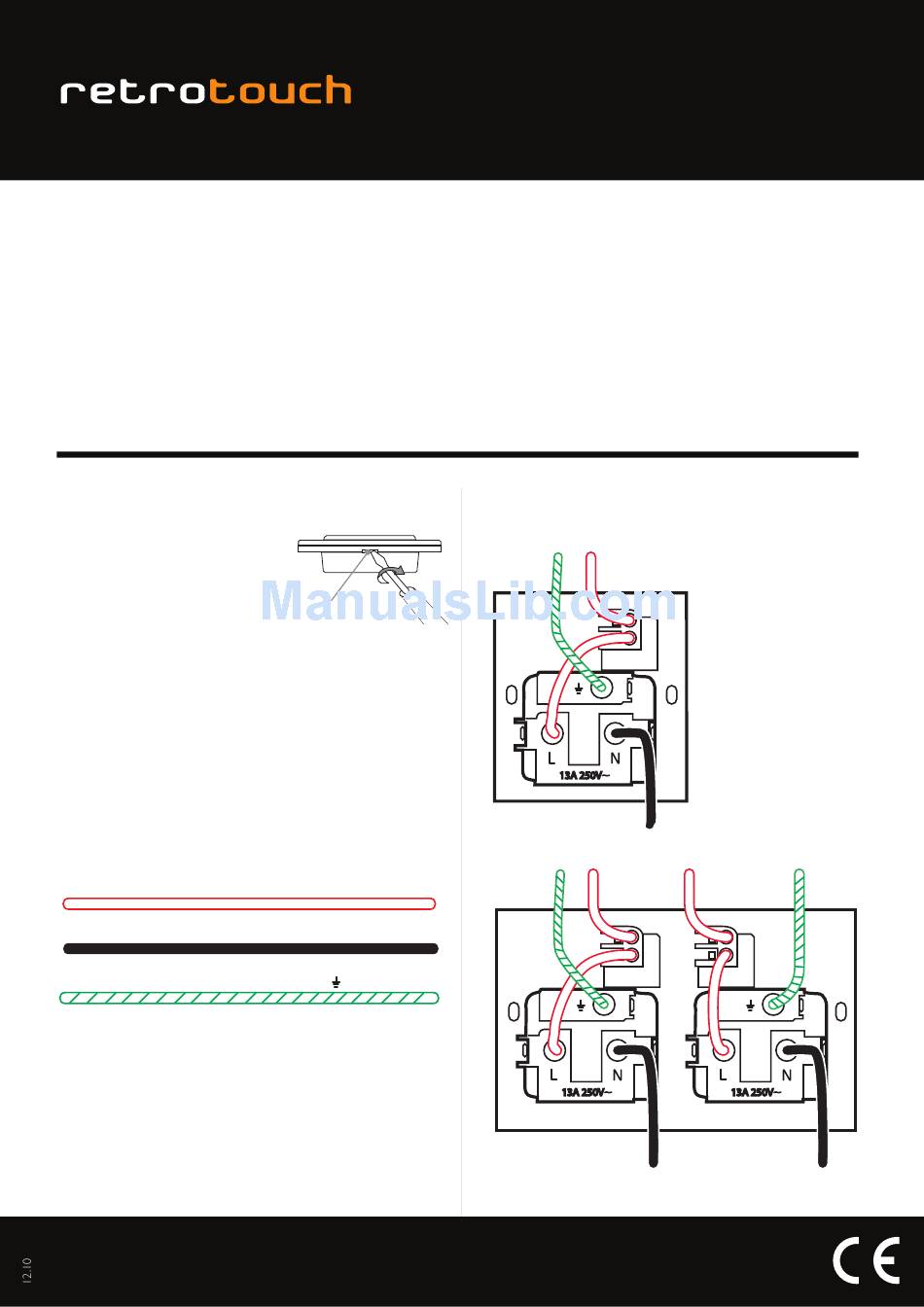

Wiring diagrams

1 Gang 13A Switched Socket
13A 250V
2 Gang 13A Switched Socket
13A 250V
RTS2000
Plug sockets
13A 250V
