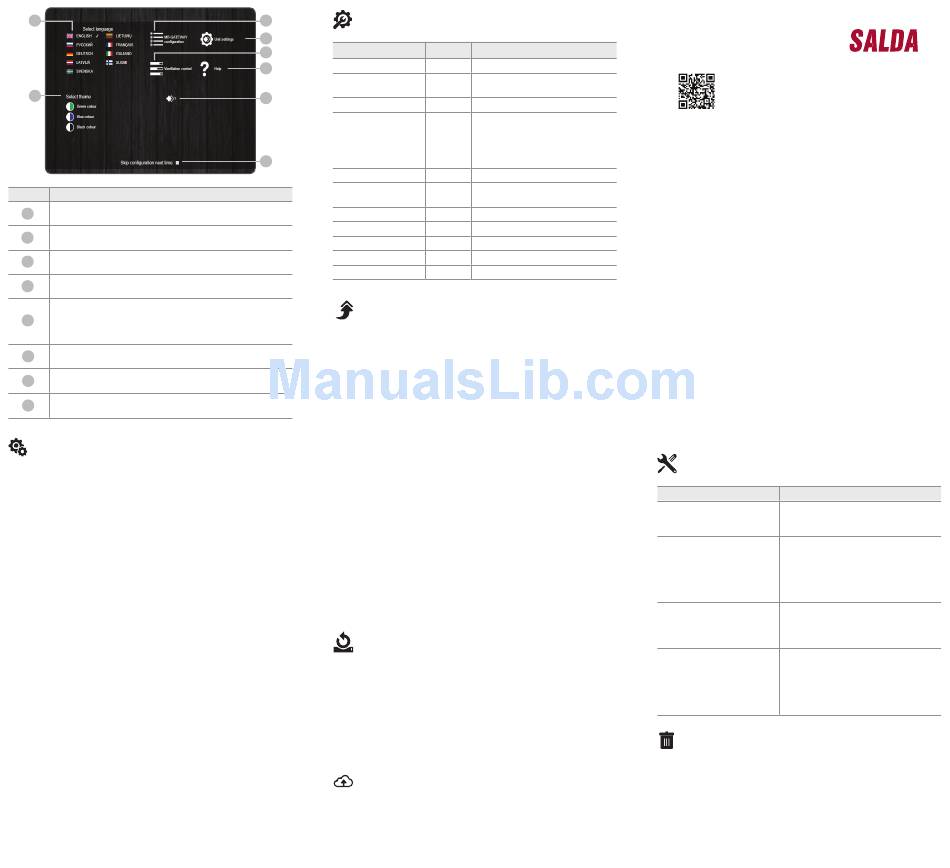

Salda MB-GATEWAY Quick Start Manual

B1
B2
Number Function
Selecting the user environment language
B1
Selecting the desired theme colour
B2
B3 Opening the MB-GATEWAY settings window
B4 Opening the device settings window
Opening the automatics control window If the parameters of
RS485 communications line are set improperly or the device is
B5
connected improperly, a message of failed search of the con-
trol panel is displayed upon pressing B4
B6 Opening the help PDF window
The selected ventilation device is displayed
B7
The displaying of this window at the time of the opening of the
B8
page is activated/deactivated

SERVICE MODE

MB-GATEWAY service mode is triggered by holding down user button
for 2 seconds, while power is on. Service mode is indicated by slow
(constant period) flashing of orange RJ45 LED. MB-GATEWAY IP ad-
dress in service mode is 192.168.0.51
Deactivation of DHCP / setting of TCP/IP static parameters
1. In the computer, to which you will connect the device, you should
set the static parameters of the TCP/IP panel. These settings de-
pend on the OS (see OS documents):
• the IP address should be in a range 192.168.0.1 – 192.168.0.254
(except 192.168.0.51), for example, 192.168.0.11;
• subnet mask ‒ 255.255.255.0.
2. Connect MB-GATEWAY to the configured computer with a UTP
(RJ45) cable (included in the supply). If it fails to operate (the com-
puter fails to support Auto MDI-X), the computer and MB-GATEWAY
should be connected to the network switch.
3. Connect the power supply unit (included in the supply) and hold
down user button for 2 seconds until MB-GATEWAY switches into
the service mode. Test the network connection using PING from
Command Prompt: ping 192.168.0.51
4. In the address window of the internet browser (Google Chrome
is recommended), enter 192.168.0.51 (MB-GATEWAY IP address
in service mode).
5. In the Web page that appears, select B3 ‒ MB-GATEWAY setting
window. Switch off DHCP support. Set TCP/IP static parameters.
If it is planned to interconnect several MB-GATEWAY in the local
network, they must be assigned unique IP addresses. After restart,
MB-GATEWAY will be available in the network by the new IP ad-
dress you have assigned to it.

TECHNICAL SPECIFICATIONS

B3
B4
Parameter
Units
B5
Anchoring
B6
Voltage [AC/DC]
B7
Communications line
Cable length [m]
B8
Power source [mm]/[m]
Dimensions [mm]
(W x H x D)
Package dimensions [mm]
Package weight [g]
Protection class
Ambient temperature [°C]
Relative humidity [%]

SOFTWARE UPGRADING

Software upgrading requires a microSD card
1. Downloading (http://salda.lt/lt/products/category/products/) up-
grade FIRMWARE.BIN and writing it to the microSD root catalogue.
2. If writing through the FTP client, the power source should not be
switched off.
3. If writing when the microSD card is removed from the module, the
power supply of the module must be switched off when inserting the
card.
4. Insert the card and connect the power supply.
5. If the file is proper, the module begins the upgrading procedure. The
RJ45 LED lamps flash alternately around every 1 s. The power source
must not be switched off during this process.
6. After around 5 minutes, the module completes upgrading and
switches to the normal status.
7. After upgrading, FIRMWARE.BIN is erased automatically.
RJ45 connection LED indications
• Both LED indications flash slowly and evenly – the MB-GATEWAY
has no software installed.
• The LED indications flash slowly and alternately – the software
upgrading is in progress.
• LED indications do not light – no power source and/or connection
with the Ethernet network.
Should any problems arise in the course of upgrading, please address
the local distributor.

RESTORING TO FACTORY SETTINGS

If connection fails (you have forgotten the password, IP address, etc.),
you can always restore to factory settings:
1. Switch off the power source;
2. Open the upper cover;
3. While holding the button pressed, switch on the power source;
4. Wait until the LED indications of the RJ45 connection begin flash-
ing;
5. The factory settings are restored as soon as the press-button is
released.

FTP SERVER

This module also has an FTP server, so the content of the microSD
memory card can be accessed and edited without removing the card.
The login data of the FTP server are the same as those of the pro-
tected WEB pages. Make sure to indicated Passive Mode in the FTP
client programme.
Value
Surface, DIN rail
12 V - 25 V (2 W) (included in the
supply with an AC/DC adapter)
Ethernet RJ45, ModBus RS485
UTP cable (1 m)
RS485 communications cable with
RJ10/RJ45 plugs (2 m)
RS485 communications cable with
RJ10/RJ10 plugs (2 m)
73 x 40 x 38 mm/Cable – 1 m
90 x 36 x 58
140 x 110 x 86
340g ±10g
IP-20
-20 +70
30-85 (without condensation)
MB-GATEWAY
Remote control console
Quick Start Guide
P0114_AZ_0003

POSSIBLE ERRORS AND THEIR SOLUTION

Problem Solution
Time indications are not Check whether the spare power battery
saved after restarting the is inserted
equipment
Failed connection to the ven- • Check the connection settings;
tilation unit (Connection lost • Check the power source;
or Control board not found • Check the communication cables (Eth-
ernet, PRV/MCB);
message)
• Check the communication configuration
switches on the MCB or miniMCB panel;
The WEB environment is not Check whether the microSD card is
displayed after entering the inserted properly
IP address in the browser
window
The MB-Gateway module Address the supplier
does not operate / the indica-
tors on the RJ45 connection
do not flash after connecting
a power source and commu-
nication cables

DISPOSAL

Waste electrical and electronic equipment
• In managing the waste equipment, comply with effective rules.
• In order to reduce impact on the environment and public health, re-
move the equipment to an electronics waste site or container.
• For detailed information concerning processing, address the seller
supplier.
