Summary of Contents for Clear Dash HD X3000

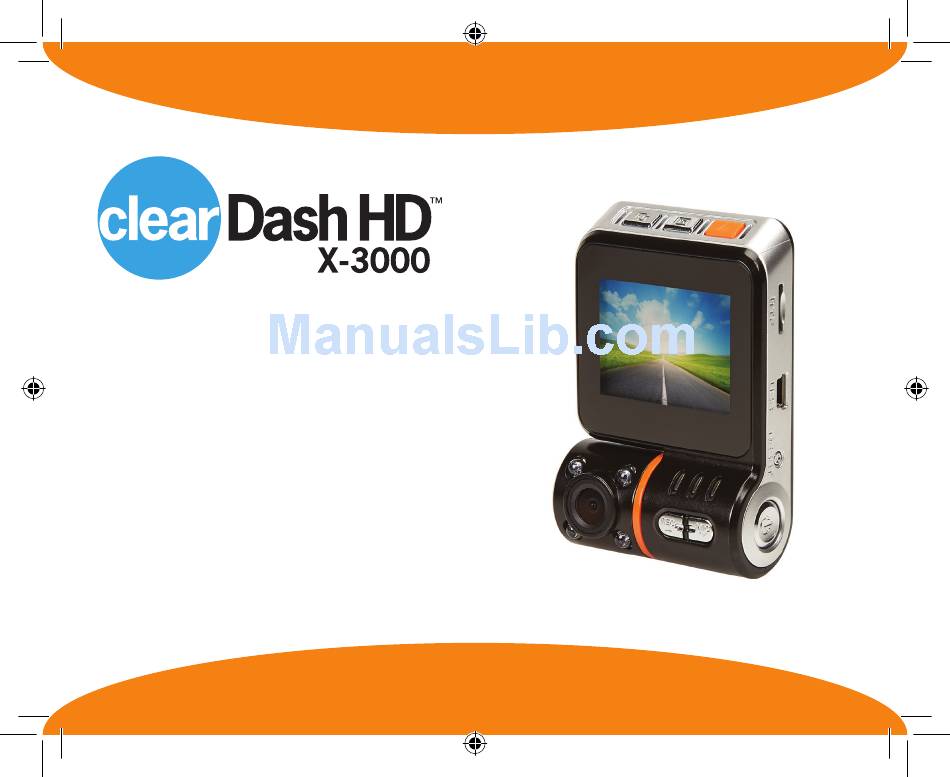

- Page 1 Owner’ s Manual High-Definition Automotive Video Recorder Warranty Information Inside CDHD-X3000_IB_TP_ENG_V1_170302.indd 1 3/3/17 4:38 PM...
- Page 2 CDHD-X3000_IB_TP_ENG_V1_170302.indd 2 3/3/17 4:38 PM...
- Page 3 Congratulations… On your purchase of the Safe Driving Dash Recorder. Dashboard mounted cameras are becoming increasingly popular as a tool for recording car journeys, both for fun and purposes of documentation should an unanticipated event happen while you are driving. Questions of guilt, innocence or liability can easily be determined when a recorded version of an event is available.
-
Page 4: Important Safety Information
140°F (60°C). Notice: Windshield Mounting Legal Restrictions Before mounting Clear Dash HD on windshield, consult state and local ordinances. Some states may outlaw suction mounts while driving or regulate where suction mounts are located in your vehicle. Many states have restrictions against “non-transparent material” on a car windshield that may obstruct the driver’s view. - Page 5 Clear Dash HD Features & Functions Mounting Bracket: Slide Bracket on to back of Dash Cam 1. Menu 10. MIC 2. Photo / Play Back 11. Micro Memory Card Slot 3. Enter / File lock 12. USB Interface 4. Video Record/Stop/ Up 13.
- Page 6 Clear Dash HD Accessories INCLUDES: 1. Power Port Car Charger with Mini USB Cable 2. Micro Memory Card -8Gb 3. USB to Mini USB Charging Cable 4. Suction Dash Mounting Bracket CDHD-X3000_IB_TP_ENG_V1_170302.indd 4 3/3/17 4:38 PM...
- Page 7 Clear Dash HD Screen Features Mode File Lock G Sensor “on” Recording Time Day/Night Recording Setting Active Video Resolution Cyclic Record Exposure Memory Card Battery Charge Date & Time MM/DD/YYYY CDHD-X3000_IB_TP_ENG_V1_170302.indd 5 3/3/17 4:38 PM...
-
Page 8: Getting Started
Clear Dash HD Operating Instructions Getting Started d. Press suction cup to surface. Lock lever in place. 1. Insert memory card into memory card e. Test mount to make secure. If loose, slot. repeat process. 2. Mount unit on dash or window of vehicle with camera lens facing the area to be 3. -
Page 9: Modes Of Operation
*While using the car power port battery can be seen by the battery strength charging cable, the X-3000 will power meter located on the screen in the lower up and start recording. right corner. Date & Time Screen appears with 3 options. Mass Storage Press Menu button once to enter Menu PC Camera... - Page 10 Photo/Camera Photo Key (2). Photo mode to Recording mode- Press Make sure unit is powered on. Press the Video Key (4) Photo/Playback Key (2) to switch to the Playback mode to Photo mode- Press Photo/Camera mode. Press Key (2) and hold Photo Key (2). again to take photo.
- Page 11 Daylight/Night Recording From Unit 1) Plug USB cable from X-3000 into the Toggle On/Off (14) to turn on Moon for night and Blank for Sunlight. USB slot of PC. 2) Find device under My computer. Setting Loop Recording 3) Open folder listed and copy/save files Press Menu Key (1) ,and then press to PC.
-
Page 12: Terms Definition
Terms Definition Gravity Sensing This car camera has G Shock built-in Gravity Sensing. If the vehicle has a severe crash, the current video file will lock automatically. Lock Icon will appear on the middle top of the screen. The lock file will not be overwritten in loop recording. Parking guard The car camera will turn on and record automatically when it detects shock after setting parking guard function. -
Page 13: Motion Detection
file will be protected for 1 min. Default setting can be changed in Main Menu Cyclic Record. Lock file is manual activation of the G-sensor which will automatically lock the file when a shock/bump is sensed. Press manually to prevent overwrite of file. Common Video files: O ______ G-sensor locked files: EVEO... -
Page 14: Troubleshooting
Troubleshooting Unit will not turn on Unit must be charged. Connect to Power source. Charge for a few hours before use. Unit is not recording Check if memory card is installed or full. Another situation might be that the memory card does not match the unit. Install the memory card supplied with the unit or a similar type. - Page 15 Images are blurred Clean camera lens. Display shuts off The display turns off at a preset time. Default panel protect setting turns unit off at a preset time. Go to Menu to change setting. CDHD-X3000_IB_TP_ENG_V1_170302.indd 13 3/3/17 4:38 PM...
-
Page 16: Default Settings
DEFAULT SETTINGS Main Menu - Video Menu Default settings FHD 1920×1080 / HD Resolution HD 1280×720 1280×720/VGA 640×480 Cyclic Record Off/1 Minute/2 Minutes/3 Minutes 1 Minute Exposure -3/-2/-1/0/1/2/3 Audio Off/On Detection Off/On Date Stamp Off/On Gravity Sensing Off/High/Medium/Low Medium Parking Guard Off/On CDHD-X3000_IB_TP_ENG_V1_170302.indd 14 3/3/17 4:38 PM... - Page 17 Menu - Video Settings Menu Default settings Date/Time MM/DD/YYYY 02/17/2017 Power Save 1min, 3 mins, 5 mins, Off 1 Min Beep Sound Off/On Language Chinese, English,Deutsch,Japanese English TV Mode PAL/NTSC NTSC Frequency 50Hz/60Hz 60Hz Panel Protect Off/30S/1 Minute/2 Minutes 30 sec Fill Light Off/On/Auto Format...
- Page 18 Capture Mode Menu Default settings Picture Mode Capture Mode Off/self-timer 2s/self-timer 10s/Bust 1.3M 1280*960/2MHD Resolution 1.3M 1280*960 1920*1080/3M 2048*1536 Sequence Quality Fine/Normal/Economy Fine Sharpness Strong/Normal/Soft Strong Auto/Daylight/Cloudy/Tungsten/ White Balance Auto Fluorescent Normal/Black and White/Sepia/ Color Normal Negative/Solarization Auto/100/200/400 Auto Exposure -3/-2/-1/0/1/2/3 Anti-Shaking Off/On...
- Page 19 Capture Mode Menu Default settings Picture Mode Date Stamp Off/Date/Time Date/Time Date/Time Off/10S/20S/30S Auto Power Off Beep Sound Off/On Language Chinese, English,Deutsch,Japanese English TV Mode PAL/NTSC NTSC Frequency 50Hz / 60Hz 60Hz LCD Brightness Off/1 Minute/2 Minutes/3 Minutes Fill light Off/On/Auto Format Cancel/OK...
-
Page 20: Specification
SPECIFICATION Visual angle 120 degree Lens degrees rotation 270 degree Sensor 1.0 Mega pixels Video resolution 1080P/1080PHD /720P/WVGA Video format Video frame number 720P/30fps/ WVGA/30fps Picture format JPEG Picture resolution Actual pixel 1280**800 (optional) Highlight support Web camera support Motion detection support Removable disk support... - Page 21 CDHD-X3000_IB_TP_ENG_V1_170302.indd 19 3/3/17 4:38 PM...
- Page 22 MANUFACTURER’S SIXTY DAY LIMITED WARRANTY The manufacturer warrants that all parts and components are free of defects in materials and workmanship for 60 days from the date the product is received. This warranty is valid only in accordance with the conditions set forth below: 1.
- Page 23 4. Repair or replacement of the product (or, if repair or replacement is not feasible, a refund of the purchase price) is the exclusive remedy of the consumer under this warranty. The manufacturer shall not be liable for any incidental or consequential damages for breach of this warranty or any implied warranty on this product.
- Page 24 CDHD-X3000_IB_TP_ENG_V1_170302.indd 22 3/3/17 4:38 PM...
- Page 25 CDHD-X3000_IB_TP_ENG_V1_170302.indd 23 3/3/17 4:38 PM...
- Page 26 Owner’ s Manual High-Definition Automotive Video Recorder Distributed By: Tristar Products, Inc. Fairfield, NJ 07004 © 2017 Tristar Products, Inc. CDHD-X3000_IB_TP_ENG_V1_170302 CDHD-X3000_IB_TP_ENG_V1_170302.indd 24 3/3/17 4:38 PM...
