NikamCorp Pen mouse Instructions

2.4GHZ Wireless

Pen mouse Instruction

www.nikamcorp.com

Specification

1. 2AG wireless mouse, 10m effective distance
2. 3-resolutions Adjustable: 800/1200/1600dpi
3. Nano dongle
4. Supports
Windows 7/ Vista/ XP/ 8 /10 Android. Linux, Mac OS.
5. 1 AAA battery
6. Parameter:
1) Product size: 140'201 5mm
2) Product weight: 29g
3) Number of keys: 4
4 ) Operating frequency: 2.402 GHz-2.480 GHz
5) Channel: 16 with Automatic frequency hopping
6) Rated operational voltage: 3V
7) Rated operational current: 15mA
8) Tracking method: Optical technology
9) Maximum acceleration: 14 inches/s

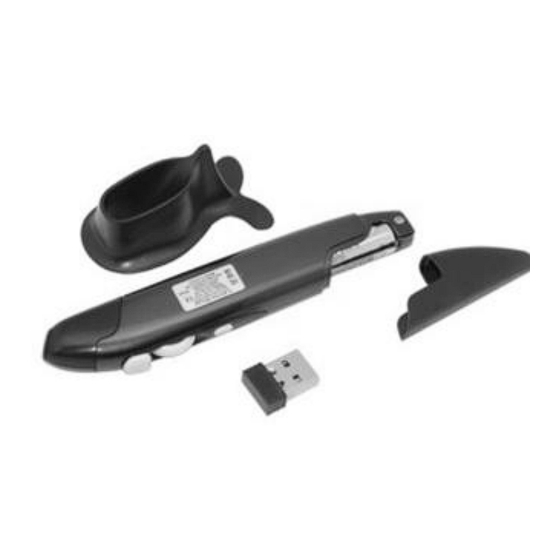

Product Layout

1. Mouse left 2. Scroll wheel
4. Mouse right 5. Optical sensor
7. The battery cover

Instruction for use

1. Open the battery cover. Please use left hand hold the beginning of pen mouse.
and pull the battery by right hand as shown bellow.
2 Insert 1 AAA battery with correct pelar ity (+/-) then open the power switch.
3. Insert the mini receiver into computer USB combo, the pen mouse has been matched
with the receiver when out of factory. You can use this pen mouse directly after
insert the receiver.
4. This pen mouse can sliding on the mouse pad and desktop like a pen to make the
cursor movement as shown left bellow. It can be used for business meeting, working
PPT speech, teaching and other occasions when your hand it as shown right
bellow.

Low voltage alarm function

3. DPI Adjust When the battery is low, the low voltage alarm will light up, and warn to change the
battery. Please use AAA battery
6. Power on/off

DPI adjust function

There are 3 resolution adjustable 800/1200/1600 dpi. The original is 1200 dpi. You can
choose your favor dpi through this function.
