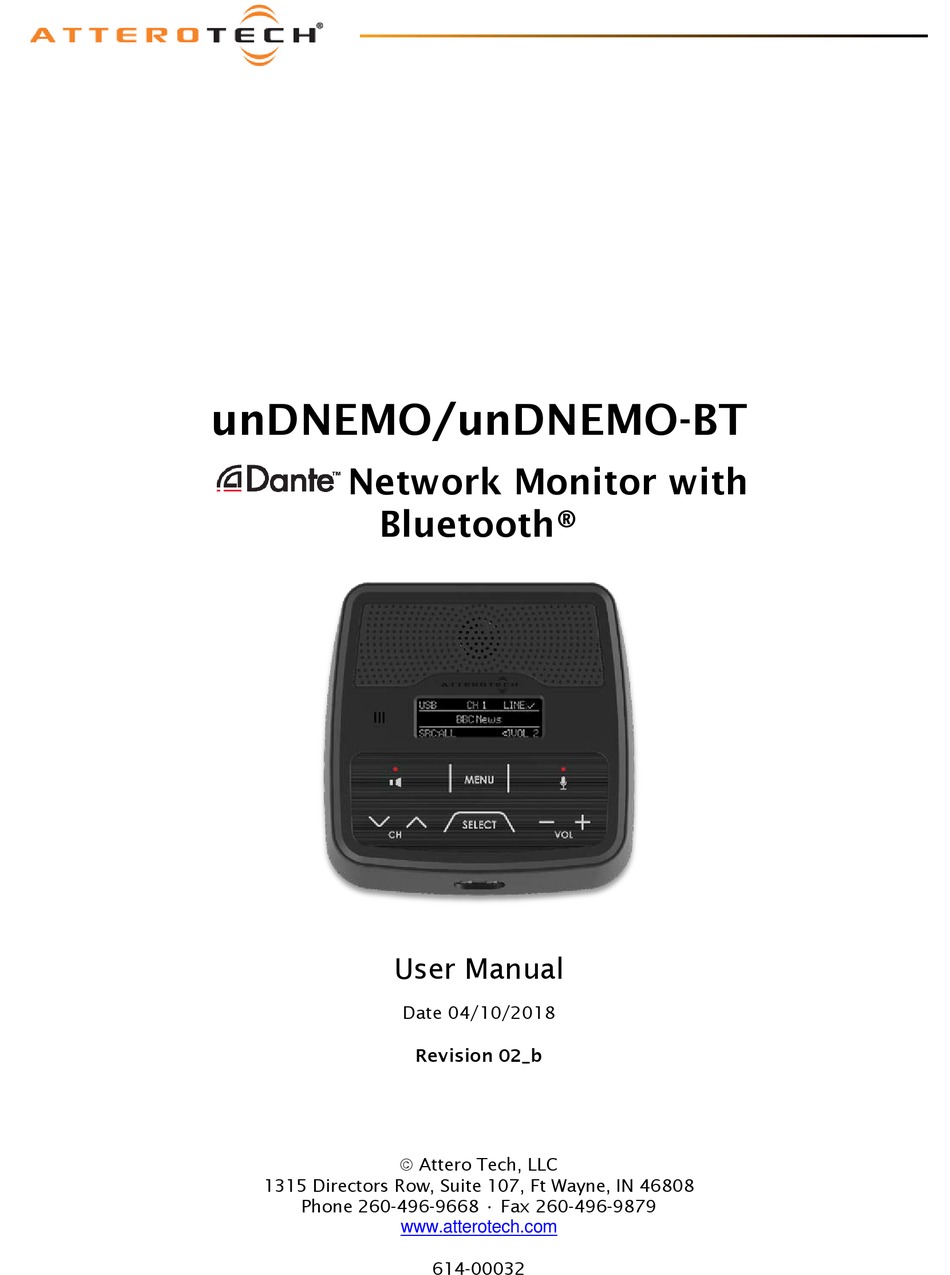

- Page 1 Network Monitor with Bluetooth® User Manual Date 04/10/2018 Revision 02_b Attero Tech, LLC 1315 Directors Row, Suite 107, Ft Wayne, IN 46808 Phone 260-496-9668 • Fax 260-496-9879 www.atterotech.com 614-00032...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item. Attero Tech, LLC will pay for the cost of returning your equipment to you. This warranty applies only to items returned to Attero Tech, LLC, shipping costs prepaid, within five years from the date of purchase.
-
Page 4: Table Of Contents
2.9.1 – Menu Mode: Brightness Control ........................... 16 2.9.2 – Menu Mode: Device Info ..............................16 2.9.3 – Menu Mode: Bluetooth® Headphone Setup (unDNEMO-BT Only) .................. 17 2.9.4 – Menu Mode: Bluetooth® Headset Setup (unDNEMO-BT Only) ..................17 2.9.5 – Menu Mode: Net TX Source ............................17 3 –... -
Page 5: Overview
1 – Overview The unDNEMO and unDNEMO-BT are highly flexible Dante® network audio monitoring solutions that can be deployed in a wide array of pro-AV applications. The unDNEMO and unDNEMO-BT are capable of monitoring one audio channel selected from up to 64 configured Dante®... -
Page 6: Product Features
Figure 1 - Top Panel Features Internal speaker OLED Display Backlit Keypad with Mute state indication 3.5mm T-S Headset Mic (Left) and 3.5mm Stereo Headphone TRS (Right) Internal microphone interface (unDNEMO-BT only) Internal Bluetooth® Attero Tech LLC 2018 Page 5 614-00032 Rev 02_b_b... - Page 7 24V DC Power Input *Note: The unDNEMO and unDNEMO-BT have a label on the base of the unit that shows the devices MAC address. This is important for initial device identification as the last six digits make up part of the devices default network name that is shown when the device is detected by Dante®...
-
Page 8: User Operation
The status bar always indicates the active audio source mode and the current volume settings. To save power, the unDNEMO display will turn itself off after 5 minutes of inactivity. -
Page 9: Audio Modes
Figure 5 - Audio Mode Screen Flow All audio modes are accessed based on the order shown in * The Aux Mode is replaced by a Line Input mode on the unDNEMO Figure 5. If any of the configurable modes are disabled, those modes will simply be skipped when selecting the next mode. -
Page 10: Bluetooth® Connectivity (Undnemo-Bt Only)
Internal Microphone When a headphone or headset is paired and connected to the unDNEMO-BT, the local volume controls on the unDNEMO-BT operate the volume to the headphone/headset. However, the speaker mute button only mutes and unmutes the local speaker. This allows normal operation of the unDNEMO-BT locally when the headphone/headset is located remotely allowing local monitoring. -
Page 11: Net Mode
In this mode if the “Dante TX” is mode is enabled, audio is also available on the Dante® network from one of the unDNEMO or unDNEMO-BT’s audio inputs. The transmit source is selected via in the Net TX menu (See Section 2.9.5 – Menu Mode: Net TX Source). -
Page 12: Net Mode Table
● ● Net Ch 1-64 In *NOTE: unDNEMO-BT Aux Input Mode must have either Line In or Bluetooth® selected. Both sources cannot be monitored simultaneously. **NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled. ♦ Dante™ TX (only if enabled/selected) ... -
Page 13: Usb Mode
2.5– USB Mode The USB mode allows the user to use the unDNEMO-BT as a USB soundcard when connected Mac or PC computer. In this mode, the playback audio from the PC is routed to the internal speaker, headphones if connected, or Bluetooth® connected headphones/headsets for the unDNEMO-BT. -
Page 14: Aux Input Mode (Undemo-Bt Only)
If Dante® TX audio features are enabled within the unIFY Control Panel software for the unDNEMO, the line input audio will also be routed to the first and second Dante® audio transmit channels of the device for audio bridging applications. Dante® Controller or another 3 party application must be used to route the audio to the intended Dante®... -
Page 15: Line Input Mode Table (Undnemo Only)
● Net Ch 1-64 In *NOTE: unDNEMO-BT Aux Input Mode must have either Line In or Bluetooth® selected. Both sources cannot be monitored simultaneously. **NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled. Attero Tech LLC 2018... -
Page 16: Menu Mode Navigation
2.9– Menu Mode Navigation The unDNEMO and unDNEMO-BT feature a number of menu screens for showing status and basic device configuration. The menu mode access is also a configurable option that can be disabled for applications where the end user may only require limited access to the devices features. -
Page 17: Menu Mode: Brightness Control
IP address settings, use Dante® Controller or other configuration software that supports general networking configuration for Dante® devices. Figure 20 - Device Info: MAC Figure 21 - Device Info: IP Attero Tech LLC 2018 Page 16 614-00032 Rev 02_b_b... -
Page 18: Menu Mode: Bluetooth® Headphone Setup (Undnemo-Bt Only)
“SCAN” then press the “Select” button. This will cause the unDNEMO-BT to search for nearby, compatible devices and display them in the setup menu. Use the “+” and “-” buttons to navigate to the desired device in the list and press the “Select” button to connect. -
Page 19: System Setup
3 – System Setup *Note: All Attero Tech products are tested using UTP cabling and it is recommended that UTP cabling be used when installing them. STP cabling can be used for installation though care must be taken not introduce grounding issues into the system by doing 3.1 –... -
Page 20: Poe Deployment
The unDNEMO and unDNEMO-BT support PoE 802.3af power on the left-most Ethernet port labeled “PoE+Data” on the rear panel of the unit. To utilize PoE, connect CAT-5e or better cabling between the PoE port of the unDNEMO/unDNEMO-BT and an 802.3af compliant PoE Ethernet switch or mid-span power injector. -
Page 21: Unify Control Panel Notes
Once a device is discovered, unIFY can present further details about the device. For unDNEMO and unDNEMO-BT devices, unIFY is also used to configure the device settings such as the audio mode and Bluetooth®... -
Page 22: Dante® Configuration Notes
3.5 – Factory Reset The unDNEMO and unDNEMO-BT have a factory reset option. Using it will reset all the devices parameters back to their factory defaults including all the Dante® settings such as device name, channel names as well as the device settings such as input select. -
Page 23: Mechanical Information
4.1 – Mounting Information The unDNEMO and unDNEMO-BT is designed to be placed on a smooth surface and features a non-slip pad on the base of the unit. For mounting on non-horizontal surfaces, the base of the unit features two keyhole openings for mounting that accept a #6 size screw head. -
Page 24: Architects & Engineers Specification
The Dante® interface shall be compliant with the RoHS, REACH and WEEE directives. The Dante® interface unit shall be compliant with the EMI/EMC requirements for FCC (Part 15 Class A) and CE (EN 55022 Class) A. The Dante® interface shall be the Attero Tech unDNEMO. 5.2– unDNEMO-BT The Dante®... -
Page 25: Device Specifications
3dB below maximum Height 2.6” Headphone: 20Hz – 20kHz Depth 6.23” Frequency Response +/- 1dB Weight 1.13 lbs Bluetooth® Audio (unDNEMO-BT Only) Environmental Specifications Bluetooth® v3.0 Operating Supported Bluetooth® A2DP (Headphone and 0 to 40 C Temperature Profiles bridging modes) HSP (Headset mode) Bluetooth®...
