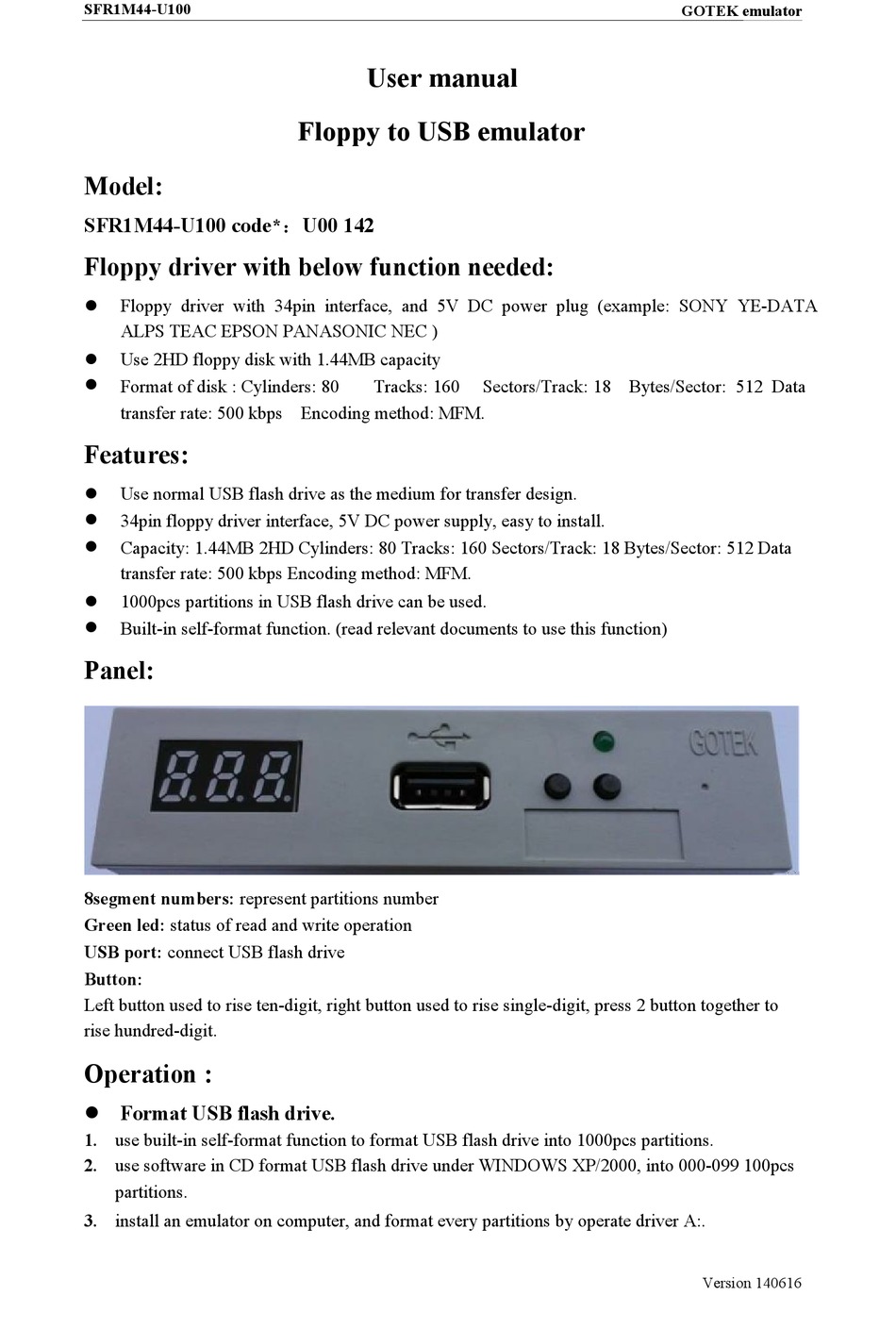

Generic SFR1M44-U100 User Manual

SFR1M44-U100
Model:
SFR1M44-U100 code*：U00 142
Floppy driver with below function needed:
Floppy driver with 34pin interface, and 5V DC power plug (example: SONY YE-DATA

ALPS TEAC EPSON PANASONIC NEC )
Use 2HD floppy disk with 1.44MB capacity

Format of disk : Cylinders: 80

transfer rate: 500 kbps Encoding method: MFM.

Features:

Use normal USB flash drive as the medium for transfer design.

34pin floppy driver interface, 5V DC power supply, easy to install.

Capacity: 1.44MB 2HD Cylinders: 80 Tracks: 160 Sectors/Track: 18 Bytes/Sector: 512 Data

transfer rate: 500 kbps Encoding method: MFM.
1000pcs partitions in USB flash drive can be used.

Built-in self-format function. (read relevant documents to use this function)


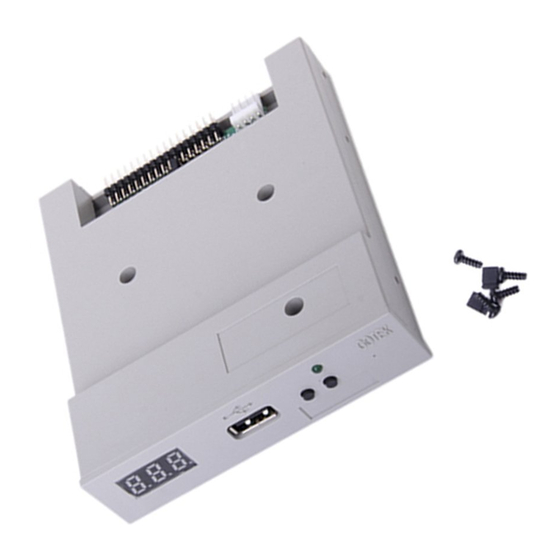

Panel:
8segment numbers: represent partitions number
Green led: status of read and write operation
USB port: connect USB flash drive
Button:
Left button used to rise ten-digit, right button used to rise single-digit, press 2 button together to
rise hundred-digit.

Operation :

 Format USB flash drive.
1.
use built-in self-format function to format USB flash drive into 1000pcs partitions.
2. use software in CD format USB flash drive under WINDOWS XP/2000, into 000-099 100pcs
partitions.
3. install an emulator on computer, and format every partitions by operate driver A:.
User manual
Floppy to USB emulator
Tracks: 160 Sectors/Track: 18 Bytes/Sector: 512 Data
GOTEK emulator
Version 140616
