This is not intended to be used as a potable water source.
Do not attempt to open the outer covering. There are no user serviceable parts.
Tools required:
Drill with 3/8" masonry bit or 1/8" standard bit (see instructions below)
Adjustable or Socket Wrench
Masonry Structure Mounting Instructions (Primary Method):
Position Mounting Bracket (G) on wall at desired height and mark holes to prepare for drilling.
Using a 3/8" masonry drill bit, drill holes for the 4 Expansion Bolts (A).
Remove Nut, Lock Washer and Flat Washer from the Expansion Bolt. Insert Expansions Bolt and sleeve with the
threads facing outward into the drilled hole.
47939 - 100' Retractable Hose Reel Assembly Instructions

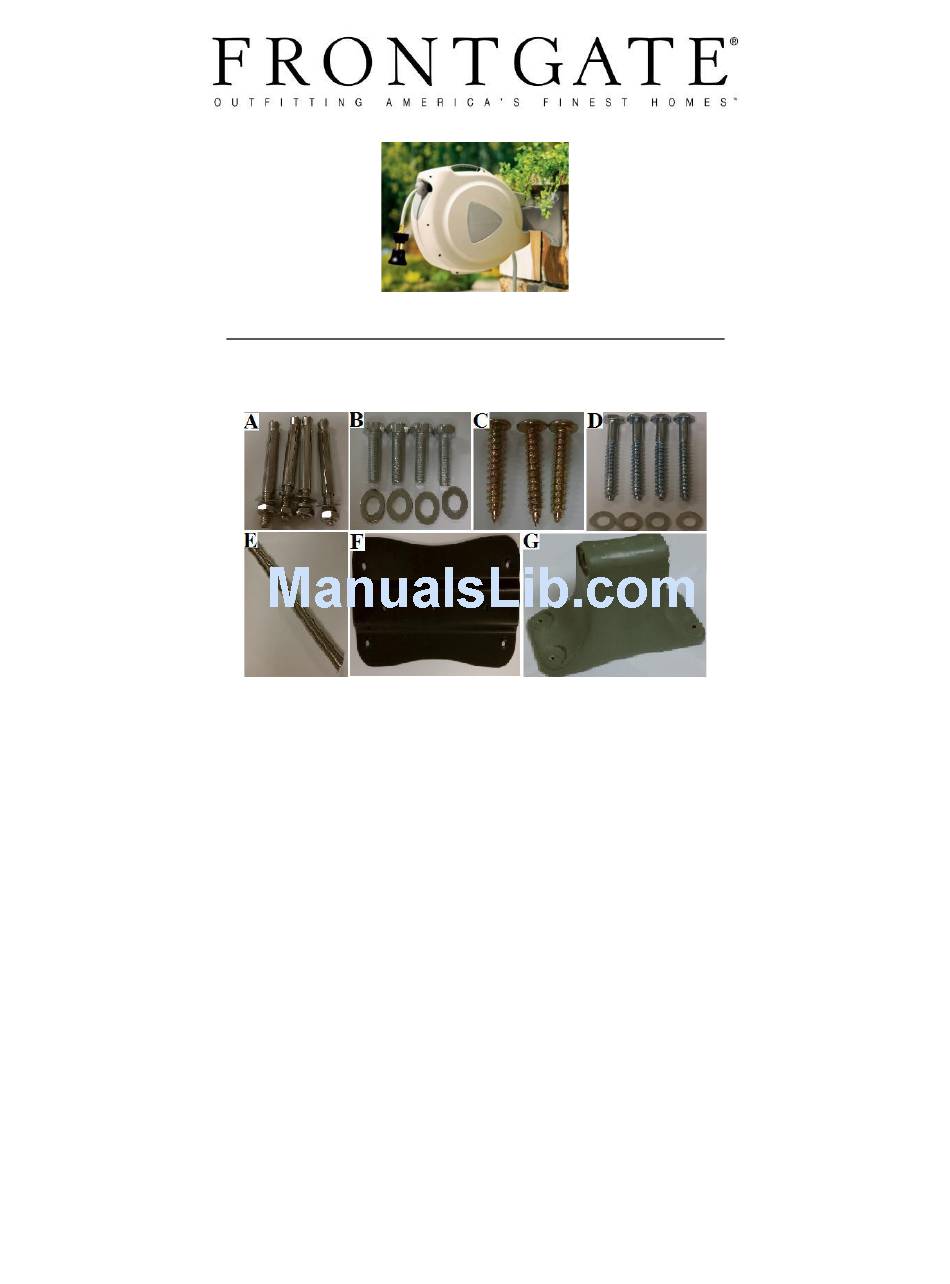

Parts List:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Frontgate 47939
- Page 1 47939 - 100' Retractable Hose Reel Assembly Instructions Parts List: Attention: This is not intended to be used as a potable water source. Do not attempt to open the outer covering. There are no user serviceable parts. Tools required: ...
- Page 2 Slide the Mounting Bracket over the Expansion Bolts and replace Flat Washer, Lock Washer, and Nut. Tighten using an Adjustable or Socket Wrench. Position Hose Housing over Mounting Bracket and lock into place using the Mounting Pin (E). ...
- Page 3 Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email ps@frontgate.com. Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to 6:00 p.m.
