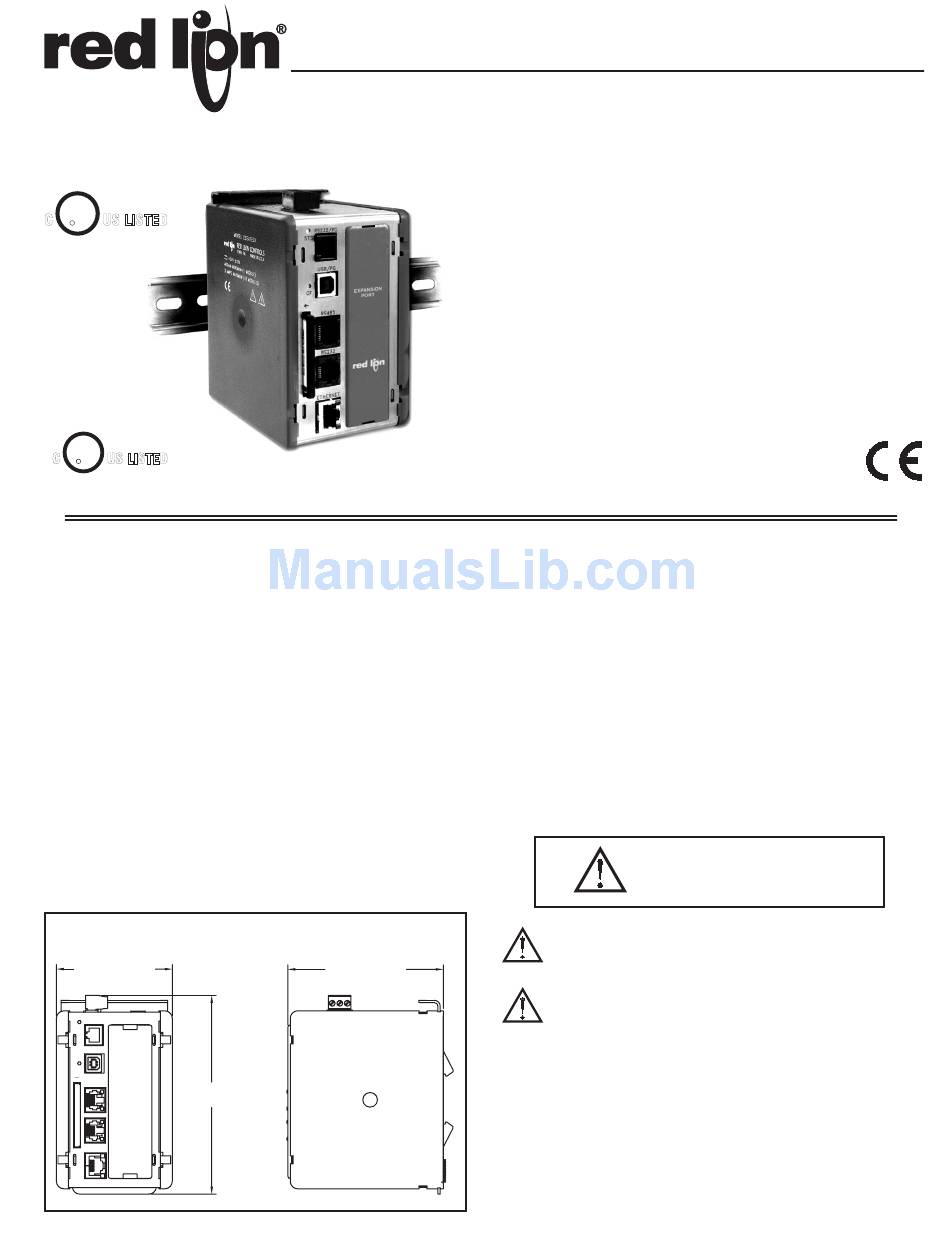

MODEL DSP – DATA STATION PLUS
U L
C US LISTED
R
IND. CONT. EQ.
34AD
U L
C US LISTED
FOR USE IN HAZARDOUS LOCATIONS:
R
3PWL
Class I, Division 2, Groups A, B, C, and D
PROGRAMMABLE
CONTROLLERS

GENERAL DESCRIPTION

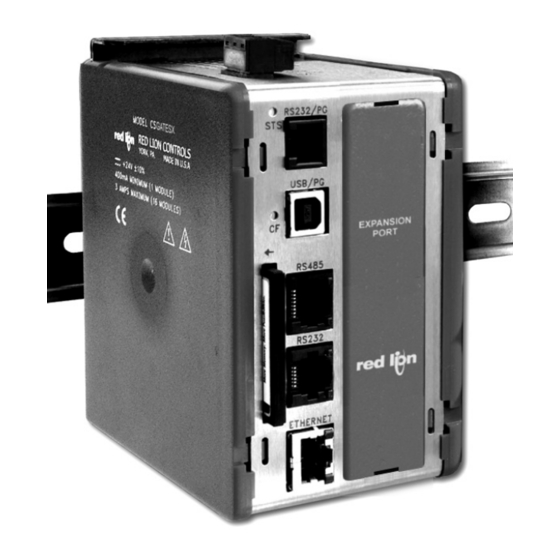

The Data Station Plus was designed to act as a nexus for industrial data
collection and management. The unit offers multiple protocol conversion, data
logging and remote machine access. With three built in serial ports and a 10
Base-T/100 Base-TX Ethernet port, the unit performs protocol conversion,
allowing disparate devices to communicate seamlessly with one another. The
Ethernet port supports up to four protocols simultaneously so even Ethernet to
Ethernet protocols can be converted.
The CompactFlash card allows data to be collected and stored for later
review. The files are stored in simple CSV file format allowing common
applications, such as Microsoft Excel and Access, to view and manage the data.
The free Websync utility provides a means to synchronize the files with a PC's
hard drive for permanent storage. The CompactFlash card may also be used to
load new configuration files into the Data Station.
The built-in web server allows log files to be retrieved manually, and also
provides access to the unique "virtual HMI". The virtual HMI is programmed
just like Red Lion's G3 series of HMI. Any standard web browser such as
Internet Explorer or Netscape may be used to monitor or control the HMI from
a PC anywhere in the world.
The USB port may be used for blazing fast file downloads, or to mount the
Data Station's CompactFlash card as an external drive to your PC.
The Data Station's DIN rail mounting saves time and panel space and snaps
easily onto standard top hat (T) profile DIN rail.
DIMENSIONS In inches (mm)
3.09 (78.5)
RS232/PG
STS
USB/PG
CF
RS485
5.30 (134.7)
RS232
ETHERNET
 PROTOCOL CONVERSION FEATURE CONVERTS NUMEROUS
 COMPACTFLASH
 VIRTUAL HMI OFFERS BUILT-IN PC-BASED SCADA
 WEBSERVER PROVIDES WORLDWIDE ACCESS TO DATA
 EXTENSIVE BUILT-IN DRIVER LIST ALLOWS EASY DATA
 ALARM NOTIFICATIONS CAN BE SENT VIA EMAIL OR TEXT
 10 BASE-T/100 BASE-TX ETHERNET CONNECTION

SOFTWARE

2000 or later platforms. The software is an easy to use graphical interface which
can be purchased as part of a kit that includes a manual and cables, or
downloaded free of charge from www.redlion.net.

SAFETY SUMMARY

manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller. An independent
and redundant temperature limit indicator with alarm outputs is strongly
recommended.
4.15 (105.4)
CompactFlash is a registered trademark of CompactFlash Association.
1
PROTOCOLS SIMULTANEOUSLY
®
SLOT ALLOWS PROCESS DATA TO BE
LOGGED DIRECTLY TO CSV FILES
FUNCTIONALITY
LOGS AND VIRTUAL HMI
MAPPING TO PLCs, PCs, AND SCADA SYSTEMS
MESSAGES
CAN CONNECT TO AN UNLIMITED NUMBER OF
DEVICES VIA FOUR PROTOCOLS SIMULTANEOUSLY
The Data Station is programmed with Crimson
All safety related regulations, local codes and instructions that appear in the
Do not use the controller to directly command motors, valves, or other
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
Bulletin No. DSP-K
Drawing No. LP0629
Released 11/13
®
2.0 software for Windows
CAUTION: Risk of Danger.
®
