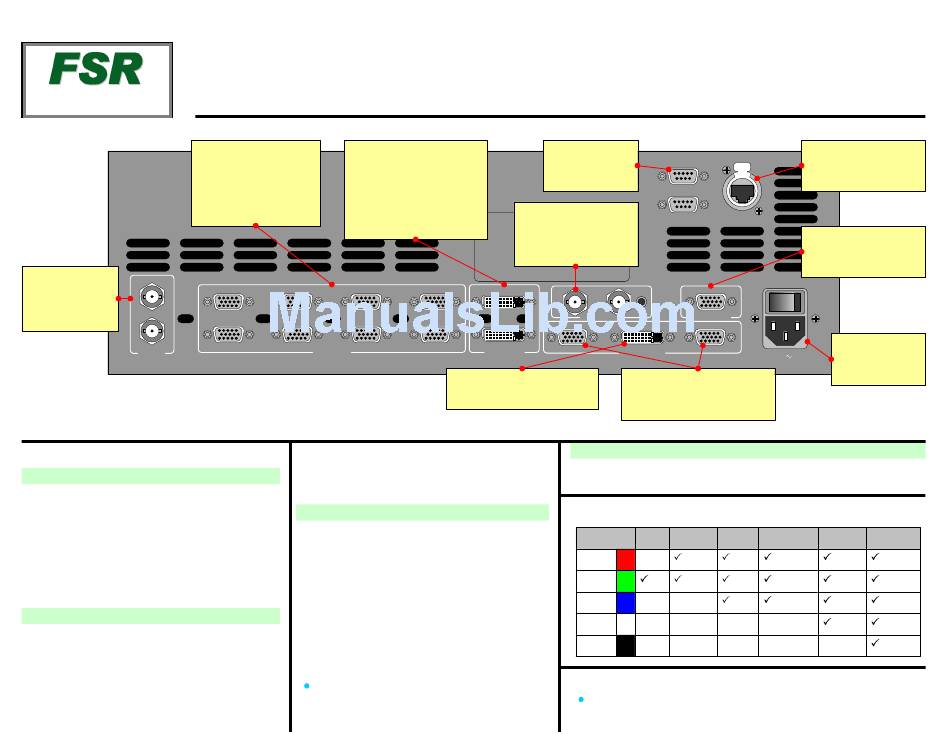

FSR INC. Eagle 200 Quick Start Manual

Eagle 200

Quick Start Guide

TAKE A NEW LOOK
Connect to analog sources
such as PCs, VTRs, and
cameras. Use breakout
SDI Inputs
2
On HD model only,
connect to SD-SDI
1
or HD-SDI sources.
SDI In
Quick Install and Setup
Getting Started
1. Observe all safety precautions. Rackmount chassis, or
install in "tabletop" configuration.
2. Connect all inputs, monitors, projector and AC. Install
genlock signal if required. Power on.
3. Perform factory reset: Using Touch Screen buttons,
press {SYSTEM} > {RESET}. On Reset Type line, use
ADJ knob to select FACTORY. Press {RESET} > {YES}.
4. Calibrate Touch Screen: Press {DISPLAY} >
{LCD CAL}, and follow on-screen prompts.
Output and Projector Setup
5. Press {OUTPUT}.
6. On Format line, select projector's native resolution.
7. Press {SELECT FORMAT} to accept, then {SAVE}.
8. For projector setup, press {TEST PATTERN}.
9. On the Type line, select the Burst pattern.
43897A
Analog Inputs Background / DSK
Connect to DVI sources such
as PCs. Input B can be either
cables as required.
BG or DSK, but not both.
See * below for details.
Backgrounds and DSK are
unscaled sources.
1 3 5
2 4 6
Analog In
10. Adjust your projector as required. [User's Guide:
Chapter 5, "Projector Setup" section.]
11. When complete, set test pattern Type to Off, set
Raster Box to Off, then press {HOME}.
Input Setup
12. On the Source Selection Bus, press an input button.
If the "acquire" is successful, the source appears on
Preview. This may take several seconds.
13. Press {SAVE}. The Input Menu will appear.
14. If the "Acquisition Failed" message appears, check
all connections and press {FORCE ACQUIRE}. If
successful, press {SAVE}.
15. If the input still does not acquire, perform a detailed
setup. [User's Guide: Chapter 5, "Comprehensive
Input Setup" section.]
16. Repeat from step 12 for all remaining inputs. Be sure
to {SAVE} each input.
Note: To adjust input size, use the {SIZING} menu.
[User's Guide: Chapter 4, "Sizing Menu" section.]
FSR Inc.
244 Bergen Boulevard
West Paterson, NJ
07424
Serial 1
Inputs
For downloading
firmware updates.
Genlock
Connect a reference
signal such as black burst
or composite sync.
7
A In
8
B
1
BG/DSK In
Program Out Digital
Connect to projector.
Background, DSK, and LOGO Setup
17. See User's Guide, Chapter 5 for setup procedures. DVI background
* Breakout Cables for Analog Inputs
ScreenPRO-II User's Guide
Phone:
Technical Support:
Website:
Serial 1
Serial 2
Ethernet
Loop
Genlock Preview Out
2
Program Out
100-240 V
Program Out Analog
Connect to projector or analog
Program monitor.
and DSK must be set at same resolution as system output.
Breakout Cable Comp S-Video YUV
Wire Color Video (Y/C) (YPbPr)
R (Chrom) (Pr)
G
(Lum) (Lum)
B (Pb)
H Sync
V Sync
For complete details on all installation and operations procedures,
please refer to the ScreenPRO-II User's Guide.
+1 (800) 332-3771
Fax: +1 (973) 785-3318
+1 (800) 332-3771
www.fsrinc.com
Ethernet
For use with external
controller.
Preview Out
Connect to analog
Preview monitor.
AC
50-60 Hz
Connect to AC
2.3 A
power source.
RGB RGB RGB
Sync on Green Comp Sync Separate H V
LIT 1119 D1
