Plug-in Wireless
Signal Repeater
RT101

User Manual

Description

The RT101 Plug-in Repeater Unit is designed to increase the
transmission range of your alarm system. The Repeater receives the
signal from a distant Transmitter (e.g. a PIR or Door/Window Sensor or
Remote Control, etc) and re-transmits the signal to your Receiver (e.g.
a Control Panel, Solar Siren, etc).
The Repeater Unit is suitable for use with any miGuard 433MHz Alarm
System.
Ideally, the Repeater Unit should be installed mid-way between the
Transmitting Device and the Receiver (Control Panel).

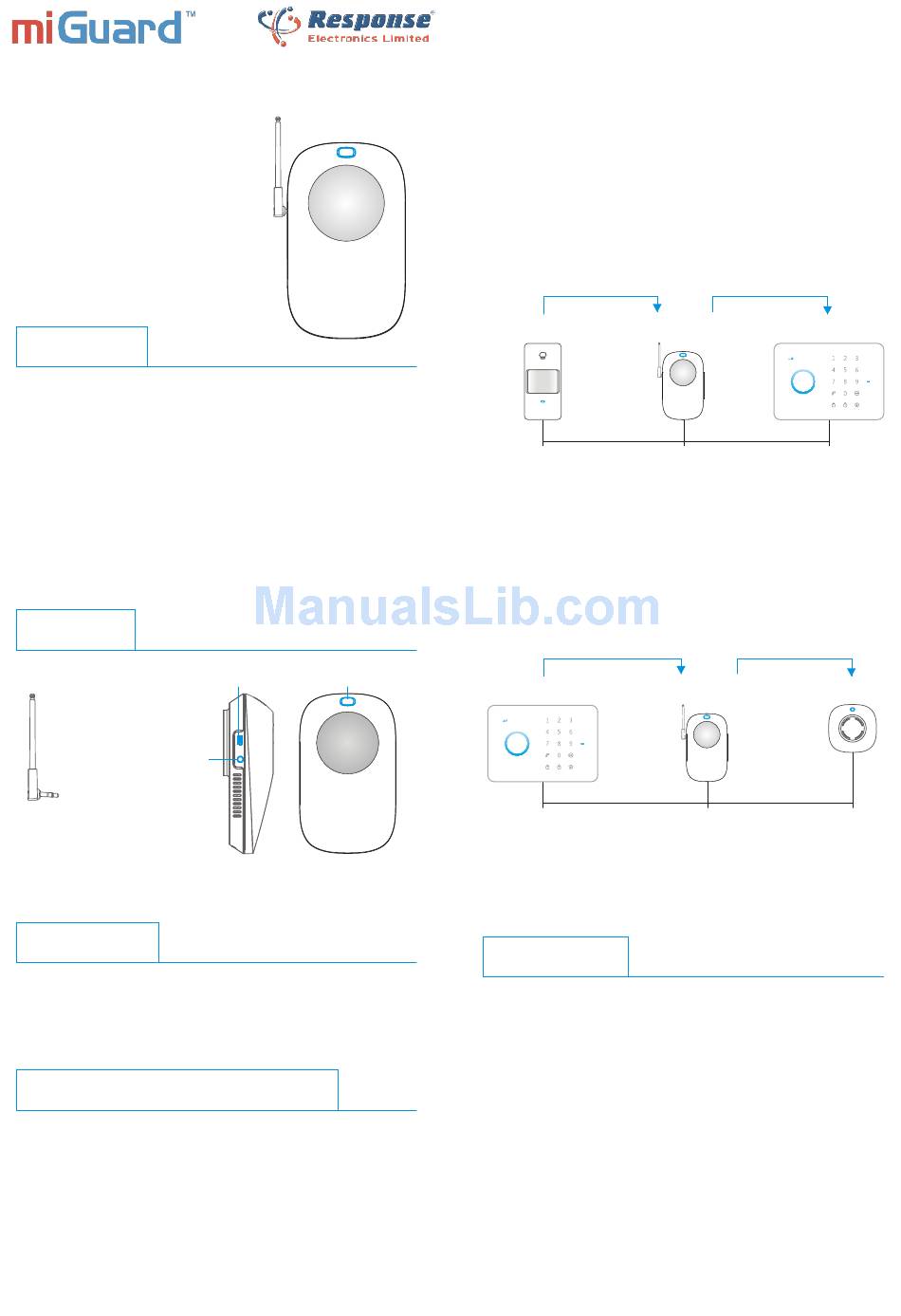

Appearance

Antenna
Interface for
External Antenna
Note: For optimum performance extend the antenna

LED Indication

Green LED on: working status
Blue LED flashes once: signal transmitting
Green and blue LEDs flash alternately: in learn/delete mode

Adding and Deleting Accessories

When adding or deleting accessories, the Repeater Unit must be in
learn/delete mode. Firstly, turn the switch from OFF to ON (if the
Repeater is in ON mode, switch it to OFF first and then switch it to
ON), the Repeater will enter learn/delete mode for one minute, as
indicated when the green and blue LEDs flash in turn.
Learn/Delete Button
Power ON/OFF
Extend Transmission Distance Between Accessories and
Control Panel
When the Repeater Unit is in learn/delete mode, press the
learn/delete button, then trigger a Wireless Sensor (e.g. press any
button on the Remote Control or trip the Sensor). The blue LED
lights up for 2 seconds and goes off, then the Repeater Unit goes
back into learn/delete mode and the blue LEDs flash alternately. You
can repeat the above operation to add more accessories.
Note: If the Repeater Unit exits learn/delete mode, switch off and then switch on the
Repeater to re-enter the learn/delete mode. Then repeat the above operation to add
more accessories.
Workflow:
Signal transmitting
Repeater Unit
Trigger Sensor or activate
receives signal
Remote Control
Max. distance
(in open area)≤ 90m

Extend Transmission Distance Between Control Panel and Siren

When the Repeater Unit is in learn/delete mode, press the
learn/delete button. Press the ARM button on the G5 Control Panel, for
all other System Control Panels press the SOS Button, successful
connection of the Repeater Unit to the Control Panel is made after the
blue LED lights up for 2 seconds and goes off, and then the green
and blue LEDs flash alternately.
Workflow:
Signal transmitting
Control Panel arm/
disarm/alarm
Max. distance
(in open area)≤ 90m
Deleting Accessories
When the Repeater Unit is in learn/delete mode, press and hold the
learn/delete button for 5 seconds, the Repeater Unit disconnects
from all accessories after the blue LED lights up for 2 seconds and
goes off. Then the green LED stays on.

Specifications

Power Supply: AC 110V-240V, 50/60Hz
Wireless Transmitting Range:
≤ 90m
Wireless Receiving Range:
Radio Frequency: 315MHz or 433MHz (±75KHz)
≤ 15.5mA
Static Current:
≤ 1.1A
Transmitting Current:
Maximum Accessories Suppor table:
Back-up Batter y: 3.7V 600mAh Lithium Batter y, 2.22Wh
Housing Material: ABS plastic
Operation Condition:
Temperature:-10°C ~ +55°C
Relative Humidity: ≤ 80% (non-condensing)
Dimension(L x W x H): 140x86x87mm
Signal transmitting
Control Panel
receives signal
Max. distance
(in open area)≤ 300m
Signal transmitting
Siren receives
Repeater Unit
signal
receives signal
Max. distance
(in open area)≤ 300m
≤ 300m
40 PCS
