Tivdio V-115 Manual

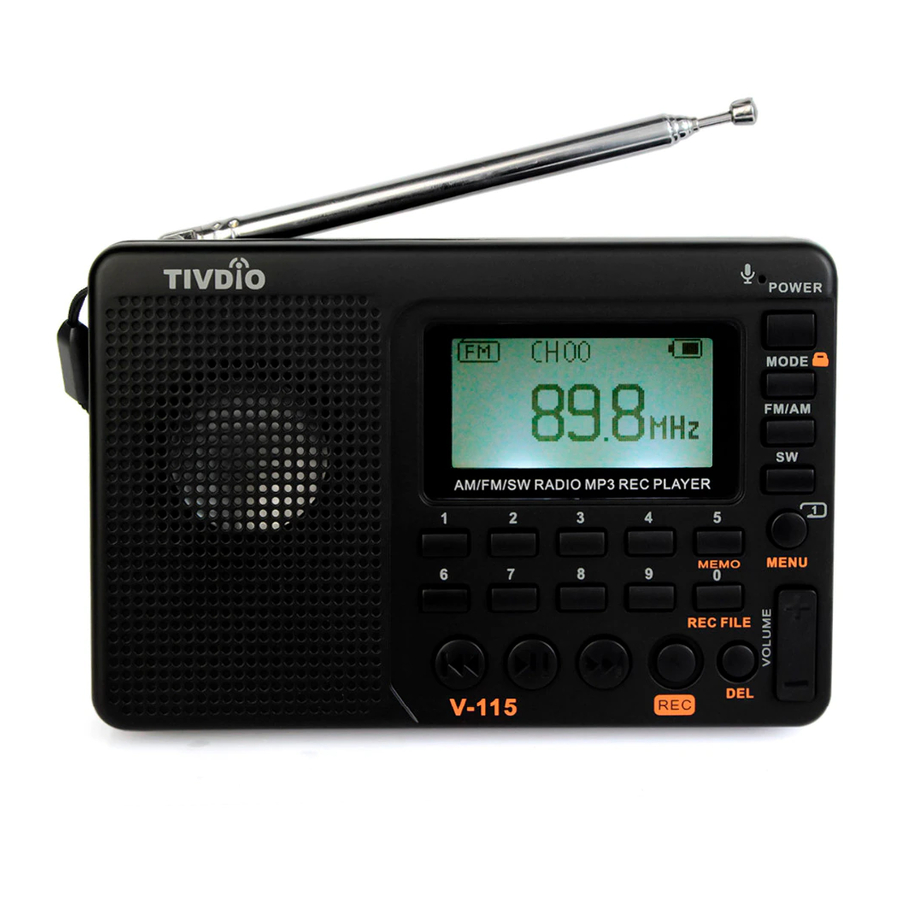

TIVDIO V-115 AM/FM/SW FULL BAND STEREO RADIO RECORDER
Thank you for purchasing the TIVDIO V-115. Please read the manual thoroughly before
operating and keep this book in a safe place for future reference.
Included items: V-115, Lithium battery, USB cable, Operational manual
Precautions
Before using this pocket-sized radio recorder, be sure to follow the basis safety tips to
guarantee safe and liable use of the product.
Read and understand all safety guidelines and use information.
Recommended to use the original lithium battery.
Please Use the charging device with the output voltage 5V, 500mA-1000A to avoid damaging the
lithium battery and device.
If the lithium battery will not be used for an extended period of time, please remove it, store it
separately, and remember to charge it once a month.
Do not allow the radio to come into direct contact with rain, moisture, or any liquid drops.
Avoid direct heat sources. Do not bake or blow dry the product.
Do not expose the device to direct sunshine for an extended period of time.
Do not drop the product or applying heavy pressure.
Diagram Location of Controls
Fm/sw antenna Display
MIC
Power switch
MODE key
Earphone jack
Audio input interface
AM/FM band key
SW band key
TF card slot
REPEAT/ System setup
Long press to invoke
recording
USB/ Charging interface
Volume key
Speaker
Previous key
DEL (Delete) key
Play/ Pause key
REC (Recording) key
Next key
System Menu
English
中 文
Espanol
定 时 关 机 Auto power
Off Time
对 比 调 节
Contrast Contraste
背 光 时 间 Back light time
Tiempo brillante
语 言 选 择
Language
Idioma
录 音 设 置 Record set
Record set
AM 步 进 设 置
AM Stepping set
AM Stepping set
返 回 主 界 面 Back
Espada
Introduction
AM/FM/SW Pocket-sized Full Band Radio Recorder is an integrated digital electric tuning radio that
can play MP3 and WMA files, Multilingual menu operation, that display lyric synchronously, supports
MIC Recording, Radio Recording, LINE IN Recording, and stereo earphone output, with a rechargeable
lithium battery (battery can be replaceabled with a larger capacity BL-5C battery to achieve longer
playtime).
Definition of key operations
There are 3 operation ways of pressing the keys: short press, long press and hold on. Unless expressly
stated all the operations are short press.
Short press: press the key once, and the function starts to work.
Long press: press and hold for more than 1.2 seconds and the function starts to work, and works only
one time.
Hold on: press the key and hold on till stop, the function works several times in a certain frequency,
such as fast forward/backward.
Displaying on screen
Displaying on TF Music Play Screen
Sound Effect mode
Time lapsed of the current music
Repeat mode
Format of the song file
Insert TF card
NOR 02:12
128
A 18:06 MP3
Song name and
synchronic lyric displayed
Displaying on the Radio Screen
Current radio
Mute
Battery power
Radio band
station saved
FM CH07
88.6
Frequency of the
MH
Z
1
Battery Power Supply
Install/Replace the battery:
1. Open the battery cover.
2. Insert the lithium battery according to the polarity indicated.
3. Close the battery cover.
4. Prior to using for the first time charge the lithium battery for 6 hours. After the first charge, charge
time should be about 4 hours.
5. Recommend: use the 5V, 500mA charger provided.
6. In normal cases, before charging the battery, please make sure the product is in the radio OFF mode.
During charging the LCD displays the "Charging Screen". The flashing battery power icon indicates
that the charging is in progress. When the battery is fully charged, the battery power icon will not
flash and will show full battery power. At this moment, it is suggested to continue to charge for 1-2
hours to guarantee the lithium battery reaches the maximum charging capacity.
Battery Consumption indicator:
1.Full
3.Low
Charging the Lithium Battery:
1. External Adapter (not included). Please use a matched adapter (5V DC/500mA, USB port) to charge
the radio.
2. Install the lithium battery.
3. To charge the battery, connect the Micro-USB cable to the radio, the other end to a USB adapter.
Battery power
4. While charging, the battery symbol shown on the displaymoves from right to left, and stops when the
battery is full charged. Then disconnect the radio and the adapter.
Note: When charging, Alternating current can interfere with receive radio signals, so it is not
recommended to use the radio when charging.
Do not use AC adapter or computer to power the radio to play music or listen to the radio when the
battery is unloaded.
Please unload the battery or fully charge it once in 2 months if the radio is not used for a long time.
Charged by PC
1. Connect the radio to the computer with the provided USB cable.
2. While charging, the battery symbol shown on the display moves from right to left.
3. The battery symbol stops moving when the battery is full charged.
Radio Operation
Power on/off radio:
1. Long press the Power button to turn on the device.
2. Extend the antenna.
3. Press the AM/FM or SW key to select the band.
radio station
4. Long press the Power button again to turn off the device.
Automatically search and store Station:
In the radio mode, long press the
stations have been automatically numbered and stored from low to high frequencies. When stations have
finished storing, press the
interfering radio station is saved automatically, long press the DEL key to delete it.
To save a radio station manually:
A. In radio mode, long press the
station is received, the search will stop and the radio station received will begin to play.
B. Directly input the frequency of a radio station: For example, the frequency of the radio station is
88.5MHz. Press the number keys 8, 8 and 5, then press the
jump to 88.5MHz.
*AM: the numbers that are 522+Multiples of 9 are valid; for North America 520+ Multiples of 10 are
valid
C. Shortwave Operation: Press the SW key to invoke metric waves in order:
60m (4.750MHz), 49m (5.950MHz),
31m (9.500MHz), 25m (11.650MHz),
13m (21.45MHz)
After selecting a metric wave, long press the
Invoke a radio station with the method described in the following A, B or C, and long press the MEMO
"5" key. The display will show radio stations saved confirmation information. Press the
the current frequency. The corresponding radio station number (CHXX) will appear on the screen.
2.Medium,
4.Exhausted
key to enter Automatic search and store Stations. The available
or key to invoke the radio stations stored and begin listen. If any
or key to search radio stations forward or backward. When a radio
key to confirm the input. The radio will
41m (7.100MHz)
22m (13.600MHz)19m (15.100MHz), 16m (17.500MHz),
key to search radio stations.
2
key to store
