Summary of Contents for HomePlace Structures Garden Chalet

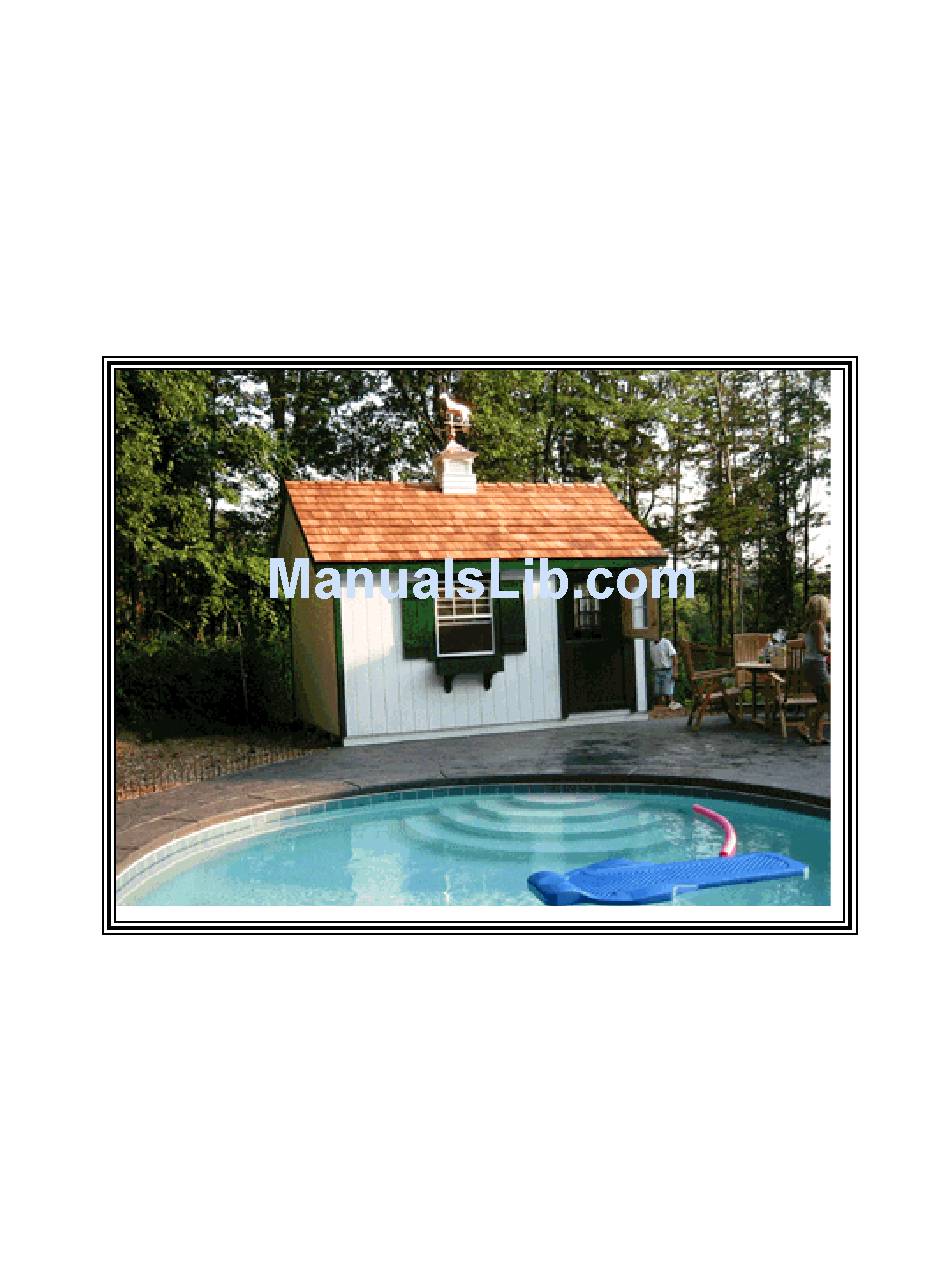

- Page 1 Garden Chalet Assembly Manual © HomePlace Structures...
-
Page 2: Tools Needed
Take a deep breath and get at it, the satisfaction and enjoyment of this building is only a few hours away. Have Fun!!!!! Remember, it is very important that you have a level site for your Garden Chalet, and that the floor is perfectly level prior to setting the walls. - Page 3 Step 3 Set second (smaller) floor sec- tion on level site. Once in place, unscrew floor boards and stack to side of floor. Need help? call 717-768-0804 page 1 © HomePlace Structures...
- Page 4 3 1/2”, as pictured. From the outside of the wall, nail through siding into the floor, making sure that the bottom 2x4 of wall is tight against the floor. Then, from inside wall nail through 2x4 bottom every 12 in. © HomePlace Structures...
- Page 5 Note: Door can be lifted off hinges if desired. Step 11 Repeat steps 7, 8, and 9 to install right side wall. Need help? call 717-768-0804 page 3 © HomePlace Structures...
- Page 6 Note: If your Garden Chalet model comes with the porch option, follow these directions. -Set 2 porch posts, into hole on porch floor. -Secure tops of posts to side walls, keeping top of posts flush with the end of sidewall top plate. Screw through top plate down into the posts.
- Page 7 Set the back roof section hooking top 1x4 into the point of the gable. Toe-nail rafter into the top plate, keeping cutout snug against siding. Need help? call 717-768-0804 page 5 © HomePlace Structures...
- Page 8 It is optional to use vise grip as pictured to hold roof sections together during installation. Note: Front roof sections should have same marking; rear roof sections should have same markings © HomePlace Structures Need help? call 717-768-0804 page 6...
- Page 9 Step 21 Install face-boards between gables on both front and back of playhouse. Keep bottom of face-board flush with the bot- tom of the gable face board. Need help? call 717-768-0804 page 7 © HomePlace Structures...
- Page 10 Use screws included with win- dow boxes. Step 25 To install the loft, start from the inside left gable, then on top of gable plate, fasten the 2x1 1/2 board with 3” nails. © HomePlace Structures Need help? call 717-768-0804 page 8...
- Page 11 Step 28 Install loft floor boards placing the two narrow boards out at each end. Step 29 Space boards accordingly, then fasten with 2” galvanized nails. Need help? call 717-768-0804 page 9 © HomePlace Structures...
- Page 12 Install cedar shingles with 3/4 staples. Apply using standard application as shown on shin- gle instructions. It is recommended that you involve someone who has experience in roofing to shingle the playhouse. Need help? call 717-768-0804 page 10 © HomePlace Structures...
- Page 13 Congratulations! Your Garden Chalet is now ready for you to enjoy for years to come! © HomePlace Structures Need help? call 717-768-0804 page 11...
