User manual LFX Master DMX page 3 of 35 Content Chapter Topic Page Intended use Safety instructions General features Control panel & DMX-512 connections, power supply Pre-programmed effects Dimmer MAX & min Three output channels Transitions function Mechanical mounting General set-up procedure Online configuration tool www.lfxmaster.com... -
Page 4: Intended Use
Please read this manual carefully before operation and follow the safety information. The LFX Master DMX lighting effect generator allows for control of lamps connected at the DMX-512 output. The DMX-512 input allows for remote control of the unit or to extend the functions using an external dimmer console. -
Page 5: General Features

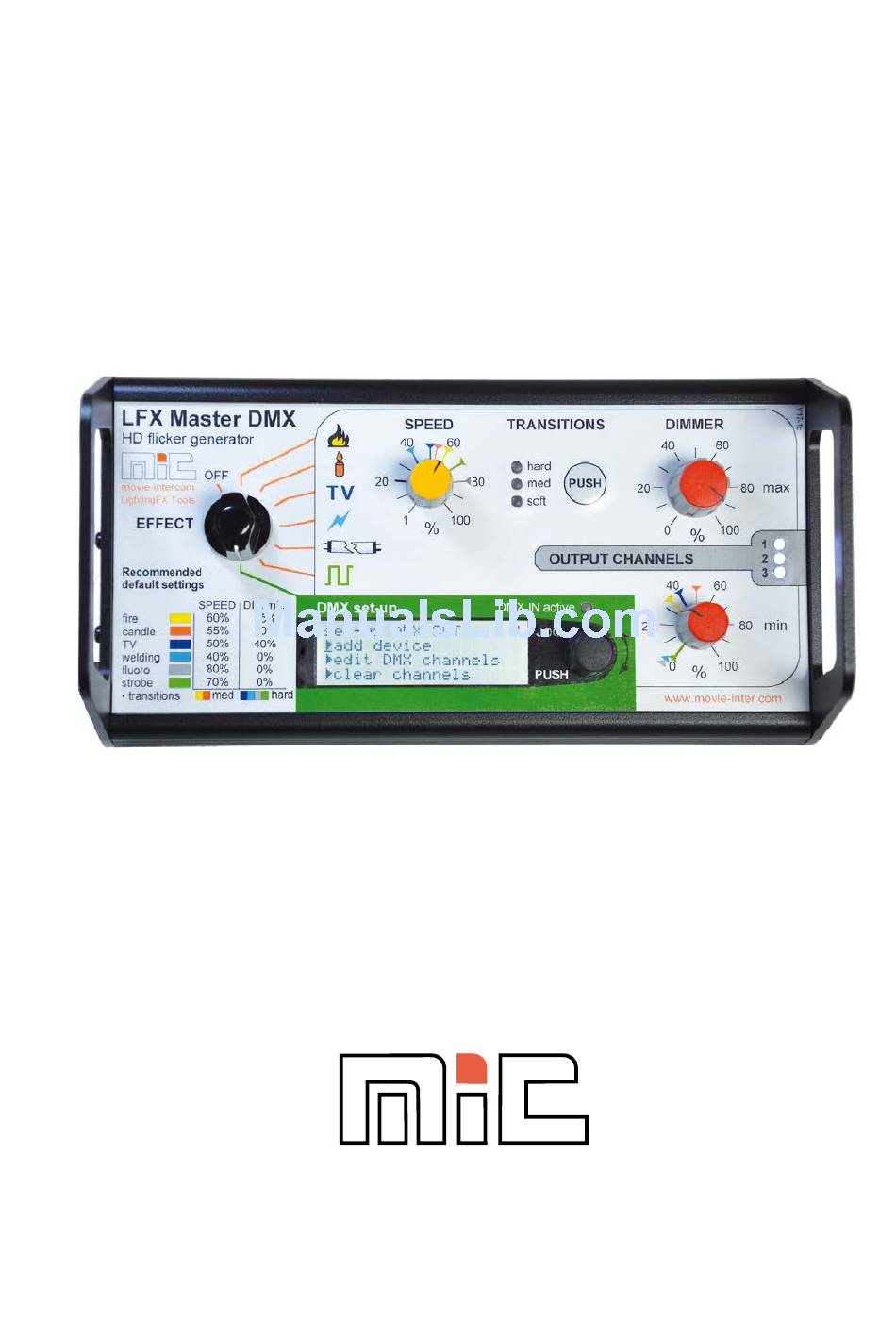

User manual LFX Master DMX page 5 of 35 Chapter 3 General features 3.1 Control panel shapes edges of a flicker curve Effect presets DMX configuration IN & OUT Start using the default settings of an effect. Dimmer values for channel 1-3 A coloured label represents the recommended default settings - set SPEED, TRANSITIONS and DIMMER min to the corresponding coloured markers located on each scale. -
Page 6: Pre-Programmed Effects
Plug-in the mains connector to 100 - 240 VAC/ 50 to 60 Hz. Please replace the interchangeable adaptor plug for EU, US, UK, AU. Connect the round DC-plug to the LFX Master DMX´s DC input 1 or 2. Alternatively use a battery (5 - 32 VDC) with a round standard 2.1mm power plug, center positive. -
Page 7: Dimmer Max & Min
User manual LFX Master DMX page 7 of 35 3.3 Dimmer MAX & min Each generated lighting effect can be dimmed. The LFX Master DMX provides the limitation of the … - upper ("max") brightness level Monitor of - lower ("min") brightness level. -
Page 8: Three Output Channels
Therefore a fire effect may look more realistic if it is created by lighting sources from diffe- rent directions. The 3 channel “fire” preset of the LFX Master DMX automatically alternates the dim levels of each channel the way a real flame would behave – flickering shadows. -
Page 9: Transitions Function
Choose the transition mode depending on the used type and size of lamp (bulb inertia). Thus any lighting effect looks excellent – with a 10K, a redhead, a household type 60 W bulb, fluoros or LED. The “Transitions” feature of the LFX Master DMX also modifies the transitions between the channels Also use “Transitions”... -
Page 10: General Set-Up Procedure
User manual LFX Master DMX page 10 of 35 3.7 General set-up procedure First of all choose the lamp(s) you would like to control. Got through steps 1 to 3. Power up @ DC-input 5-32 Turn "EFFECT" to position Turn "EFFECT" to any EF- VDC 1 or 2 "DMX set-up"... -
Page 11: Quick Start Guide
User manual LFX Master DMX page 11 of 35 Chapter 5 Quick start guide for DMX OUT Example here: KinoFlo "Select LED" 1. Connect a DMX device at DMX OUT 2. Turn "EFFECT" to position "DMX set-up". Connect the "Select LED" via DMX @ DMX OUT Turn/push the JOG for navigation through the menu. -
Page 12: Product Overview, Use Of Jog
User manual LFX Master DMX 2.0 page 12 of 35 Chapter 6 Product overview The main purpose of the display is the DMX configuration and it signals received DMX data when detected, then the green indicator "DMX IN active" is on. -
Page 13: Menu Map
User manual LFX Master DMX 2.0 page 13 of 35 6.1 Menu map - table 1 of 2 edition June 2018- en 2.0.1 www.movie-inter.com... - Page 14 User manual LFX Master DMX 2.0 page 14 of 35 6.1 Menu map - table 2 of 2 edition June 2018- en 2.0.1 edition June 2018- en 2.0.1 edition June 2018- en 2.0.1 www.movie-inter.com www.movie-inter.com www.movie-inter.com...
-
Page 15: Configuration Of Dmx Out Overview, Device Library
User manual LFX Master DMX page 15 of 35 6.2 configuration of DMX OUT overview There are two ways to configure DMX OUT: The most easy way: Expert mode: customize DMX OUT configuration Use a device preset from the fixture library... -
Page 16: Device Library For Kinoflo
"real" values like "2500" Kelvin or Hue Angle in degrees, gels by gel name. The LFX Master DMX will convert these entries to DMX values not visible for the user. After confirmation of the suggested settings you will see instructions on the screen of the - LFX Master DMX how to set-up the connected device. -
Page 17: Kinoflo Gel Library
User manual LFX Master DMX page 17 of 35 6.2.1 Kinoflo device library (continued) Gel library listed in alphabetical order for GELS/HUE mode - NO GEL- KF Blue Screen Pale Amber Gold Alice Blue KF Candle Flame Pale Blue Apricot... -
Page 18: Device Library For Arri
User manual LFX Master DMX page 18 of 35 6.2.2 Arri device library valid for LED fixtures using 8 bit resolution L5-C, L7-C, L10-C CCT, mode 2 RGBW, mode 4 CCT = 2800 ... 10000K for L5-C for L5-C CONFIRM SETTINGS... -
Page 19: Arri Gel Library
User manual LFX Master DMX page 19 of 35 6.2.3 Arri device library (continued) Broadcaster 2+ CCT = 2800 ... 6500K for Broadcaster 2+ CONFIRM SETTINGS address = function 001 DIM OUT 1 002=CCT 2800K 003=G/M 0 G/M 004=RES fix 000... -
Page 20: Device Library Other
User manual LFX Master DMX page 20 of 35 6.2.3 Other device libraries 2 channel generic LED preset Tungsten: for other LED fixtures for 12 channel tungsten dimmer for 2CH generic for tungsten CONFIRM SETTINGS CONFIRM SETTINGS address = function... -
Page 21: Device Preset Set-Up
User manual LFX Master DMX page 21 of 35 6.2.4 Device preset set-up If a device preset is added the LFX Master DMX automatically looks for the next available continuous DMX channel block required. Alternatively choose an arbitrary DMX start ad- dress. -
Page 22: Customize Dmx Out Channels In "Expert Mode
User manual LFX Master DMX page 22 of 35 6.2.5 Customize DMX-OUT channels in "Expert mode" 1. Turn "EFFECT" to position "DMX set-up" 2. Navigate to "DMX OUT" > "edit DMX channels" Expert mode DMX OUT address > function Copied parameters from a device preset. -
Page 23: Function Overwrite A Dmx Channel
User manual LFX Master DMX page 23 of 35 6.2.7 Function overwrite a DMX channel This function simplifies the configuration if DMX input channels and output channels are used. DMX channels in a DMX universe are unique. For that reason it would be a conflict if you try to use a DMX channel as an output channel and input channel. -
Page 24: Configuration Of Dmx In/-Presets Overview
LED fixture on a fader of the control of the three LFX Master DMX console. output channels (also use as RGB - Put speed setting of the LFX Master separate adjustment for TV effects) DMX on a second fader. -
Page 25: Use Of External Dimmer Console
25 of 35 6.3.1 Use of an external dimmer console With an external dimmer console you can extend the functionality of the LFX Master DMX. We recommend to apply a simple 12 channel DMX console. See more details > next page Use LFX Master DMX with a dimmer console. -
Page 26: Dmx In Preset "3X Out Separate Dim Control
6.3.2 DMX IN preset "3x OUT separate dim control" This preset allows for separate control of the three output channels of the LFX Master DMX. If selected the input DMX channels are allocated to the dim functions of the flicker box. -
Page 27: Dmx In Preset "Full Remote Control
27 of 35 6.3.3 DMX IN preset "full remote control" This preset loads all required settings for remote control of the LFX Master DMX via DMX. Remote control is disabled if switch "EFFECT" is on position "DMX set-up". In remote control mode... -
Page 28: Use The "Enable"-Function For Remote Control
28 of 35 6.3.4 DMX IN "Enable"-function This function adds a trigger function to the LFX Master DMX. If the DMX value for this input channel is < 5% all DIM OUT channels will be disabled, if the value is > 5% the selected effect will be used. -
Page 29: Custom Dmx In Patching
User manual LFX Master DMX page 29 of 35 6.3.5 Custom DMX IN patching (Expert Mode) With this feature you are able to individually "outsource" every DMX channel along with its according function to a dimmer console. given DMX OUTPUT configuration Example here: Kino Flo Select LED in mode "GELS/HUE"... -
Page 30: Indicating Dmx In Values
User manual LFX Master DMX page 30 of 35 6.3.6 Indicating DMX IN values If a DMX IN source is deteced AND the rotary knob EFFECT is on any effect position the DMX input values are displayed. Remote control is disabled if switch "EFFECT" is on position "DMX set-up". -
Page 31: Software Update
User manual LFX Master DMX page 31 of 35 Chapter 7 Software update The LFX Master DMX functions are based on software. required equipment Updating the software may add new features. - micro SD-card (max. 32 GB) To update the software you will need a micro SD-card, - Screwdriver TX10 type SD or SDHC, max. -
Page 32: Trouble Shooting
User manual LFX Master DMX page 32 of 35 Chapter 8 Trouble shooting Basic conditions for operation 1. The device and - especially the power supply unit - has no damages. 2. The operation voltage is 100 - 240 VAC @50/60 Hz or powered by USB with adaptor. -
Page 33: Specifications
(MAX & min) control for output channels 1, 2 and 3 remote control via DMX IN for all effects DMX patch to any device channel or LFX Master DMX func- tion resolution preset 24 fps, 60 seconds loop @ default value HD effects Fire, Candle, TV, Welding, “broken”... -
Page 34: Cleaning & Disposal
The product is labelled with the symbol shown to the right. If you wish to dispose this product, this symbol obliges you to do so separately from industrial sorted waste. Waste equipment should be shipped to movie-intercom. We will dispose the waste for you. Electrical equipment does not belong in regular waste. -
Page 35: Address & Support
User manual LFX Master DMX page 35 of 35 Chapter 10 Address & support Please do not hesitate to contact movie-intercom. postal address movie-intercom Bluecherstr. 21 10961 Berlin Germany " phone 24h / 7 days +49 30 2232 0575 +49 30 2232 0571 e-mail support@movie-inter.com...
