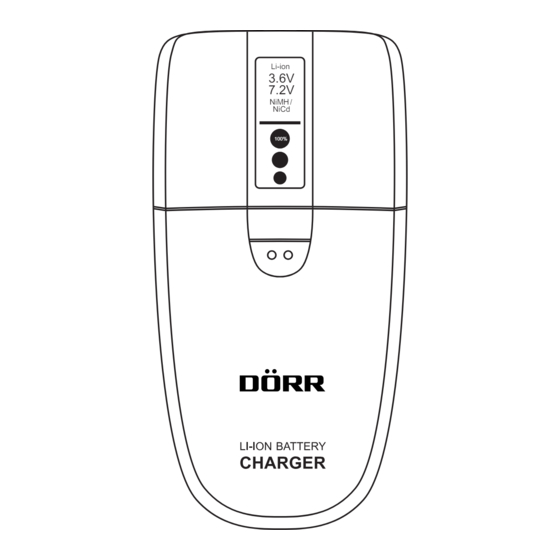

LCD 1 Universal Battery Charger
Instruction Manual
Congratulations on your purchase of the outstanding DÖRR LCD 1 Universal Charger. This manual will assist you to use the charger properly.

FEATURES

• Compatible with most 3.6V - 3.7V or 7.2V - 7.4V Li-ion batteries for digital cams or mobile phones.
• Either 2AA/AAA size NiMH batteries can be charged simultaneously
• Auto voltage selection 100-240V
• Automatic polarity detection +/-
• Easy adjustable slide contact
• Auto cut off device & Timer protection
• Auto recognition of 3.6V/7.2V Li-ion and NiMH batteries
• LCD automatically indicates battery type, voltage and charging status
• Adopt non- continuum pulse charging current avoids memory eff ect, enhances the charging effi ciency and increases the battery performance and lifetime.
• Trickle charge function for NiMH batteries
• The charger is supplied with multivoltage 100-240V AC adapter for indoor use and DC 12V car adapter for outdoor use
Multi Voltage AC 100-240V
AC Adapter
DC 12V Car Adapter
CAUTION !
Do not charge abnormal Li-ion batteries (battery voltage below 2.8V ). This may damage your charger and cause a problem to your own safety.

SAFETY HINTS

1.
Do not charge Ni-MH & Ni-Cd rechargeable batteries at the same time.
2.
This product is designed for Li-ion rechargeable batteries and NiMH batteries only. To avoid personal injury and
damage, do not charge any primary alkaline, zinc chloride, or zinc carbon type batteries.
3.
Do not expose the charger to rain or moisture.
4.
Do not operate the charger using an extension cord.
5.
Do not use the charger if it has received a sharp blow, been dropped, or damaged in anyhow.
6.
To reduce risk of shock, disconnect the power adaptor from outlet before attempting any cleaning of the charger.
7.
Do not charge a leaking, corroded or dead battery.
8.
Do not attempt to repair charger by yourself. When service or repair is required, contact qualifi ed service personnel.
9.
Do not try to disassemble the charger.
10. Always disconnect the charger from the mains when not in use.
11. Store the charger in a cool and dry place when not in use. Keep it away from children.

IMPORTANT NOTES

1.
This charger is not compatible to all INFO-Lithium Series Rechargeable Battery Packs as well as SONY NP-FR1, NP-FC10 / CANON LP-E6 etc.
2.
The dimensions of the Li-ion batteries have the limitation as follows:
• The width of the Li-Ion battery cannot be in excess of 4cm.
• The distance between 2 pins of the Li-ion battery must be more than 3mm.

WEEE information

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The
main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means
that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points.
Disposing of this product correctly will help to save valuable resources and it is a signifi cant contribution to protect our environment as well as human health. For more information about the correct disposal of
electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

RoHS conformity

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

CE marking

The CE marking complies with the European directives.
GB
