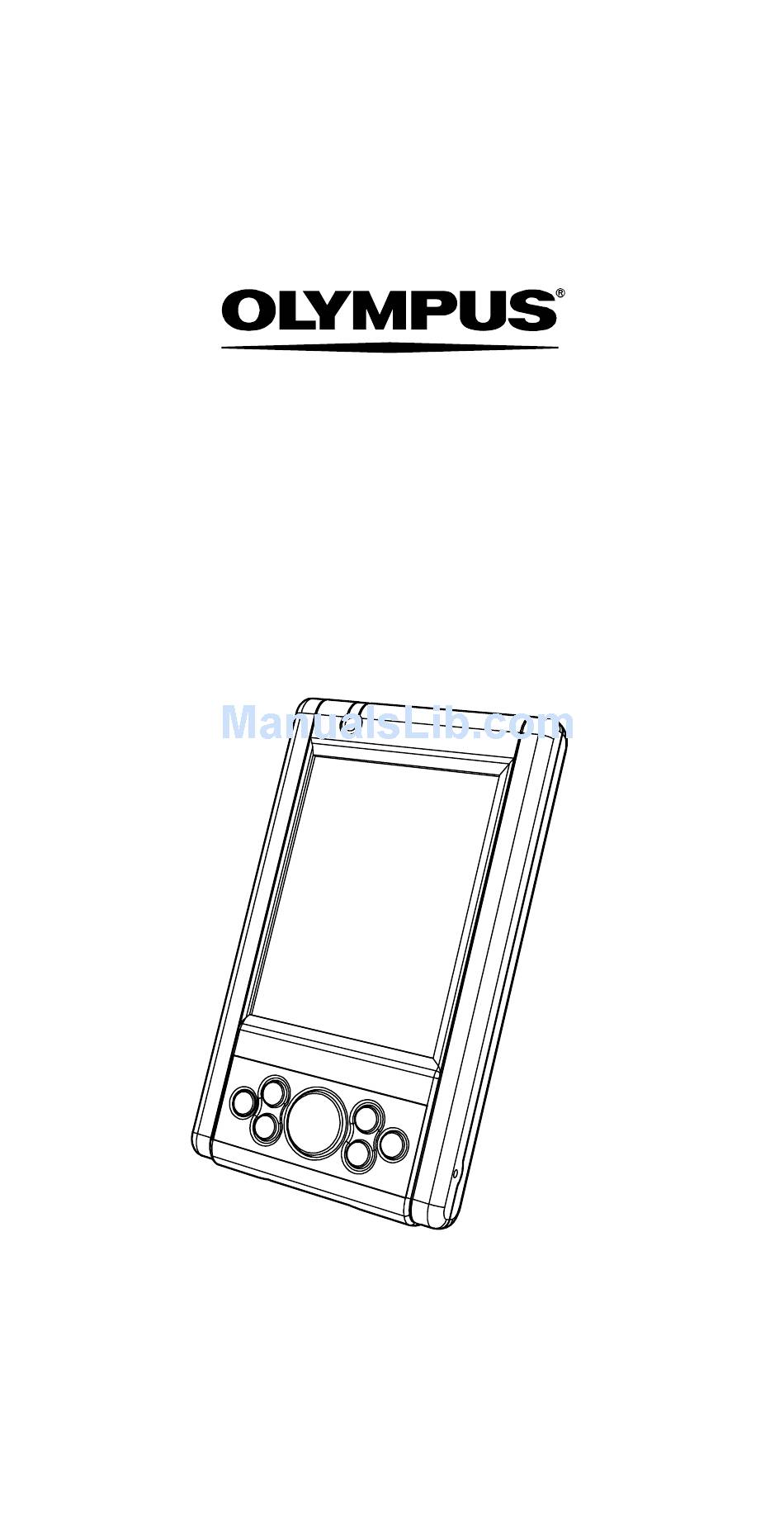

  • Page 1 Quick Reference Guide R1018 Series...
  • Page 2 © 2004 OLYMPUS TECHNOLOGIES SINGAPORE PTE LTD. All rights reserved. Olympus reserves the right to make changes to any product to improve reliability, functionality or design. Olympus does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

  • Page 3: Table Of Contents

    Table of Content Introduction Model Configuration ........3 Accessories ............ 3 Parts of the R1018 series ....... 4 Getting Started Charging the Battery ........5 Starting the R1018 ......... 5 Aligning the Screen ......... 6 Using the Keypad and the Side Button ... 7 Using the Stylus ..........
  • Page 4 Using Online Help ........22 Maintaining the R1018 ........ 23 Troubleshooting ......... 24 Regulatory and Warning Information ..28 Service Information ........33...

  • Page 5: Model Configuration

    Introduction Thank you for your purchase of R1018 terminal. This guide describes how to set up and use the terminal. The term R1018 refers to the entire batch. Model Configuration R1018-xx20-yyy-zz: This is a basic handy terminal of the series with color display, WiFi and Bluetooth radio function.

  • Page 6: Parts Of The R1018 Series

    Parts of the R1018 Series LCD Display Keypad Communication Port Speaker Stylus Audio Connector Side Button Reset Switch IrDA Port...

  • Page 7: Getting Started

    Getting Started Before you can use your R1018, perform these basic setup procedures: • Charge the battery • Start the R1018 Charging the Battery Before using your R1018 for the first time, charge the built-in Lithium-Polymer battery for about 3 hours using the USB Sync Cable with AC Adapter attached.

  • Page 8: Aligning The Screen

    Aligning the Screen Remove the Stylus from its storage silo on the back of the R1018. To align your R1018, the cursor on the touch screen needs to be aligned with the tip of your Stylus. • Tap and hold the center of each target that appears on the screen with the tip of the Stylus.

  • Page 9: Using The Keypad And The Side Button

    Using the Keypad and Side Button Power Enter Cursor Action Power Press Power to either set the R1018 to standby or ON mode. Press F1 to start Word Pad. Press F2 to start Internet Explorer. Press F3 to start Media Player.

  • Page 10: Using The Stylus

    Using the Stylus The Stylus selects items and enters information. The Stylus functions as a mouse. • Tap: Touch the screen once with the Stylus to select an item or option. • Double-Tap: Touch the screen twice with the Stylus to open an item. •...

  • Page 11: Initiating The Screen

    Initiating the Screen When you turn on your terminal, the Desktop screen appears. You can also display it by tapping the Desktop icon at the lower right of the screen. On the Desktop screen, you can see the programs. You can start the programs by tapping on the Start Menu.

  • Page 12: Input Methods

    Input Methods Tap the Input method icon to pop up and hide the Software Keyboard. Keyboard Turn on and off the Backlights By pressing the Power Key and holding it, the backlights of the LCD Display and Keypad can be switched on/off in following order: •...

  • Page 13: Resetting Your R1018 Terminal

    Resetting Your R1018 Terminal If your R1018 terminal stops responding to input, reset it. Performing a Soft Reset Push the Reset Switch with a Stylus gently to perform a soft reset. A soft reset restarts your R1018 terminal and saves all stored records and entries.
  • Page 14 • Realign the screen. Note: With a hard reset, Formats, Preferences, and other settings are restored to their factory default settings.

  • Page 15: Host Communications

    Host Communications The R1018 series terminal can communicate with a host PC through its communication port using the USB Sync Cable. Refer to www.olympus-ost.com for software download. Using the USB Sync Cable To communicate through the USB Sync Cable: • Ensure all connections between the USB Sync Cable and the host computer are secure.

  • Page 16: Using Wireless Communications

    Using wireless communications The R1018 series terminal can communicate with other device through wireless communication functions, IrDA, Bluetooth and WiFi. Establishing Active Sync via IrDA On PC 1. Go to PC and start Active Sync. 2. Configure Active Sync settings •...

  • Page 17: Establishing Active Sync Via Bluetooth

    Establishing Active Sync via Bluetooth On PC 1. Start Active Sync. 2. Select File, click “Connection Settings”, select the com port of your Bluetooth device 3. Uncheck “Allow USB Connection” and click “OK” On R1018 1. Ensure Bluetooth port is enabled. (Start >...
  • Page 18 1. Enable Bluetooth. (Start > Settings > Control Panel > IR-Bluetooth) 2. Tap “OK” 3. “Bluetooth Selected” pop-up window will appear. Tap “OK”. 4. R1018 will auto perform soft reset. 5. Make a new Connection: “XXXX”. (Start > Settings > Control Panel > Network and Dial-up Connections) 6.
  • Page 19 • For long distance call : 01FG • For international call: 001EFG 21. Tap “OK” 22. Enter “65” (for Singapore) for country / region code, blank for region code 23. Tap “OK”. 24. Logon to GPRS: • Double tap on the “XXXX” icon. •...

  • Page 20: Connecting To The Bluetooth Access Point

    Connecting to the Bluetooth access point 1. Click “Bluetooth Monitor” application icon on the Desktop to discover the Bluetooth access point within range. 2. Click “File > Connect to PAN”. 3. Click “Connect” on the “XTND LAN Connect window”. 4. Select the Bluetooth access point from the “Device Selection”...

  • Page 21: Browsing Internet Via Wifi

    Browsing Internet via WiFi With the R1018, you can connect to internet across a wireless network. By Default, WiFi is turned OFF. 1. To Enable WiFi, press Function keys F2+F4 on the Keypad. Progressing status Bar to start the wireless LAN, appears on the Desktop. 2.
  • Page 22 3. Tap “Add New…” to create a new Connection. The device tries to locate Access Points (AP) in the area when it locates a Wireless LAN. 4. Enter the Network “SSID” value. Note: For encryption and authentication, see your network administrator for this information.
  • Page 23 5. Tap “Connect” on the WLAGS46B1 window. 6. Verify if the “IP Address” is obtained. 7. Select Start > Programs > Internet Explorer. 8. Enter the Proxy address. • Tap Tools >Options >Connection. • Check “Use LAN (no autodial)”. • Check “Access the Internet using a proxy server”.

  • Page 24: Using Online Help

    Using Online Help The online help is installed as a default. You can get more information about both operating systems from there. To use online help, show Start Menu icon and tap Help icon. Help icon Tap Start Menu icon...

  • Page 25: Maintaining The R1018

    Maintaining the R1018 To maintain your R1018 in good working condition: • Do not scratch the screen. Use the supplied Stylus or plastic-tipped pens intended for use with a touch-sensitive screen. Never use a pen or pencil or other sharp object on the screen.

  • Page 26: Troubleshooting

    Troubleshooting Problem Cause Solution R1018 does not Lithium-Polymer Charge the Lithium- turn on. battery not Polymer Battery in charged. the R1018. System crash. Perform a hard reset. Rechargeable Loose Check the Lithium-Polymer connections. connection on your battery did not R1018 and wall charge.
  • Page 27 Incorrect cable See your System configuration. Administrator. Communication Download setup software was program from incorrectly www.olympus- installed or ost.com and configured. perform setup again. No sound is Volume setting Check the System audible. is low or turned Volume slider in the off.
  • Page 28 Problem Cause Solution R1018 does not Character Refer to the Block recognize my strokes written Recognizer. handwriting. incorrectly with the stylus. Tapping the LCD screen Align the screen. screen buttons does not be Choose Align or icons does aligned Screen from not activate the correctly.
  • Page 29 Problem Cause Solution Failed to sign-in System clock Set system clock at to Messenger not set to taskbar to current service. current date and date and time. time. Failed to Access Point Check your Access configure does not Point Encryption encryption and support the type and Authentication...

  • Page 30: Regulatory And Warning Information

    Regulatory and Warning Information RF Exposure Guidelines This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20 cm between the radiator and user’s body. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except when used with the Bluetooth transmitter FCC ID identified in the label that is pasted onto the equipment.
  • Page 31 any interference received, including interference that may cause undesired operation. Kindly refer to FCC RF Exposure for more information concerning IC radiation exposure statement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
  • Page 32 5. Equally Average Use of Frequencies in Data Mode and Short Transmissions The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) is the 24 LSB's of the 48 BD- ADDRESS.
  • Page 33 same frequency, it is send on the next frequency of the hopping sequence. 7. Dwell Time in Data Mode The dwell time of 0.3797s within a 30 seconds period in data mode is independent from the packet type (packet length). The calculation for a 30 seconds period is as follows: Dwell time = time slot length * hop rate / number of hopping channels *30s...
  • Page 34 So it is ensured that also in hybrid mode, the frequency is used equally on average. Example of a hopping sequence in inquiry mode: 48, 50, 09, 13, 52, 54, 41, 45, 56, 58, 11, 15, 60, 62, 43, 47,00, 02, 64, 68, 04, 06, 17, 21,08, 10, 66,70, 12, 14,19, 23 Example of a hopping sequence in paging mode: 08, 57, 68, 70, 51, 02, 42, 40, 04, 61, 44, 46, 63, 14, 50, 48, 16, 65,...

  • Page 35: Service Information

    Singapore iDA requirements. Battery Caution Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instruction. Service Information Refer to www.olympus-ost.com to get more information.
  • Page 36 SNE101483, Revision A Olympus Technologies Singapore Pte Ltd 41 Science Park Road #04-17/18 The Gemini Singapore Science Park 2, Singapore 117610 Tel: (65) 6777 8978 Web Site: www.olympus-ost.com...
