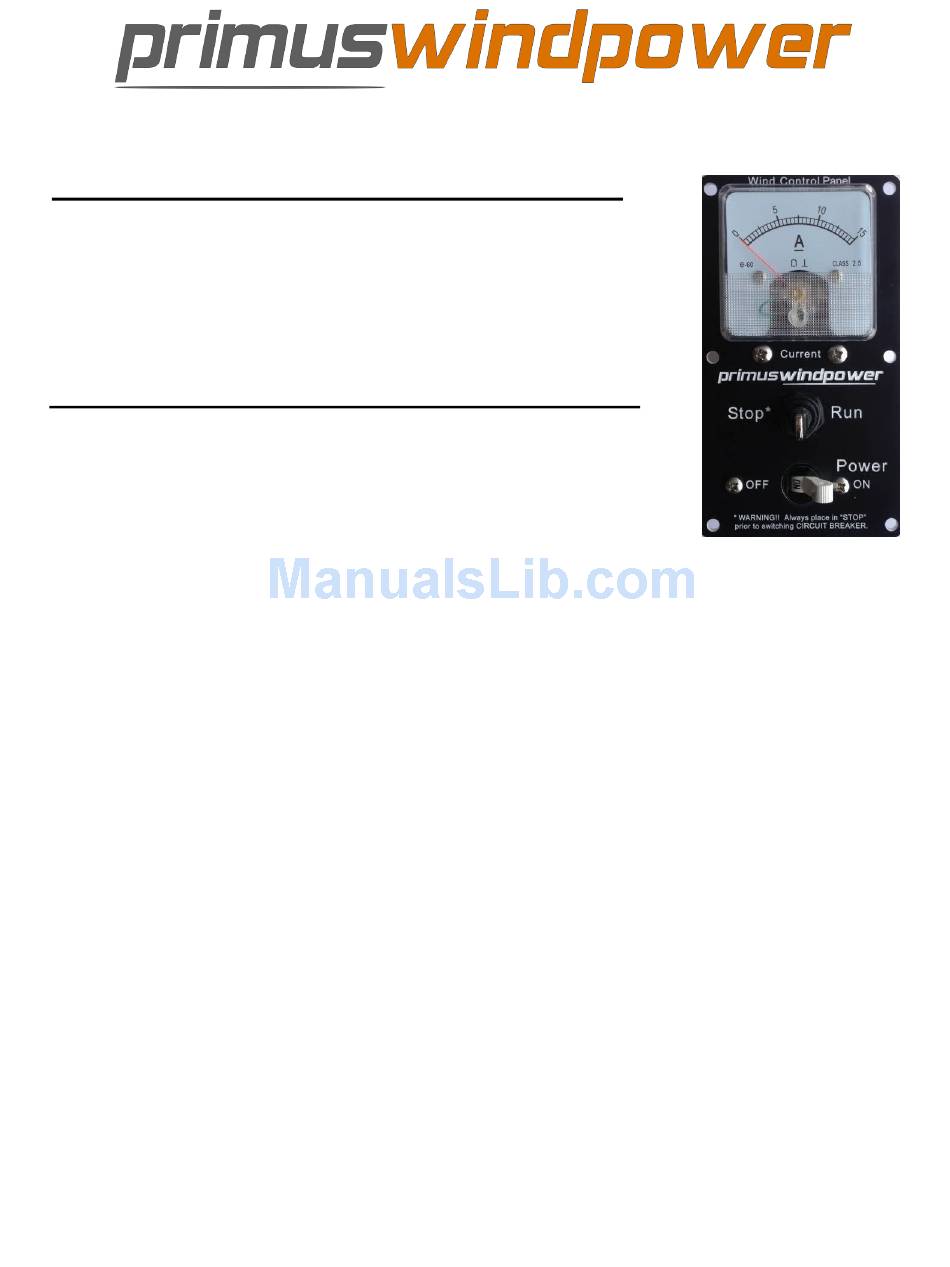

Wind Control Panel Instruction Manual
(for use with AIR Breeze and AIR 40 12V turbines)
The wind control panel is fully calibrated and ready for
installation. Please follow the instructions below for proper
installation.
P/N
VOLTAGE
2-ARAC-103
12 VDC 160 W TURBINE
2-ARAC-104
24 VDC 160 W TURBINE
2-ARAC-107
48 VDC 160 W TURBINE
2-ARAC-108
12 VDC 400 W TURBINE
OVERVIEW:
The POWER switch is used to turn the wind turbine control panel on and off as well as provide
protection in the case of a major fault. The STOP-RUN toggle switch controls the operation of the
wind turbine. In the RUN position, it allows the wind turbine to operate and produce power while
in the STOP position it places an electric brake on the wind turbine spindle stopping the rotation (in
this mode, slight blade rotation may occur in strong winds). The center position is an OFF position
(disconnecting the wind turbine), but is not recommended. The Ammeter monitors the wind
turbines production.
The wind control panel should be connected to a wind turbine with a current rating equal to or less
than the panel's rating. The Air Breeze and Air 40 units have built-in battery charge regulators. If a
wind turbine is utilized that does not have a built-in regulator, an external diversion load controller
will be necessary to provide proper protection from over charging the battery bank.
Disconnect battery(s) prior to making connections. Secure the rotor blades of the wind turbine
mechanically so that it is unable to rotate.
Pg.1/5
BREAKER
AMMETER
25A
15
10A
5A
8
40A
30
Warning
938 Quail Street
Lakewood, CO 80215
primuswindpower.com
8
PWP Wind Control Panel Manual 2 -ARAC-103
Advertisement
Table of Contents
Summary of Contents for Primus Wind Power 2-ARAC-103
- Page 1 The wind control panel is fully calibrated and ready for installation. Please follow the instructions below for proper installation. VOLTAGE BREAKER AMMETER 2-ARAC-103 12 VDC 160 W TURBINE 2-ARAC-104 24 VDC 160 W TURBINE 2-ARAC-107 48 VDC 160 W TURBINE...
-
Page 2: Electrical Installation
MECHANICAL INSTALLATION: Locate a suitable mounting area for the Wind Control Panel, preferably close to the battery bank and maintaining the ability to view the meter and operate the controls. Panel Mount: The panel should be mounted in a clean and dry environment. Be sure the mounting location is mechanically sound. -
Page 3: Troubleshooting
Caution Interconnect wire sizing (wind turbine/input and battery bank/output), of the control panel is critical to proper operation of the wind turbine. Consult a Wire Sizing Table to confirm the minimum appropriate wire size for a voltage drop of less than 3%. A wiring sizing table is available at www.primuswindpower.com under Wire &... - Page 4 START UP: Remove the mechanical tie off of the wind turbine. Turn the POWER switch to the ON position and the RUN-STOP switch to the RUN position. If there is sufficient wind present, the wind turbine should begin turning and current should be displayed by the Ammeter. However, if the battery bank is fully charged, the wind turbine will not rotate.
- Page 5 Wind Control Panel Connection Diagram Wind Generator Connection Diagram Wind Generator Battery to Fuse connection max of 7" Mechanically support per ABYC Fuse (optional) BLACK wires in mast from pulling on splices. Battery Bank 12/24 VDC House Battery Notes: Wire size is critical to the successful operation of the alternat ive energy system.
- Page 6 Appendix Wind Control Panel 1:1 Cutout Cut along dotted line Drill 6 Holes 3/16 inch 938 Quail Street Lakewood, CO 80215 primuswindpower.com Pg.5/5 PWP Wind Control Panel Manual 2 -ARAC-103...
