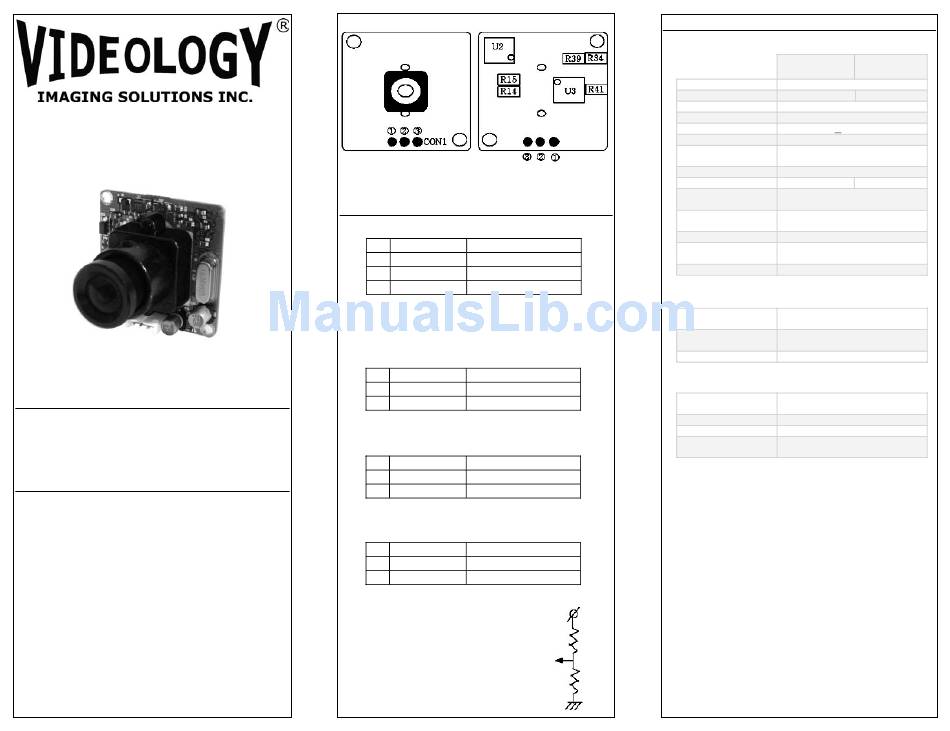

Videology 20VC335 EIA Operation Manual

Operation Manual
20VC335 (EIA) / 21VC335 (CCIR)
BOX CONTENTS
1. Camera module
2. Connection cable
3. User manual
SAFEGUARDS & WARNINGS
Prior to installation and use of this
product, the following WARNINGS should
only be observed.
1. Installation and servicing should only
be done by Qualified Service and
Installation Personnel.
2. Installation shall be done in accordance
with all local and national electrical and
mechanical codes.
3. Use only installation methods and mate-
rials capable of supporting four (4) times
the maximum specified load.
04/10/08 INS-20VC335 Rev A
Bottom View
Top View
Control Functions
1) Connector (CON1)
Pin Wire Color Remark
1 Red 12VDC Power Input
2 Black Common / Ground
3 White Video Out (1Vp-p)
NOTE: See 20K14X User Manual (attached)
2) Mirror Mode
Presetting ---> Mirror off (R15 In)
Pin Mirror Remark
1 On R15 Delete
2 Off R15 Insert
3) Electronic Exposure (Auto Iris)
Presetting ---> EE on (R14 DEL)
Pin EE Remark
1 On R14 Delete
2 Off R14 Insert
4) AGC (Gain)
Presetting ---> R34 (value 22k)
Pin Gain Remark
1 Max R34: 000 ohm
2 Medium R34: 22k
To adjust gain setting
R34 value up ---> Gain Up
R34 value down ---> Gain Down
Gain Setting Value

Technical Specifications

Electrical
CCD Sensor
Active Pixels (H x V)
Resolution
Sensitivity
Signal to Noise Ratio
Gamma
Gain
Synchronization
Shutter Speed
Mirror Mode
Iris
Video Output
Power Supply
Power Consumption
Environmental
Ambient Operating
Temperature
Storage Temperature
Operating Humidity
Mechanical
Dimensions (WxHxD)
Weight
Lens Mount
Accessories
R34
R39
20VC335 21VC335
EIA CCIR
1/3" IT CCD
512 x 492 500 x 582
420 TVL
<0.3 lux
> 49 dB
Fixed 0.45
AGC On / Fixed
(via hardware change)
Internal
1/60 – 100,000 1/50 – 100,000
Default Off / On
(via hardware change)
Electronic On / Off
(via hardware change)
1Vp-p (75 ohm)
12VDC (9V-16V)
(not polarity protected)
<1.2W (max 115mA)
-10° C ~ 50° C
(14° F ~ 122° F)
-15° C ~ 65° C
(5° F ~ 149° F)
95% RH
32mm x 32mm x 26mm
(1.25" x 1.25" x 1.02")
30g w/ lens (1.05 oz)
M-12 board
3pin 200mm Power / Video With
Flying Leads
