KRAFTWERK 4082-12 Instruction Manual

Electronic torque angle adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

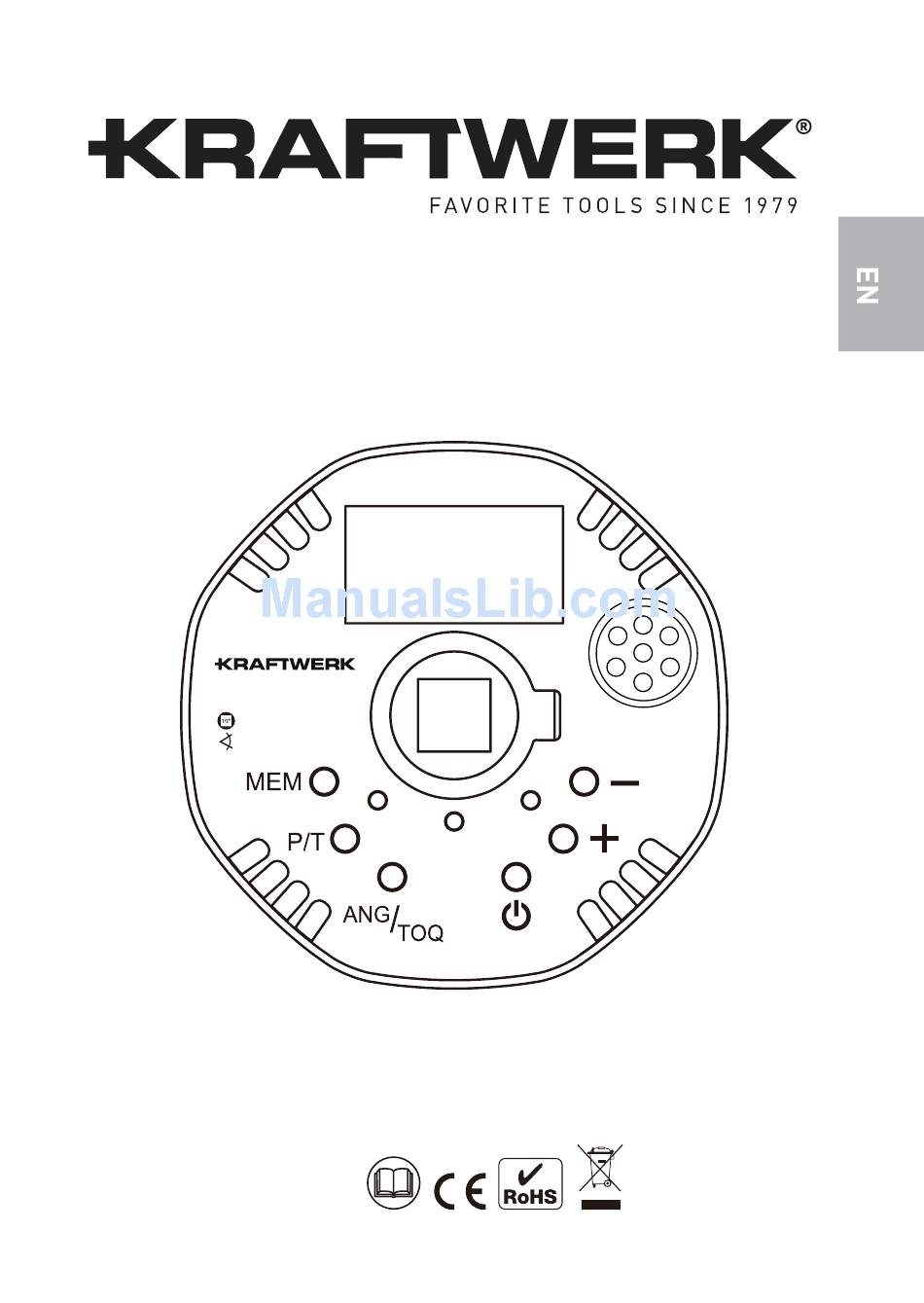

Instruction Manual
Electronic Torque Angle Adapter
Art. 4082-12
Digital Torque Angle Adapter
Art. 4082-12
40-200 Nm (±2%)
(29.5 - 147.5 lb-ft)
5° ~ 360°
DIN EN ISO 6789

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4082-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for KRAFTWERK 4082-12

  • Page 1 Instruction Manual Electronic Torque Angle Adapter Art. 4082-12 Digital Torque Angle Adapter Art. 4082-12 40-200 Nm (±2%) (29.5 - 147.5 lb-ft) 5° ~ 360° DIN EN ISO 6789...

  • Page 2: Table Of Contents

    CONTENTS 1. Product Specifications 2. Components and Features 3. How to use Electronic Torque Angle Adapter 3-1: Battery Installation and Replacement 3-2: Power On: 3-3: How to use Angle functions 3-4: How to set Target Angle Value 3-5: How to select "UNIT" (kg-m, lb-ft, Nm) 3-6: How to set "Target Torque Value"...

  • Page 3: Product Specifications

    1. Product Specifications Art. 4082-12 Torque Accuracy ±2% Angle Accuracy (±1% of reading) + (±1% angular velocity > 10º/sec < 180º/sec) + (±1% of Texture) Preset 10 sets Display resolution Torque: 0.1 Angle: 1 Display Range Torque: 40 ~ 200 Nm (29.5-147.5 lb-ft) Angle: 5 ~ 360º...

  • Page 4: How To Use Electronic Torque Angle Adapter

    3. How to use Electronic Torque Angle Adapter Note Do not press "MEM" and " " button together please. The system will enter into Calibration Mode. Turn off power please. 3-1 Battery Install and Replacement 1. AA x 2 2. Keep the end thread clean and dry for a good contact. 3.

  • Page 5: 3-3: How To Use Angle Functions

    3-3 How to use Angle functions 1. Place the adapter on a flat surface. 2. Press and release "ANG/TOQ" button. 3. The LCD panel will show "00000". 4. The LCD panel will show "0º". 5. Swing the wrench. 6. The LCD panel shows the angle value measured. (CCW: -5º, -6º,..-20º...) (CW: 5º,6º..20º...) 7.

  • Page 6: 3-7: How To Set "Peak" And "Trace

    Note 1. Green light: When you start to use the electronic torque angle adapter, the LED indicator will flash green. 2. Yellow light: When you are approaching 20% before the target, you will see a yellow flash and hear an intermittent buzzer, warning you that the angle is getting close.

  • Page 7: Importment Safeguards

    4. Important Safeguards Do not press "MEM" and " " button together please. The system will enter into Calibration Mode. Turn off power please. • Store in a clean, dry place. • Use a soft, dry, clean cloth clean the adapter and LCD panel. •...
  • Page 8 KRAFTWERK Europe AG KRAFTWERK Sàrl. Mettlenbachstrasse 23 25, rue du Stade CH-8617 Mönchaltorf F – 67870 Bischoffsheim Switzerland France Tel. +41-44 949 40 50 Tel. +33-388 48 64 50 www.kraftwerktools.com...
