Zohd Nano Talon Quick Start Manual

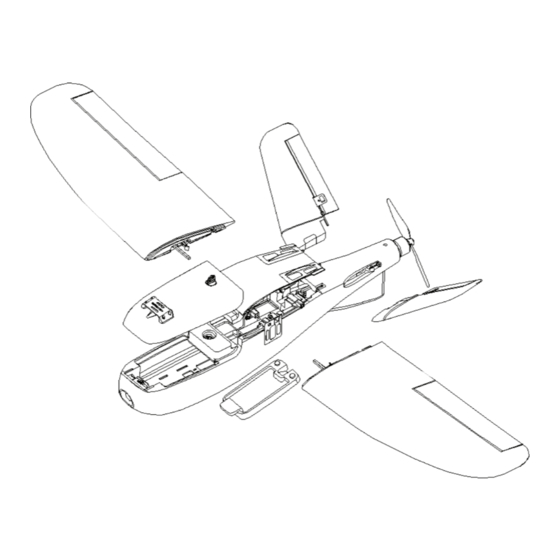

Specification
Data
: Configuration:
Wingspan: 860mm(33.85in)
Length: 570mm(22.44in)
Flying Weight: 410~450g
Flying Time: 30 Minutes
Material: Lightweight EPP

Note

Shutdown all the mix control of your radio before using this Stabilizer.
Do not trim any channel while flying.
Red Indicator means 3-axis stabling mode for advanced user.
Blue Indicator means 6-axis autostability/take-off mode for beginner.
They can be changed by the Mode Switch channel during flying.
When calibrating the stabilizer, both red and blue indicator will quick flashing,
do not move the stabilizer while calibrating,the calibrating will be finished after
blue and red indicator quick flashing for about 5 seconds. Slow flashing means error.
Motor: 2204-1870KV
ESC: 30A w/BEC 1A
Battery: 3S 1300~1800mAh
Servo: 8g*3pcs Digital
Propeller: 6x3
Nano Talon Quick Start Manual

Safety Attentions

1. Do not fly in raining, snowing, or windy weather.
2. Do not fly near HV power cable, signal station, signal tower
or Wi-Fi hot spot, to avoid signal interference.
3. Do not fly around no-fly zone according to local law.

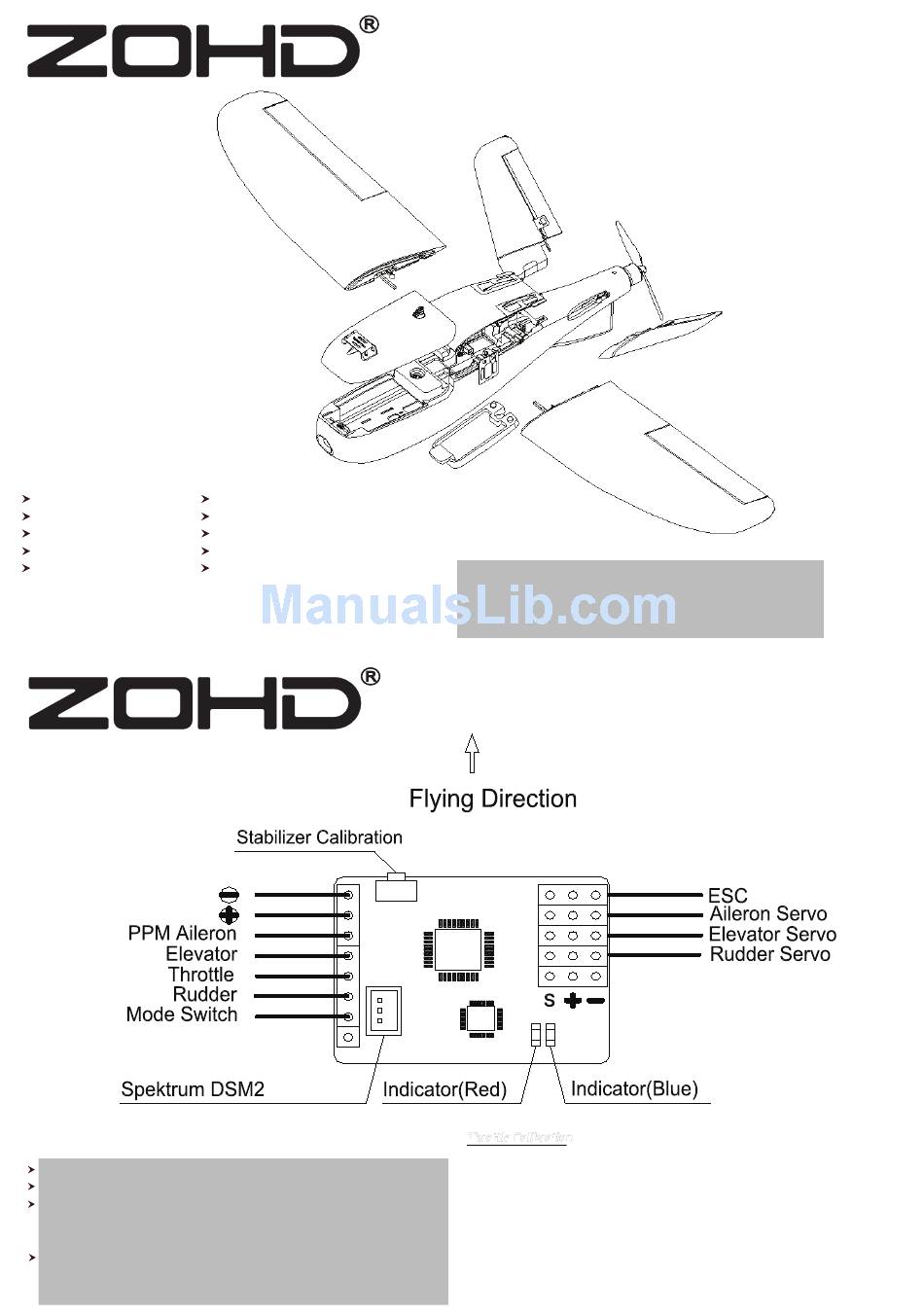

Diagram for ZOHD Stabilizer

Throttle Calibration

You have to calibrate the throttle of this Nano Talon when you fly it for the first time
or change a radio, or there will be unusual beeps.
Calibration Step:
1. Turn on the radio and keep the throttle on the top position.
2. Power on the ESC.
3. Pull the throttle sticker to the lowest position after the motor with two short beeps.
4. Calibration finished after motor with two long beeps.
