Tasco TA430D Instruction Manual

Tasco TA430D Instruction Manual

Refrigerant leak detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

TA430D
Refrigerant Leak Detector
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA430D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tasco TA430D

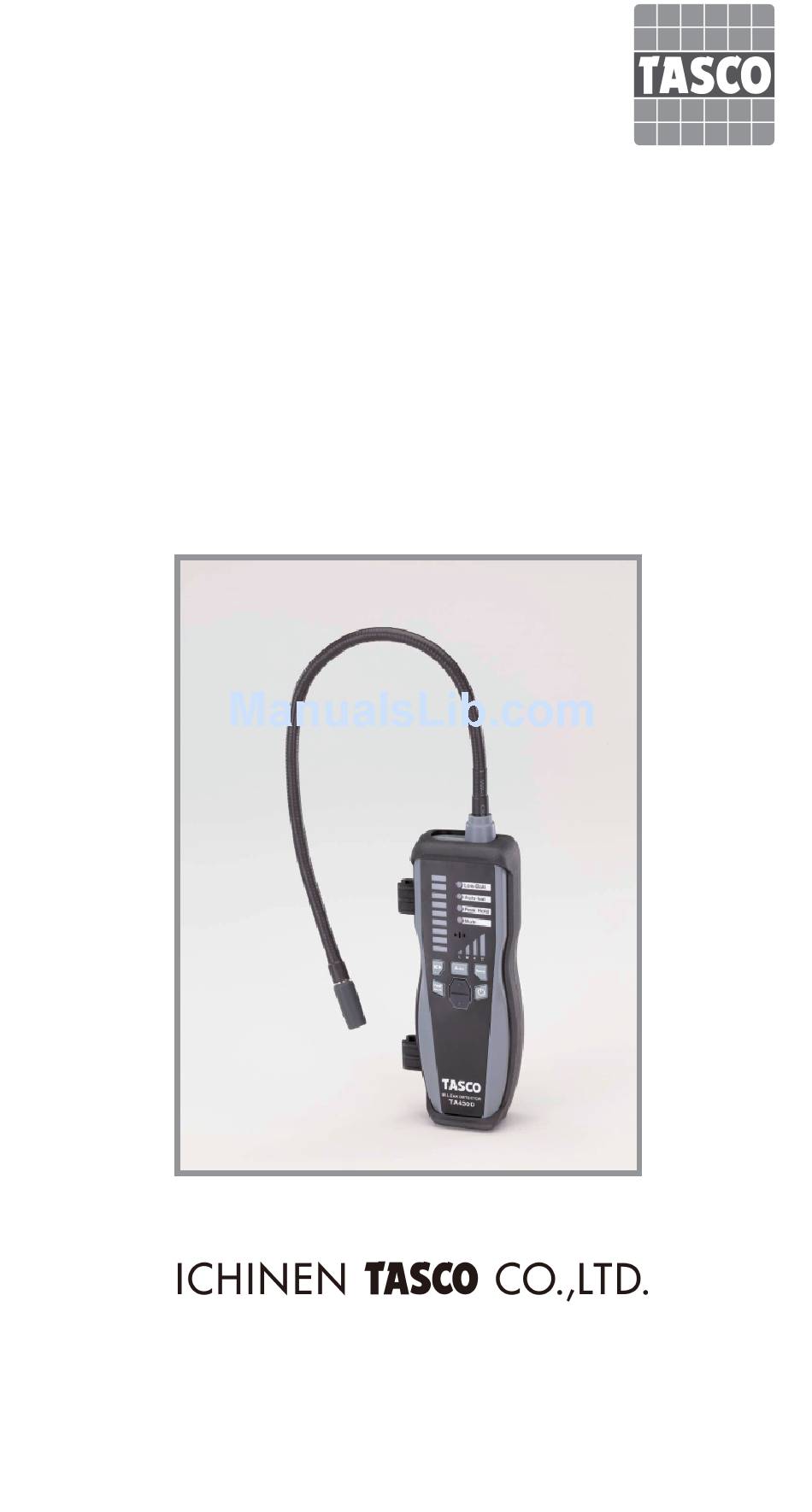

  • Page 1 TA430D Refrigerant Leak Detector Instruction Manual...

  • Page 2: Table Of Contents

    CONTENT Page 1. GENERAL INFORMATION ------------------ 2. FEATURES ----------------------------------------- 3. SPECIFICATIONS ------------------------------- 4. OPERATION GUIDE --------------------------- 5. PART & CONTROL ------------------------------ 6. GETTING STARTED ---------------------------- 6-1 Installing Battery-------------------------------- 8 6-2 Charging ----------------------------------------- 8 6-3 Lithium-ion Battery Care ---------------------8 6-4 Automatic Ambient Reset Feature- --------10 6-5 Button Feature---------------------------------10 6-6 Sensitivity Adjustment Feature--------------13 7.

  • Page 3: General Information

    Infrared Refrigerant Leak Detector 1. GENERAL INFORMATION Thank you for purchasing Infrared Refrigerant Leak Detector. Read through the instruction manual before operation for correct and safe usage. Please store and retain this instruction manual for future reference. 2. FEATURES Infrared Refrigerant Leakage Detector uses a newly developed infrared gas sensor which is extremely sensitive to variety of general used refrigerant.

  • Page 4: Specifications

    Infrared Refrigerant Leak Detector  Peak Hold function – find leaks in noisy environments.  Automatic zero and background compensation at default.  AC USB Adapter: @5V 1A 3. SPECIFICATIONS Detectable Gases: R-134a, R-404A, R-407C, R-410A, R-404A, R-22, R32, HFO-1234yf etc. Sensitivity: R-22, R-32, R-134a,...

  • Page 5: Operation Guide

    Infrared Refrigerant Leak Detector Cable, AC-USB adapter Battery Life: Approximately 5 hours normal use Battery Charge Time: approximately 6 hours Auto power OFF: 10 minutes Warm-Up Time: Approximately 45 seconds Operating Temperature & Humidity: 0 ~ 40°C, < 80% RH Storage Temperature &...
  • Page 6 Infrared Refrigerant Leak Detector  Places fill with too much to Freon gas. (3) Please note that a white filter must be installed into the probe tip. If a white filter is missed and the operator directly detects the leakage, the Infrared Chamber system will be damaged.

  • Page 7: Part & Control

    Infrared Refrigerant Leak Detector 5. PARTS & CONTROL 5-1 Panel Description...
  • Page 8 Infrared Refrigerant Leak Detector USB Power Sensor Probe ○ ○ Sensor Protector LED Leak Indicators ○ ○ Low Battery Indicator Auto-Balance Indicator ○ ○ Peak Hold Indicator Mute Indicator ○ ○ Sensitivity T/H/M/L Indicator ○ Mute Button Auto Reset Button ○...
  • Page 9 Infrared Refrigerant Leak Detector Medium Concentration Indication High Concentration Indication Turbo Concentration Indication...

  • Page 10: Getting Started

    Infrared Refrigerant Leak Detector 6. GETTING STARTED 6-1 Installing Batteries  Loose screw remove battery compartment door located on the bottom of the instrument as show below (Fig.1).  Install Lithium-ion battery pack.  Reinstall the battery cover by aligning it with the handle.
  • Page 11 Infrared Refrigerant Leak Detector (4) Do not expose the battery to temperatures higher than 140°F (60°C). (5) Do not charge the battery in or nearby heated places, such as fire, hot vehicles, or direct sunlight. (6) Do not expose the battery to direct impact or throw (7) Do not get the battery wet.

  • Page 12: Automatic Ambient Reset Feature

    Infrared Refrigerant Leak Detector 6-4 Automatic Ambient Reset Feature This Infrared Refrigerant Leak Detector features an Automatic Ambient Reset function that sets the unit to ignore ambient concentrations of refrigerant.  Automatic Ambient Setup - Upon initial power on, the unit automatically sets itself to ignore the level of refrigerant present at the tip.
  • Page 13 Infrared Refrigerant Leak Detector  Auto Button Press for 2 seconds to turn on /off. Auto-Balance Function: To decide the method to screen the background signal off. On (default setting): The tester will use the time averaging of the total signal as its background level and seeking for higher concentration space.
  • Page 14 Infrared Refrigerant Leak Detector mode which is only for the sensitivity H/M/L level. Press the “Auto” button once to enable manual Reset function. Note: High sensitivity Level: auto-balance off mode, the tester needs heating up time more than 3 minutes after turning on, then turn off the Auto-Balance.

  • Page 15: Sensitivity Adjustment Feature

    Infrared Refrigerant Leak Detector to turn off the audible alarm and solely rely on visual LED indicators. Press MUTE button to toggle this function on and off Note: Keep moving slowly detection, if detected suspicious leaks, slow-moving, please repeatedly confirmed. After the unit is warmed up, the default sensitivity level is set at “High”.
  • Page 16 Infrared Refrigerant Leak Detector Low Sensitivity level (1 Blue LED) Medium Sensitivity level (2 Blue LED) High Sensitivity level (3 Blue LEDs) Turbo Sensitivity level (4 Blue LEDs)

  • Page 17: Operating Procedure

    Infrared Refrigerant Leak Detector 7. OPERATING PROCEDURE WARNING! Do not operate this instrument in the presence of gasoline, natural gas, propane, or in other combustible atmospheres.  How to Find Leaks? NOTE: A sudden whipping of the leak detector probe or "blowing"...
  • Page 18 Infrared Refrigerant Leak Detector  When the instrument detects a leak source, the audible tone will alarm. Additionally, the visual indicators will light from lower to higher; green LED then yellow then (highest concentration) as increasing of level indicate that the location is close to the source.
  • Page 19 Infrared Refrigerant Leak Detector the detection of leaking locations possible with the refrigerant in the air. Use the following “double pass” procedure to find leaks by detecting the change in refrigerant concentration. (A)Charge the system with sufficient refrigerant. Turn the system on and force compressor to operate.
  • Page 20 Infrared Refrigerant Leak Detector continue to test the remaining part of the system. (D)Recheck service valves with caps removed. Air clean the service valve to clear the immediate area, and then check with detector with High sensitivity setting. (E)Move the detector at the speed no more than 75 mm/sec (3 in/sec) and as close as possible to 6 mm (1/4 in) from the surface, completely encircling each test position (switch, sensor,...

  • Page 21: Cleaning

    Infrared Refrigerant Leak Detector (G) The leak detector is sensitive and can take up to 30 seconds to clear after detecting a small amount of contaminant. It will typically clear in 2 to 15 seconds. When the source of the leak is detected, the detector will cause a reaction, if the first green LED continues to flash, indicating that the sensor is not restored to the best condition, please wait a few seconds to restore.
  • Page 22 MEMO...
  • Page 23 MEMO...
  • Page 24 1-17-20 Inadauemachi, Higashi-Osaka City, Osaka 577-0002 JAPAN Phone: 81-6-6748-9310 Fax: 81-6-6748-9320 Web Site: http://www.tascojapan.co.jp/...
