Summary of Contents for Flame MJOY

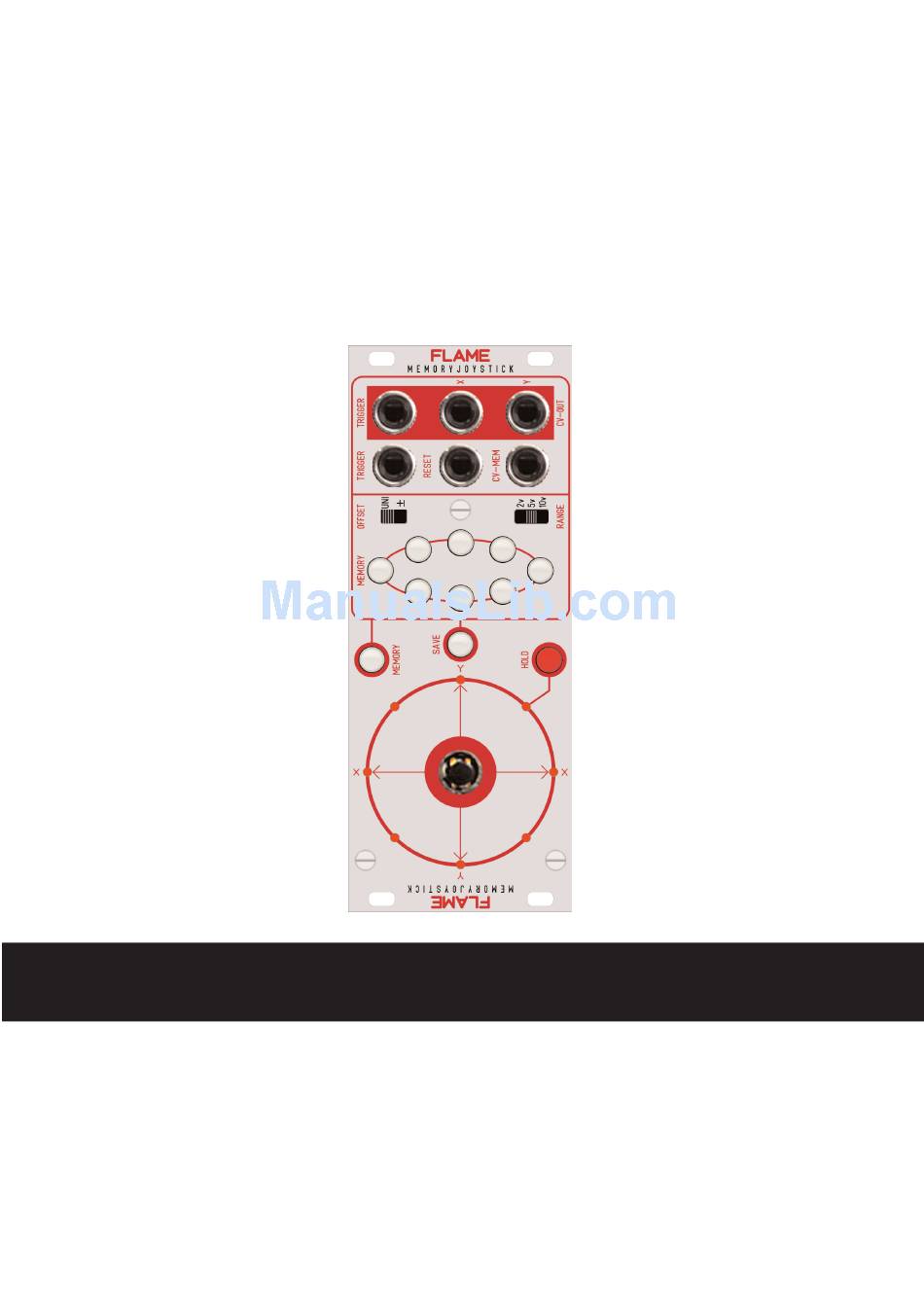

- Page 1 FLAME MEMORY JOYSTICK EURO MODUL MANUAL Version 1.02...
-
Page 2: Table Of Contents
Manual FLAME MJOY Version 1.02 Contents 1. Short description ............... 3 2. Hardware / Connection .............. 3 2.1 Module overview 2.2 Connection 3. Modi.................... 5 3.1 Manual Mode 3.2 Memory Mode List of pattern Appendix and technical informations........7 Technical details... -
Page 3: Short Description
1. Short description First of all congrats on your purchase of the Flame Memory Joystick! The M-Joy is a versatile little CV tool, usable as classic manual controller (for CV generation and manipulation) as well as a simple CV recorder and especially as an 8-step sequencer! We hope you enjoy this great little helper as much as we do! Beforehand: The standard way you'd use the M-Joy is joystick down, outputs up. -
Page 4: Connection
2.2. Connection to the modular system (Doepfer Bus) The module is delivered with a connected ribbon cable for the Doepfer bus. The red lead marks -12 volt. Connecting the module please note the right polarity! If the module is poled accidentally wrong safety diodes avoid the immediate destruction of the module but further damages cannot be excepted. -
Page 5: Modi
3. Modi 3.1. MANUAL MODE After powering on your rack you'll always start in MANUAL MODE. Moving the joystick generates CV at the X and Y output. The CV RANGE can be set (2, 5 or 10 volts) by the little black switch on the upper right of the module. On the other side you'll find the OFFSET switch, in order to switch from unipolar to bipolar. -
Page 6: List Of Pattern
While being clocked (sequence mode) you can choose nine playback PATTERNS by the posi- tion of the joystick. This means you can also morph or switch between playback patterns. You can lock the current playback pattern by pressing HOLD. A RESET impulse will of course reset the sequence to step/slot one. center position: UP-DOWN (PING PONG, PENDULUM) List of all patterns, starting at 9:00, clockwise: Position... - Page 7 - heat damage caused by overexposure to sunlight or heating - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame.fortschritt-musik.de Terms of production conformity: CE, RoHS, UL Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
