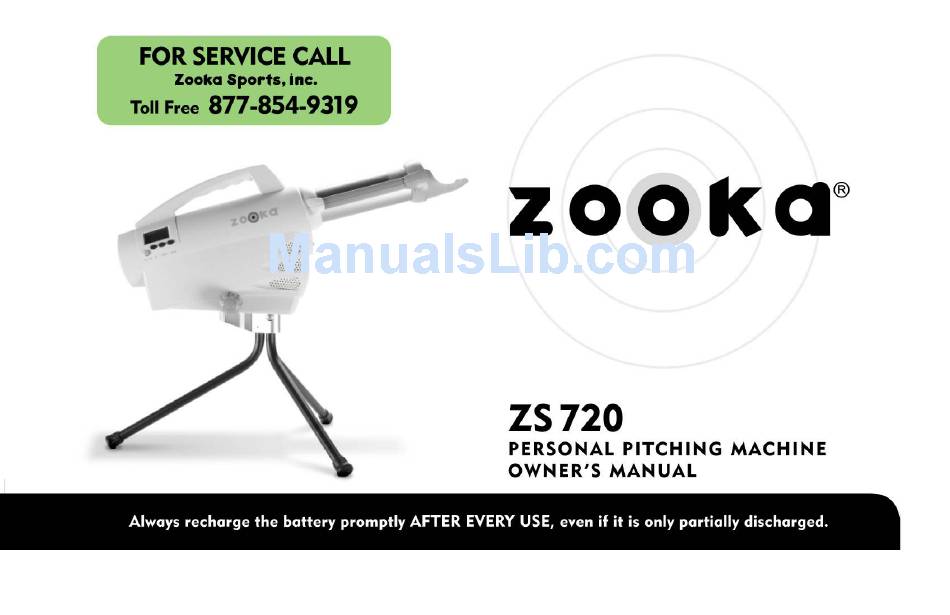

Summary of Contents for Zooka Sports ZS 720
-
Page 2: Important Safety Information
• Make sure that batters always Read all instructions before operating not reveal the ACCESS CODE to wear batting helmets. the Zooka Sports Pitching Machine. children or permit them or other These instructions were written to • Use only the approved pitching... -
Page 3: Table Of Contents
Table of Contents Important Safety Information ...... 2 Practice Drills ..........15 Essential Maintenance ......... 4 Storing the Machine ........16 Charging the Battery Taking the Machine Off the Tripod Cleaning the Barrel Long Term Storage Cleaning the Optical Sensors Changing the Access Code ...... -
Page 4: Essential Maintenance
Essential Maintenance These simple maintenance procedures DIAGRAM 1 CHARGING THE BATTERY Cleaning the Barrel will greatly extend the lifetime of Grit transferred from the balls into your machine and assure optimum the barrel will shorten the life of the performance. cup and barrel. -
Page 5: Unpack

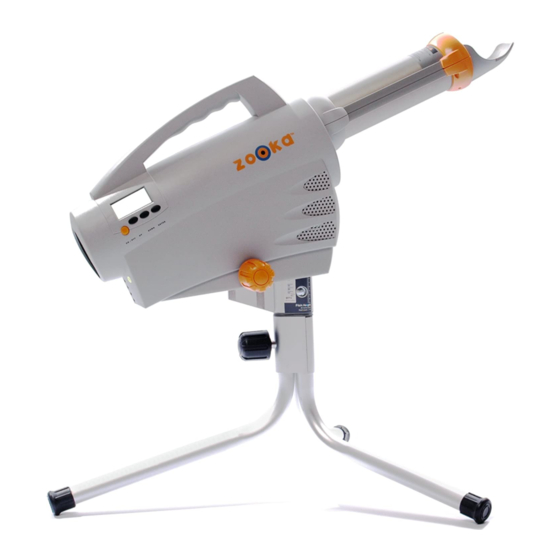

Unpack DIAGRAM 2 ZOOKA SPORTS PITCHING MACHINE AND CONTENTS The Zooka Sports Pitching Machine PITCHING MACHINE is inspected before shipment so that it Handle will arrive in good operating condition. It is shipped with the following parts: Zooka Sports Pitching Machine... -
Page 6: Assemble The Tripod
Assemble the Tripod DIAGRAM 3 TRIPOD ASSEMBLY DIAGRAM 4 INSERT BOLT IN TRIPOD The tripod requires simple assembly. 1. Remove the tripod clamping bolt, spacer, and nut, which are in a bag which is taped to the tripod legs. 2. Make sure the legs are seated to full depth in the tripod head. -
Page 7: Charge The Battery
Charge the Battery IMPORTANT: Always charge the on and begin charging. Initially ‘--’ battery in an area at room tempera- will appear on the display for 5 ture or cooler. Do not charge or store minutes while the battery condition Charge the battery prior to using the battery where temperatures is analyzed. -
Page 8: Setup In The Field
Setup in the Field Safety Requirements Setting Up the Tripod • Never leave the pitching machine Set up the tripod in the pitching This section describes how to set up the unattended unless it is turned OFF. area. The tripod should be positioned tripod in the field and attach the pitch- with the two short legs forward and •... -
Page 9: Attaching The Machine
Attaching the Machine Take the following steps to assemble NOTE: It may help to wiggle the machine onto the tripod: the machine slightly to seat the Look at the bottom of the pitching clamping bolt in the slot on the 1. -
Page 10: Determining The Pitch Angle
Determining the Pitch Angle To change the pitch angle, take the Adjusting the Pan Angle following steps (See Diagram 10): The power level setting (which affects Adjust the horizontal aim of the 1. Hold the machine’s handle while speed) and pitching angle determine machine by shifting the tripod slightly loosening the orange knob on the the height at which the pitch crosses... -
Page 11: Pitching
Pitching Entering Your Access Code DIAGRAM 12 ENTERING THE ACCESS CODE A 4-digit number must be entered Turning the Machine On to activate the pitching mechanism. ACCESS CODE Entry of this code must begin within Once the pitching machine is set up, a few seconds of turning the machine make sure that the battery selector ON or it will shut down. -
Page 12: Setting The Power Level
Setting the Power Level IMPORTANT: Changes to the power To adjust the pitch height in the strike level settings can only occur when zone, slightly increase or decrease The power level directly affects the the compressor is not running. the power level. If the power level is speed of the pitch. -
Page 13: Load And Throw The Ball
DIAGRAM 15 LOADING THE BALL The machine provides an audible Load and Throw the Ball and visual countdown, throws the CAUTION: Be Safe! Batters must wear pitch, and displays the speed in helmets. Keep children away from the miles per hour (MPH). pitching machine. -
Page 14: Selecting The Type Of Ball
Selecting the Type of Ball Franklin Sponge Rubber Checking Battery Status baseballs are soft and To optimize consistency from pitch to The battery icon on the display work well with the machine. pitch, do not mix different ball types shows the approximate remaining These rubber baseballs are in a single pitching sequence. -
Page 15: Practice Drills
• Adjust the pitch angle and power Easy set up and battery operation Tennis balls are inexpensive, softer level setting to throw high fly balls make the Zooka Sports Pitching and quite accurate. or line drives. Machine ideal for a wide variety of •... -
Page 16: Storing The Machine
Storing the Machine Taking the Machine Off the Tripod Long Term Storage To remove the machine from the tripod: Store the machine in a cool, dry DIAGRAM 17 LIFTING MACHINE OFF THE TRIPOD location. To store the machine for over 1. -
Page 17: Changing The Access Code
Changing the DIAGRAM 18 CHANGING THE LEFT DIGIT DIAGRAM 19 ENTERING THE FIRST 2 DIGITS Access Code The preset code 1919 should be ACCESS ACCESS CODE CODE changed to a number that you can remember easily. Any number between 0001 and 9999 is allowed. To change the ACCESS CODE, take the following steps: O F F... -
Page 18: Avoiding Problems
Avoiding Problems Charger Battery The charger is operating properly if the If the battery is suspect, then you A few easy steps can be taken before machine turns ON when the charger is need to: you need to call Customer Service connected to the machine and plugged check that the rear panel battery regarding ERROR codes or pitching... -
Page 19: Error Codes
Error Codes If an error occurs, the machine displays: Error Code Description Solution Program memory error Call service department at 425.861.0111. Low battery voltage Charge battery. (see Section 3) Sunlight on optics Reposition machine or shade optics. Blocked optics Clear or clean optics. (see Section 10) Push cup back a few inches if it is near the front of the barrel. -
Page 20: Troubleshooting
Troubleshooting Solutions to the most commonly-reported pitching machine problems are provided below. Power-related Symptom Solution Machine doesn’t turn ON. Check that the rear panel battery selector switch is depressed at the INTERNAL battery position. Press the ON button, hold it for a few seconds, and then release it after you hear a beep. - Page 21 Troubleshooting - continued Power-related Symptom Solution Machine turns itself OFF. You may not have used it for over 10 minutes. If the optical sensors or display keypad receive no input for 10 minutes, an automatic shutdown occurs. The optical sensors may be blocked. Clear the optical path. Keep fingers out of the barrel when loading balls.
- Page 22 Troubleshooting - continued Pitching-related Symptom Solution Some balls do not throw straight. Refer to page 14, “Selecting the Type of Ball,” to make sure that the ball is an approved type and size for the pitching machine. Look the ball over. Discard worn or damaged balls. Do not use balls that are irregular in shape or have unusually large seams.
- Page 23 Troubleshooting - continued Pitching-related Symptom Solution Speed measurement too high or too low Look the ball over. If the ball is too large or not an approved ball type (refer to page 14), do not use it. Clean the optical sensors. When the sensors are dirty, they cannot properly measure the ball’s speed.
-
Page 24: Maintenance
Maintenance To clean the barrel and cup, take the DIAGRAM 21 REMOVING THE CUP following steps: 1. Remove the cup from the barrel. To keep the pitching machine running Reach into the barrel and grasp the smoothly, you need to clean the unit cup in your fingertips. -
Page 25: Replacing The Battery
DIAGRAM 22 REPLACING THE CUP DIAGRAM 23 CLEANING THE OPTICAL SENSORS Replacing the Battery According to current environmental regulations, the pitching machine’s battery contains hazardous materials. If you need to replace it, the battery must be disposed of according to Hazardous Waste Regulations. - Page 26 DIAGRAM 24 SWITCHING TO EXTERNAL BATTERY DIAGRAM 25 REMOVING THE KNOB AND SPACER DIAGRAM 26 REMOVING THE TOP OF THE CASE Mode Number Seria Number ZC740 w w w z o o k a c o m EXT. BATTERY / AUTOLOADER CHARGER BATTERY SELECT INTERNAL...
- Page 27 27 REMOVING/REPLACING THE BATTERY DIAGRAM 28 REPLACING THE CONNECTORS DIAGRAM 29 RESETTING THE REAR PANEL Notches in rear panel 9. Remove the battery connectors 10. Lift the “old” battery out of the NOTE: The battery is marked by lifting the battery slightly from machine and set it aside.
-
Page 28: Disposing Of The Battery
Refer to replaced by Zooka Sports. hairline fractures in the case. “Charging the Battery.” PAGE 28... -
Page 29: Replacing The Throwing Cup
Review the steps found in “Cleaning Do not attempt to service the the Machine” on page 24. The steps Zooka Sports Pitching Machine involved in cleaning the cup are yourself except for the assembly similar to removing and replacing it. -
Page 30: Zooka Warranty
This warranty covers all defects in other liability in con-nection with the What Zooka Sports will pay for: Zooka material and workmanship under normal sale or shipment of our products. Sports will pay for all labor and materials use and service conditions. - Page 31 Fill out and keep for your records. Date of Purchase: Model/Serial Number: Purchased from (name of dealer, rep. pro, etc.): City/State/Zip: Phone number:...
- Page 32 425 861 5552 info@zooka.com www.zooka.com ©2000,2002 Zooka Sports, Inc. • Patents Pending Effective date: December 20, 2002 Zooka is a registered trademark of Zooka Sports, Inc. Zooka Owner’s Manual P/N 20006-001 Tretorn is a registered trademark of Tretorn AB, Sweden.
