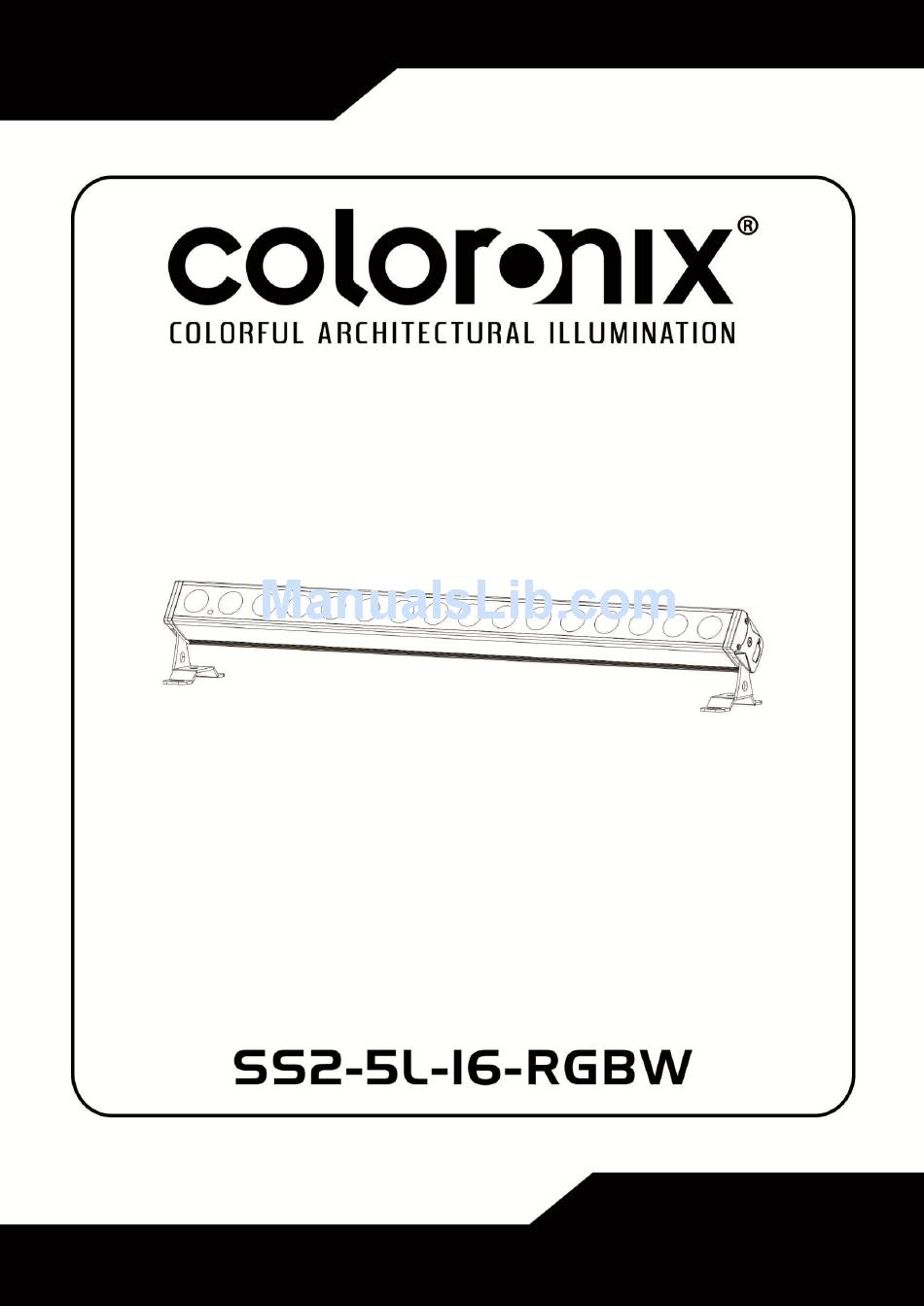

Summary of Contents for Coloronix SS2-5L-16-RGBW
-
Page 2: User Manual
User Manual Please read the manual before operating. Picture Dimension This fixture has affluent effect programs even though it is easy to operate. Auto run mode Built-in program mode DMX mode Slave mode Dimming mode ... - Page 3 Menu Menu 1 Menu 2 Menu 3 Menu 4 Functions 1)Address 001-512 Console mode 1:DMX 2)Channels 4/6/9-CH 2:Slave Slave mode Auto run 3:AUTO mode Built-in 1)Effect mode 1-14 program mode 2)Static color Static color 4:Built-in 0-15 Program (Effect mode:1) 2)Speed Speed 1-100 (Effect mode:2-14)
-
Page 4: Operation
A. OPERATION Operation Mode Transformation Press the MODE, UP or DOWN button to transform menus B. Operation Mode illustration a. DMX mode Press the setup button to enter and select by the up or down button. As followings: Address : 001~512 Channels 4/6/9-ch... - Page 5 40~59 Program 04 60~79 Program 05 80~99 Program 06 100~119 Program 07 120~139 Program 08 140~159 Program 09 160~179 Program 10 180~199 Program 11 200~219 Program 12 220~239 Program 13 240~255 Program 14 Speed 0-255 Slow to fast Program 02-14 Strobe 0-10 No function...
- Page 6 e. Dimming mode “Dimmer” Please press the setup button to enter and select by the up or down button. As followings: Red: 000~25 Green: 000~25 Dimme Blue: 000~25 White: 000~25 f. Setting mode Please press the setup button to enter and select by the up or down button. As followings：...
- Page 7 c.Inv Square Law dimming d.S-curve dimming 2：Dimming speed setting Please press the setup button to enter and select by the up or down button. As followings： Fast Dimmer Speed Smoot 3：DMX Fail console DMX signal clear. Please press the setup button to enter and select by the up or down button. As followings：...
- Page 8 6：Restore factory set After carry out this function, all data will restore initial state. Please press the setup button to enter and select by the up or down button. As followings: Factory 7：Language selection Please press the setup button to enter and select by the up or down button. As followings：...
- Page 9 DMX_PERSONALITY DMX_PERSONALITY_DE SCRIPTION RESET_DEVICE FACTORY_DEFAULTS Notice a. When the product powers on and shows version information, pressing the “MODE” and “SETUP” buttons for some seconds at the same time. After this, it can restore factory settings and the data will be initialized. b.
