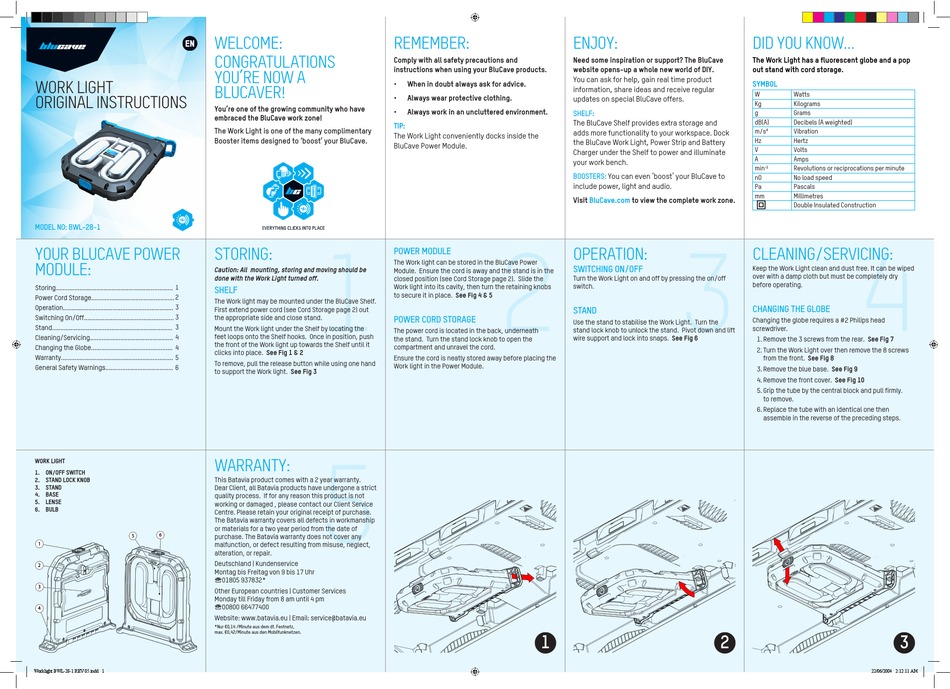

Blucave BWL-28-1 Original Instructions

WORK LIGHT
ORIGINAL INSTRUCTIONS
MODEL NO: BWL-28-1
YOUR BLUCAVE POWER
MODULE:
Storing..................................................................... 1
Power Cord Storage................................................. 2
Operation................................................................. 3
Switching On/Off..................................................... 3
Stand.......................................................................
3
Cleaning/Servicing.................................................
4
Changing the Globe................................................
4
Warranty..................................................................
5
General Safety Warnings........................................
6
WORK LIGHT
1. ON/OFF SWITCH
2. STAND LOCK KNOB
3. STAND
4. BASE
5. LENSE
6. BULB
6
5
1
2
3
4
Worklight BWL-28-1 REV 05.indd 1
WELCOME: REMEMBER:
CONGRATULATIONS
Comply with all safety precautions and
instructions when using your BluCave products.
YOU'RE NOW A
•
BLUCAVER!
•
You're one of the growing community who have
•
embraced the BluCave work zone!
TIP:
The Work Light is one of the many complimentary
The Work Light conveniently docks inside the
Booster items designed to 'boost' your BluCave.
BluCave Power Module.
1
STORING:
POWER MODULE
The Work light can be stored in the BluCave Power
Caution: All mounting, storing and moving should be Module. Ensure the cord is away and the stand is in the
done with the Work Light turned off.
closed position (see Cord Storage page 2). Slide the
Work light into its cavity, then turn the retaining knobs
SHELF
to secure it in place. See Fig 4 & 5
The Work light may be mounted under the BluCave Shelf.
First extend power cord (see Cord Storage page 2) out
the appropriate side and close stand. POWER CORD STORAGE
Mount the Work light under the Shelf by locating the
The power cord is located in the back, underneath
feet loops onto the Shelf hooks. Once in position, push
the stand. Turn the stand lock knob to open the
the front of the Work light up towards the Shelf until it
compartment and unravel the cord.
clicks into place. See Fig 1 & 2
Ensure the cord is neatly stored away before placing the
To remove, pull the release button while using one hand
Work light in the Power Module.
to support the Work light. See Fig 3
5
WARRANTY:
This Batavia product comes with a 2 year warranty.
Dear Client, all Batavia products have undergone a strict
quality process. If for any reason this product is not
working or damaged , please contact our Client Service
Centre. Please retain your original receipt of purchase.
The Batavia warranty covers all defects in workmanship
or materials for a two year period from the date of
purchase. The Batavia warranty does not cover any
malfunction, or defect resulting from misuse, neglect,
alteration, or repair.
Deutschland | Kundenservice
Montag bis Freitag von 9 bis 17 Uhr
01805 937832*
Other European countries | Customer Services
Monday till Friday from 8 am until 4 pm
00800 66477400
Website: www.batavia.eu | Email: service@batavia.eu
*Nur €0,14 /Minute aus dem dt. Festnetz,
max. €0,42/Minute aus den Mobilfunknetzen.
ENJOY:
Need some inspiration or support? The BluCave
website opens-up a whole new world of DIY.
You can ask for help, gain real time product
When in doubt always ask for advice.
information, share ideas and receive regular
Always wear protective clothing.
updates on special BluCave offers.
Always work in an uncluttered environment.
SHELF:
The BluCave Shelf provides extra storage and
adds more functionality to your workspace. Dock
the BluCave Work Light, Power Strip and Battery
Charger under the Shelf to power and illuminate
your work bench.
BOOSTERS:
include power, light and audio.
Visit
2
OPERATION:
SWITCHING ON/OFF
Turn the Work Light on and off by pressing the on/off
switch.
STAND
Use the stand to stabilise the Work Light. Turn the
stand lock knob to unlock the stand. Pivot down and lift
wire support and lock into snaps. See Fig 6
1
DID YOU KNOW...
The Work Light has a fluorescent globe and a pop
out stand with cord storage.
SYMBOL
W
Kg
g
dB(A)
m/s²
Hz
V
A
min
-1
You can even 'boost' your BluCave to
n0
Pa
mm
BluCave.com to view the complete work zone.
3
CLEANING/SERVICING:
Keep the Work Light clean and dust free. It can be wiped
over with a damp cloth but must be completely dry
before operating.
CHANGING THE GLOBE
Changing the globe requires a #2 Philips head
screwdriver.
1. Remove the 3 screws from the rear. See Fig 7
2. Turn the Work Light over then remove the 8 screws
from the front. See Fig 8
3. Remove the blue base. See Fig 9
4. Remove the front cover. See Fig 10
5. Grip the tube by the central block and pull firmly.
to remove.
6. Replace the tube with an identical one then
assemble in the reverse of the preceding steps.
2
Watts
Kilograms
Grams
Decibels (A weighted)
Vibration
Hertz
Volts
Amps
Revolutions or reciprocations per minute
No load speed
Pascals
Millimetres
Double Insulated Construction
4
3
