Summary of Contents for Minuteman EZ Mop 360 degrees

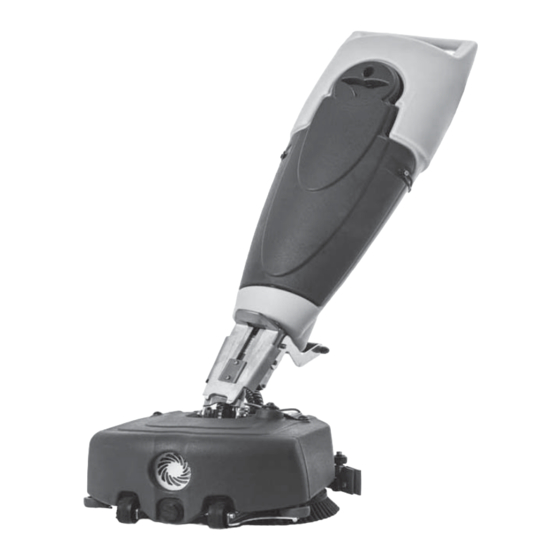

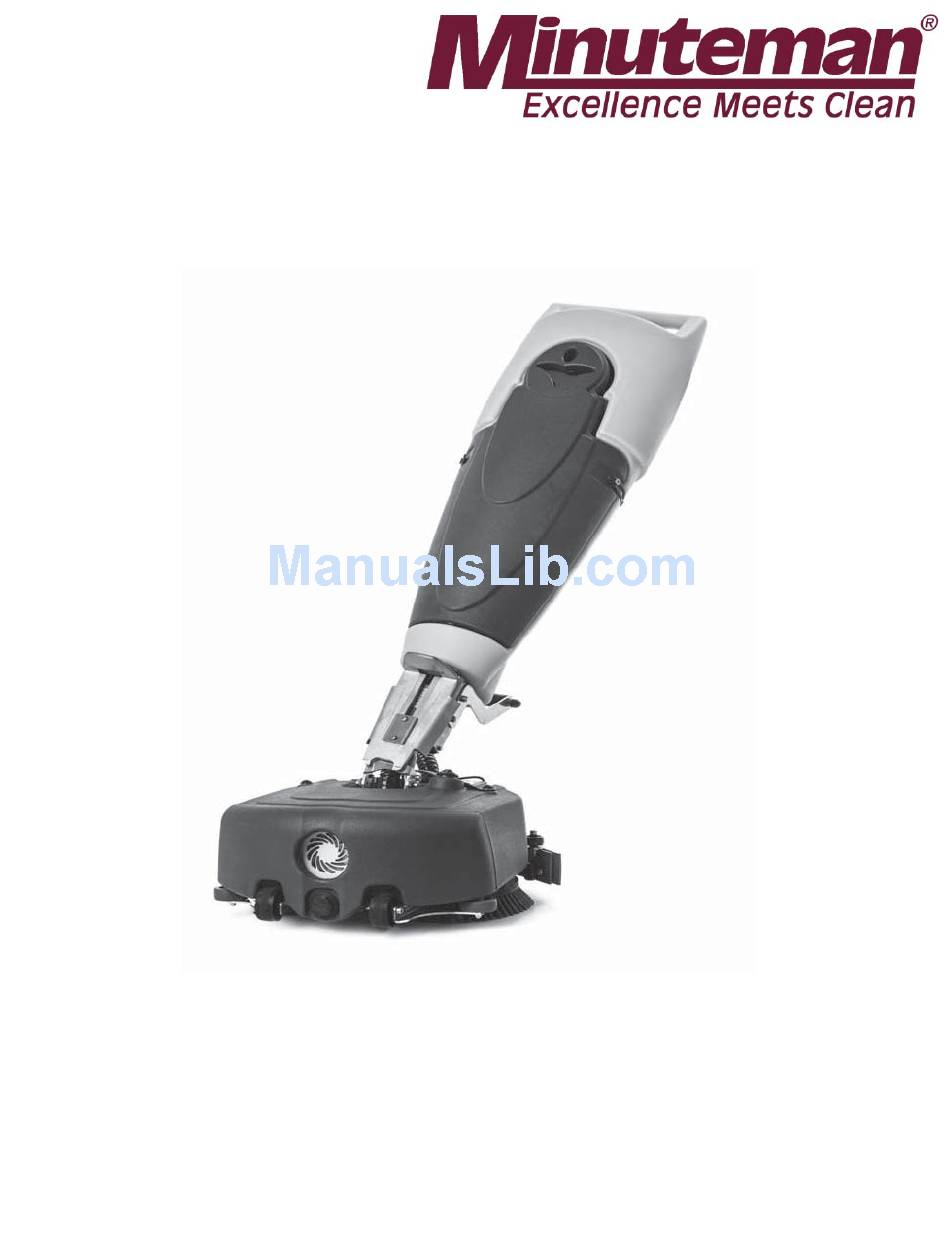

- Page 1 EZ Mop 360° User Manual...
-
Page 2: Table Of Contents
Table of Contents 1. GENERAL INFORMATION .......................... 3 1.1 IMPORTANT INFORMATION ..........................3 1.2 AIM OF THE MANUAL ............................3 1.3 TERMINOLOGY AND SYMBOLS ........................3 1.4 SYMBOLS AND WARNINGS ..........................4 1.5 INTENDED USE AND UNINTENDED USE ......................4 1.6 TECHNICAL MODIFICATIONS ........................... -
Page 3: General Information
1. GENERAL INFORMATION 1.1 IMPORTANT INFORMATION • The improper use of the machine or its use by unauthorised or unskilled personnel to carry out certain tasks and/or during training courses. • The machine being used in a manner that does not conform to national safety and accident prevention regulations. -
Page 4: Symbols And Warnings
1.4 SYMBOLS AND WARNINGS DANGER! Symbol that draws attention to essential information to avoid serious (or extreme) consequen- ces that affect the health of persons, the integrity of the product and damage to the environ- ment in which it is used. CAUTION Symbol that accompanies information containing procedures and/or instructions that are es- sential to understand and follow to avoid damage to the machine and to the environment in... -
Page 5: Product Identification
Make sure that there is a rating label containing the serial number and the CE mark attached to the machine. If there isn’t, please inform your dealer immediately. The rating plate contains the following information: Minuteman International 800-323-9420 www.minutemanintl.com • Manufacturer’s identifi... -
Page 6: Safety Information
2. SAFETY INFORMATION 2.1 BASIC RECOMMENDATIONS NOTE: Read the “instructions manual” before starting up, using, or carrying out scheduled or unsche- duled maintenance or any other work on the machine. CAUTION Strictly comply with all the instructions provided in this manual and those regarding the bat- teries and battery chargers (pay particular attention to safety warnings and danger notices). - Page 7 NOTE: Never leave the machine unattended without fi rst making sure that it cannot move accidentally and that it is disconnected from the power supply. DANGER! When using the machine, pay attention to other people, especially children in the area where the machine is being used.
-
Page 8: Handling Information
NOTE: The fl uids that are recovered contain detergents, disinfectant and water together with organic and inorganic substances collected whilst the machine is in use. They must be disposed of according to the current applicable legislation. NOTE: Before each use, check the machine. In particular, check that the battery charging cable and connector are in good condition and safe for use. - Page 9 Symbols used on the packaging Fragile, handle with care. Indicates that the contents of the package are fragile and must be handled with the utmost care. Keep dry Indicates that the package should be kept in a dry place. This way up. Indicates that the package must be stored the right way up.
-
Page 10: Inspection Upon Delivery
3.3 INSPECTION UPON DELIVERY When the goods are delivered (machine, battery or battery charger) by the carrier, carefully check the condition of the packaging and its contents. If the contents have been damaged, inform the carrier immediately. The package contains the following: 1. -
Page 11: Assembling The Machine
3.5 ASSEMBLING THE MACHINE DANGER! All the operations described below must be carried out in areas having adequate lighting and only when the battery has been removed from the machine. After unpacking the machine, it must be assembled as described below (refer to the relevant sections in Chapter 5 for a detailed description of these procedures): 1. -
Page 12: Blocking / Unlocking Squeegee Lifting
4.3 BLOCKING / UNLOCKING SQUEEGEE LIFTING Lifting the squeegee off the fl oor from plate “1” activate the snap lock “2” which allows the squeegee to remain lifted from the fl oor. To bring the squeegee back to the fl oor, lift the latch “2” releasing it 4.4 CONTROL PANEL Turning the machine ON or... -
Page 13: Dimension And Technical Data
4.6 DIMENSION AND TECHNICAL DATA DESCRIPTION VALUE Power Supply Performance m2/h 1200 Cleaning Width 157.5 Squeege blade witch Brush diameter 2 x 8 Brush speed Brush presure Brush motor power 2 x 36/120 Vacuum motor power 36/300 Solution/recovery tank capacity Gal. -
Page 14: Recharging The Battery
1. Fit the brush or pad driver (with abrasive pad) that is suitable for the surface and the work to be performed. 2. Fit the squeegee and make sure that it is securely fastened, connected to the suction hose and that the blades are not excessively worn. -
Page 15: Fitting And Removing The Brush
5.3 FITTING AND REMOVING THE BRUSH CAUTION Only use the machine if the brushes or pad drivers, together with abrasive disk, are installed properly.. Assembly Procedure: 1. Lock the handle using the locking lever. 2. Grip the handle and, using it as a lever to lift the front of the machine, rotate it (A) backwards. -
Page 16: Brush Types
5.4 BRUSH TYPES Four different types of brush are supplied with the machine. Their characteristics differ according to their composition and abrasiveness. Their use depends on the type of fl oor or the specifi c application. ITEM DESCRIPTION Can be used for cleaning hard surfaces such as cement, tiles, clinker, porphyry etc. -
Page 17: Fitting And Removing The Squeegee
5.6 FITTING AND REMOVING THE SQUEEGEE ASSEMBLY PROCEDURE: 1. Position the squeegee support 1 so that it is facing upwards A 2. Insert the squeegee 2 onto the holes X in the support 1. 3. Tighten the knobs 3 securely to fasten the squeegee 2 to the support 1. 4. -
Page 18: Filling And Emptying The Tank
5.8 FILLING AND EMPTYING THE TANK NOTE: The temperature of the water or the detergent added should never exceed 50°C. Always empty the recovery tank every time you fi ll the solution tank.. CAUTION Use only products suitable for the fl oor and for the dirt that has to be removed. FILLING PROCEDURE: 1. -
Page 19: Draining The Recovery Tank
EMPTYING PROCEDURE: 1. Unscrew the drain plug 3, together with the fi lter 4, located in the lower part of the tank. 2. Wait for the tank to empty completely. 3. Screw the drain plug back on tightly 3. 5.9 DRAINING THE RECOVERY TANK 1. -
Page 20: Operating The Machine
5.10 OPERATING THE MACHINE 1. Switch on the machine pressing powerbotton 1. 2. Lower the squeegee. 3. Lift the lever 6 to release the handle 7. 4. Start the brushes and the dispensing of the solution (water + detergent) using switch 3 and 4 5. - Page 21 DIRECT WASHING OR FOR SLIGHTLY DIRTY SURFACES Scrubbing and drying in a single pass. Prepare the machine and use it as described in section OPERATING THE MACHINE. NOTE: Never use the machine without a detergent solution as it may damage the fl oor. INDIRECT WASHING OR FOR VERY DIRTY SURFACES Scrubbing and drying in multiple passes.
-
Page 22: Maintenance
6. MAINTENANCE DANGER! All maintenance work or the replacement of accessories must be carried out in areas with adequate lighting and only after having disconnected the machine from the power supply by unplugging the battery connector. NOTE: All work on the electrical system and all maintenance and repair work (especially work not spe- cifi... -
Page 23: Squeegee
6.4 SQUEEGEE CAUTION Do not handle the squeegee with bare hands: wear gloves and any other protective clothing that may be necessary. Remove the squeegee from the machine and clean it under running water using a sponge or brush. Check the effectiveness and the wear of the rubber blades that are in contact with the fl oor. They are designed to scrape the detergent-water fi... -
Page 24: Accessories
6.6 ACCESSORIES Remove and clean the brush or pad driver (see section FITTING AND REMOVING THE BRUSH). Check that the brushes work evenly on the surface (check for any irregular wear on the brushes or abrasive disks). CAUTION To avoid damaging the fl oor and the machine, make sure that no foreign objects, such as metallic parts, screws, chippings, string or similar items, have become caught in the brushes. -
Page 25: Extraordinary Maintenance
CYCLES DESCRIPTION Clean the squeegee (see section SQUEEGEE) Clean the solenoid valve fi lter (see section CLEAR WATER TANK FILTER). Clean the vacuum fi lter (see section VACUUM FILTER). Clean the recovery tank seals 1 and 2 using a damp cloth. Clean the bottom plate 3 and particularly the clean water nozzles 4 using a damp cloth or abrasive sponge 6.9 EXTRAORDINARY MAINTENANCE... -
Page 26: Troubleshooting
7. TROUBLESHOOTING CAUTION The content of this chapter is not exhaustive but it aims to provide information regarding the most common problems in order to help the user to troubleshoot faults. The instructions under the heading “SOLUTION” in the table below DO NOT AUTHORISE work to be carried out that can affect safety. -
Page 27: Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair stations. - Page 28 “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20, Pingree Grove, IL 60140 USA Phone (800) 323-9420 - www.minutemanintl.com A Member of the Hako Group 988765UM Rev A 03/18...
