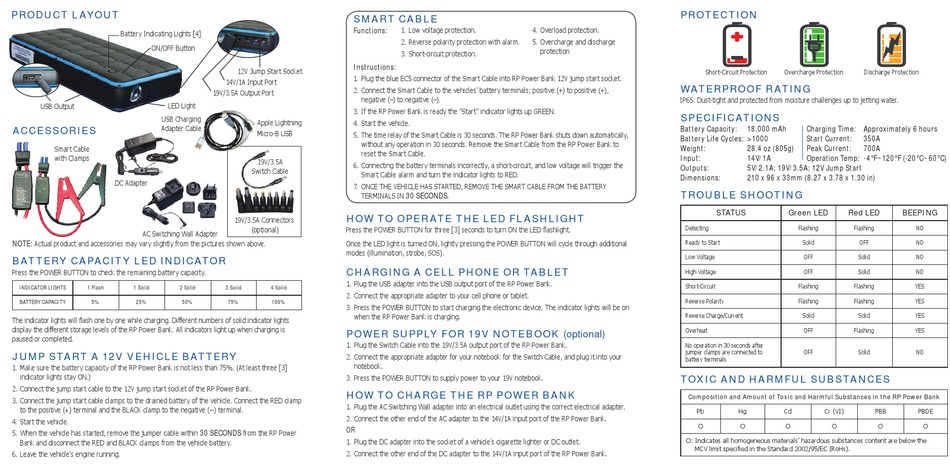

RP Advanced Mobile Systems 2400-8040-12V-C Owner's Manual

PRODUCT LAYOUT

Battery Indicating Lights [4]
ON/OFF Button
LED Light
USB Output
USB Charging

ACCESSORIES

Adapter Cable
Smart Cable
with Clamps
DC Adapter
AC Switching Wall Adapter
NOTE: Actual product and accessories may vary slightly from the pictures shown above.

BATTERY CAPACITY LED INDICATOR

Press the POWER BUTTON to check the remaining battery capacity.
INDICATOR LIGHTS 1 Flash 1 Solid 2 Solid
BATTERY CAPACITY 5% 25% 50%
The indicator lights will flash one by one while charging. Different numbers of solid indicator lights
display the different storage levels of the RP Power Bank. All indicators light up when charging is
paused or completed.

JUMP START A 12V VEHICLE BATTERY

1. Make sure the battery capacity of the RP Power Bank is not less than 75%. (At least three [3]
indicator lights stay ON.)
2. Connect the jump start cable to the 12V jump start socket of the RP Power Bank.
3. Connect the jump start cable clamps to the drained battery of the vehicle. Connect the RED clamp
to the positive (+) terminal and the BLACK clamp to the negative (−) terminal.
4. Start the vehicle.
5. When the vehicle has started, remove the jumper cable within 30 SECONDS from the RP Power
Bank and disconnect the RED and BLACK clamps from the vehicle battery.
6. Leave the vehicle's engine running.
SMART CABLE
Functions:
Instructions:
12V Jump Start Socket
1. Plug the blue EC5 connector of the Smart Cable into RP Power Bank 12V jump start socket.
14V/1A Input Port
2. Connect the Smart Cable to the vehicles' battery terminals; positive (+) to positive (+),
19V/3.5A Output Port
negative (–) to negative (–).
3. If the RP Power Bank is ready the "Start" indicator lights up GREEN.
Apple Lightning
4. Start the vehicle.
Micro-B USB
5. The time relay of the Smart Cable is 30 seconds. The RP Power Bank shuts down automatically,
without any operation in 30 seconds. Remove the Smart Cable from the RP Power Bank to
reset the Smart Cable.
19V/3.5A
6. Connecting the battery terminals incorrectly, a short-circuit, and low voltage will trigger the
Switch Cable
Smart Cable alarm and turn the indicator lights to RED.
7. ONCE THE VEHICLE HAS STARTED, REMOVE THE SMART CABLE FROM THE BATTERY
TERMINALS IN 30 SECONDS.

HOW TO OPERATE THE LED FLASHLIGHT

19V/3.5A Connectors
(optional) Press the POWER BUTTON for three [3] seconds to turn ON the LED flashlight.
Once the LED light is turned ON, lightly pressing the POWER BUTTON will cycle through additional
modes (illumination, strobe, SOS).

CHARGING A CELL PHONE OR TABLET

1. Plug the USB adapter into the USB output port of the RP Power Bank.
3 Solid 4 Solid
2. Connect the appropriate adapter to your cell phone or tablet.
75% 100%
3. Press the POWER BUTTON to start charging the electronic device. The indicator lights will be on
when the RP Power Bank is charging.

POWER SUPPLY FOR 19V NOTEBOOK (optional)

1. Plug the Switch Cable into the 19V/3.5A output port of the RP Power Bank.
2. Connect the appropriate adapter for your notebook for the Switch Cable, and plug it into your
notebook.
3. Press the POWER BUTTON to supply power to your 19V notebook.

HOW TO CHARGE THE RP POWER BANK

1. Plug the AC Switching Wall adapter into an electrical outlet using the correct electrical adapter.
2. Connect the other end of the AC adapter to the 14V/1A input port of the RP Power Bank.
OR
1. Plug the DC adapter into the socket of a vehicle's cigarette lighter or DC outlet.
2. Connect the other end of the DC adapter to the 14V/1A input port of the RP Power Bank.
1. Low voltage protection. 4. Overload protection.
2. Reverse polarity protection with alarm. 5. Overcharge and discharge

protection

3. Short-circuit protection.
PROTECTION
Short-Circuit Protection Overcharge Protection

WATERPROOF RATING

IP65: Dust-tight and protected from moisture challenges up to jetting water.

SPECIFICATIONS

Battery Capacity: 18,000 mAh Charging Time: Approximately 6 hours
Battery Life Cycles: >1000 Start Current:
Weight: 28.4 oz (805g) Peak Current:
Input: 14V/1A Operation Temp: -4°F~120°F (-20°C~60°C)
Outputs: 5V/2.1A; 19V/3.5A; 12V Jump Start
Dimensions: 210 x 96 x 33mm (8.27 x 3.78 x 1.30 in)

TROUBLE SHOOTING

STATUS Green LED Red LED
Detecting Flashing Flashing
Ready to Start Solid OFF
Low Voltage OFF Solid
High Voltage OFF Solid
Short-Circuit Flashing Flashing
Reverse Polarity Flashing Flashing
Reverse Charge/Current Solid Solid
Overheat OFF Flashing
No operation in 30 seconds after
jumper clamps are connected to OFF Solid
battery terminals
TOXIC AND HARMFUL SUBSTANCES
Composition and Amount of Toxic and Harmful Substances in the RP Power Bank
Pb Hg Cd Cr (VI)
   
: Indicates all homogeneous materials' hazardous substances content are below the
MCV limit specified in the Standard 2002/95/EC (RoHs).
Discharge Protection
350A
700A
BEEPING
NO
NO
NO
NO
YES
YES
YES
YES
NO
PBB PBDE
 
