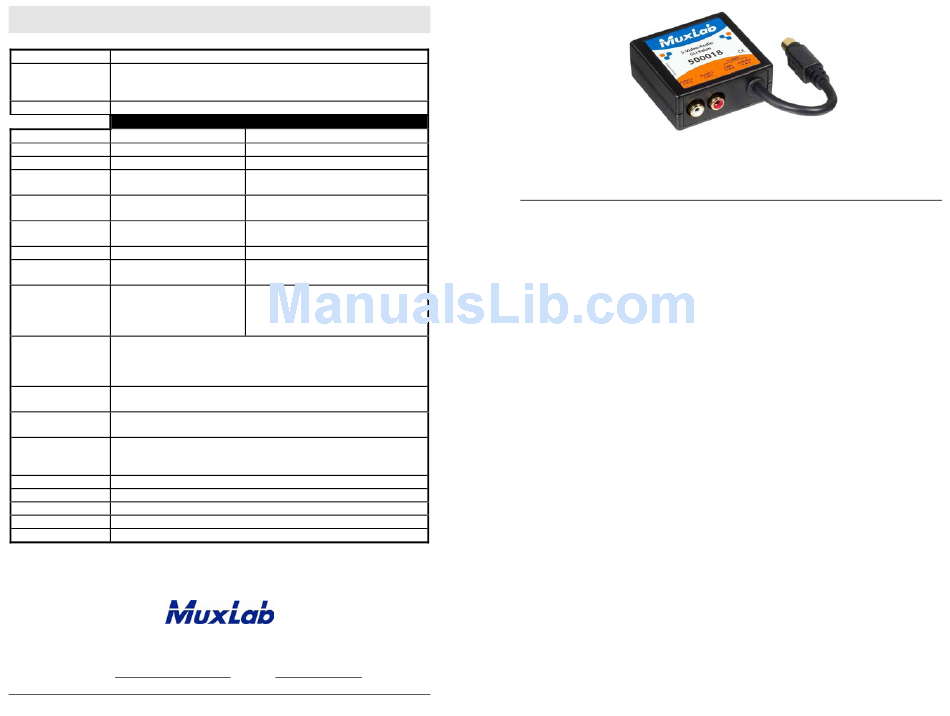

MuxLab GLI-500018 Quick Installation Manual

Specifications

Environment S-Video equipment
Devices DVD players, satellite receivers, laptops, notebooks, monitors, LCD
projectors, CCD cameras, video switchers, S-Video splitters, S-Video
converters and other S-Video equipment
Transmission Transparent to the user
S-Video
Bandwidth 20 Hz to 6 MHz
Impedance 75 ohms
Max. Input 1.1 Vp-p
Insertion Loss Less than 2 dB per pair dB
over the frequency range
Return Loss Better than 15 dB over the
frequency range
Greater than 40 dB over the
Common Mode
Rejection Ratio frequency range
THD N/A
Max. Distance: 1,000 ft (305 m)
Cat 5e/6 UTP/STP
Pin Configuration Luma: Pins 7(R) & 8(T)
(RJ45) Chroma: Pins 4(R) & 5(T)
Reverse Polarity
Sensitive
Cable: 24 AWG or lower solid copper twisted pair wire
Cat 5e/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Ground Loop In the range of +/-50VDC
Isolation
One (1) 4-pin Mini DIN, two (2) RCA audio jacks and one (1) RJ45
Connectors
The 500018 comes with one (1) 6" dual-RCA stereo audio cable
Temperature Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic; black
Dimensions 2.40" x 2.25" x 1.00" plus 6" Max. S-Video lead
3.6 oz (103 g)
Weight
Warranty Lifetime
Order Information 500018 S-Video/Audio GLI Balun
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2010
Audio
20 Hz to 20 kHz
Source 100 Ω Max, Receiver 10 kΩ min.
1.1 Vp-p
Less than 2 dB per pair
N/A
60 dB @ 1 kHz min.
Less then 0.007% @ 1 kHz
3250 ft (1 km)
Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000665-A SE-000665-A
S-Video/Audio Balun GLI – 500018
Quick Installation Guide

Overview

The S-Video/ Audio GLI Balun allows one (1) S-Video channel and one (1) stereo line level analog
audio channel to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point
connection for more versatile cabling. The S-Video/Audio GLI Balun offers full ground loop
isolation to help to eliminate hum-bars or other distortions related to ground loop. The balun is
used in conjunction with other standard MuxLab S-Video products such as the 500016, 500017,
500038 and 500200 in order to provide ground loop isolation for the system.

Applications

The S-Video/Audio GLI Balun is applied where ground loop issues may be present. Some
applications include home theatre systems, boardroom projector systems, classroom training and
rental & staging.
Caution:
Do not attempt to open the housing. There are no user-serviceable parts inside the
S-Video/Audio GLI Balun. Opening the unit may void your warranty.
Note:
In order to support the full 20Hz to 20KHz audio bandwidth, the baluns at both ends must
support 20Hz to 20KHz bandwidth. Please verify the balun's specification table. Furthermore,
only amplified speakers may be connected directly to the S-Video/Audio GLI Balun. Do not
connect 4 ~ 8 ohm speakers directly to the balun.
