Stompblox SB-1 User Manual

Stompblox modular pedalboards allow you to customize
your pedalboard. You can easily connect, disconnect,
and configure them as you need. Hand tightening
thumbscrews are attached to the board, so you don't
have to worry about losing important parts!

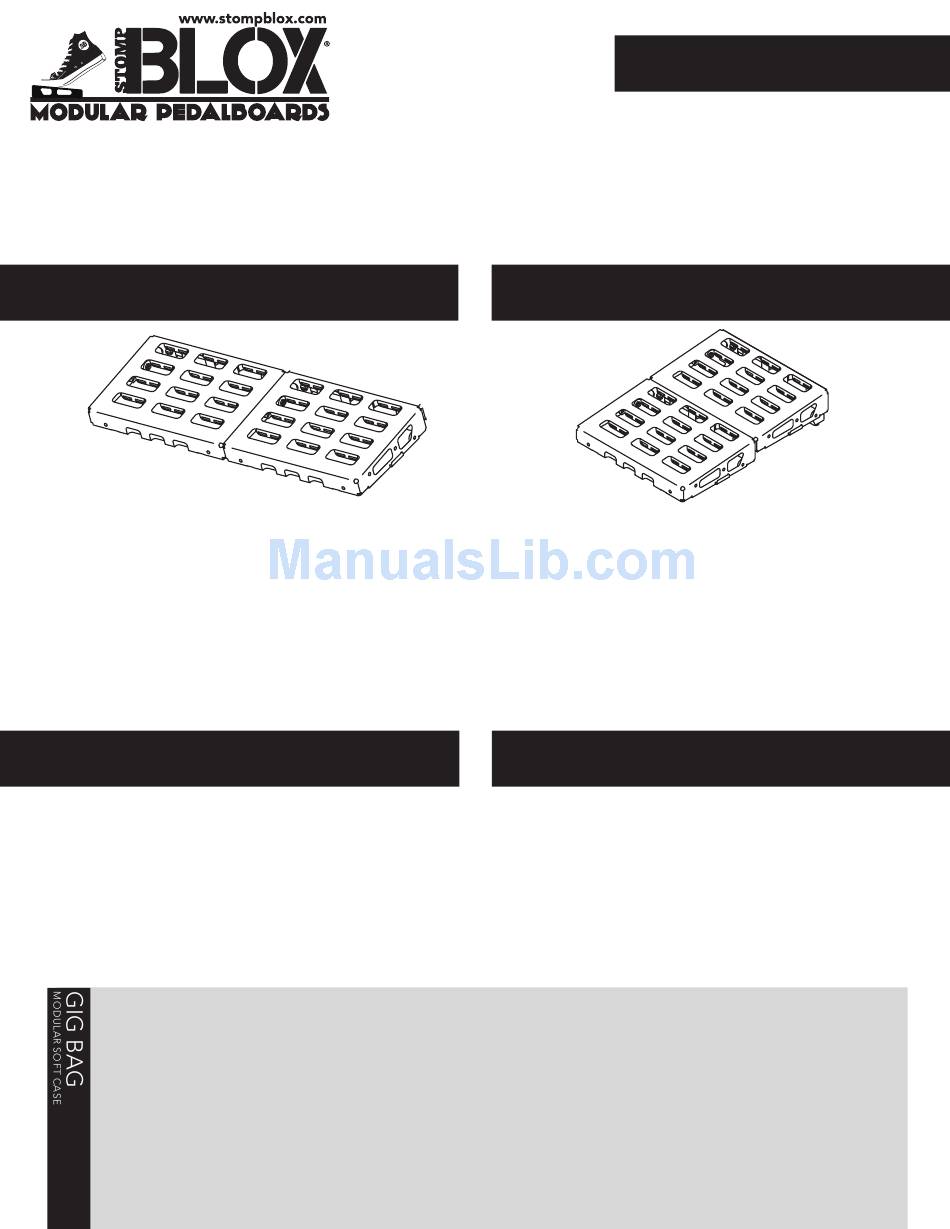

HORIZONTAL CONNECT
• To connect two Stompblox horizontally, align the two
units and insert the hook from the right unit into the
detent in the left unit.
• Press forward and turn each thumbscrew on the right
unit until it threads into the left unit.
• Twist the thumbscrew clockwise until it is tight.
• If you only have one row of Stompblox (none
connected vertically) you can use the back feet to
present a more sloped surface.
• You can connect as many Stompblox horizontally as
you have room for!
CABLE MANAGEMENT
The underside of each Stompblox unit has anchor points
for cable management.
• Route your cables through the pass throughs on the
top and sides of the Stompblox and secure effects
with the supplied Velcro.
• Using the supplied zip ties, cinch routed cables to the
anchor points.
The Stompblox gig bag is designed to carry a single Stompblox unit. When connecting two Stompblox in
either vertical or horizontal orientations, two bags can be zipped together to carry the combined Stompblox
pedalboard.
TO CONNECT TWO BAGS
• Open both bags and lay them flat
• Place the bags open on top of each other
flipped 180º from each other. Make sure that the
zipper pull of one bag lines up with the zipper
start on the other bag.
USER GUIDE
INCLUDED IN THE BOX
• Stompblox unit
• Stompblox gig bag + shoulder strap
• Zip ties
• Velcro
• Support foot with screw
VERTICAL CONNECT
• To connect two Stompblox vertically, align the two
units and insert the tab on the front unit into the
respective slot in the back unit.
• Press forward and turn each thumbscrew on the right
unit until it threads into the left unit.
• Twist the thumbscrew clockwise until it is tight.
• Swing out the feet on the back unit so the combined
units rest flush against the floor. The front unit feet
should be retracted.
• You can only connect two Stompblox in this fashion.
FRONT SUPPORTS
Some Stompblox configurations may require extra
support along the front edge (See "Fallen L" on the
reverse page). The front support piece is designed to
stabilize the floating corner, just align and install with the
supplied 10-32 screw.
Use two Front Supports on the floating Stompblox for
more support (one is included with each unit).
• Zip both halves of the combined bag together
• Zip the support zippers on the face of the bags.
• Connect the straps to the opposing D-rings
SB-1 rev 2.0
