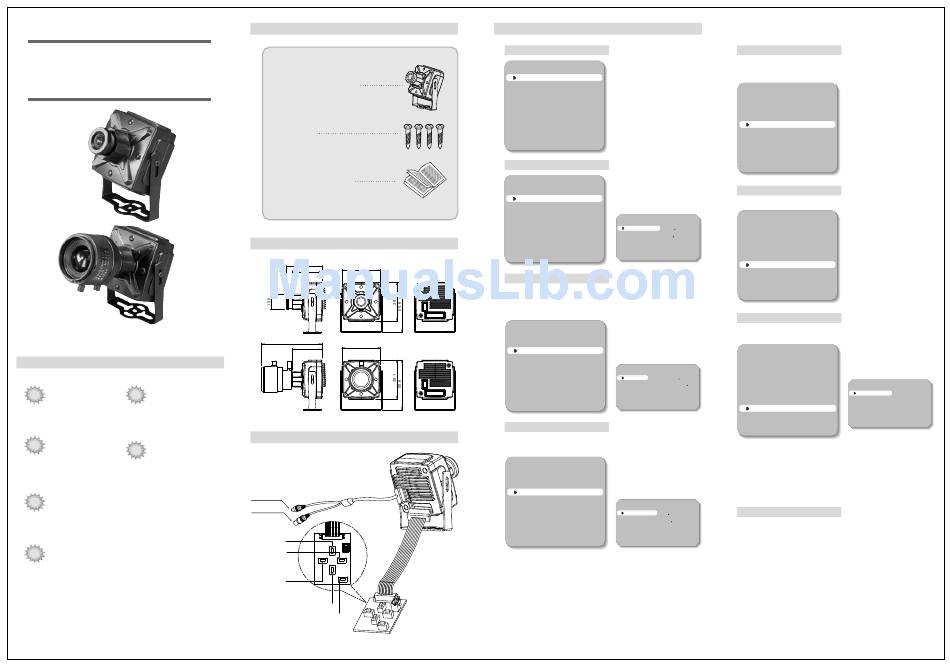

Globe Flight GF-PX540 Instruction Manual

Pixim WDR Mini Camera
Instruction Guide
■ Features
High Resolution color for
Controlled by OSD Menu
crisp, clear video
ㆍThe camera can be controlled
ㆍProgressive image capture
by selecting text displayed on the
ㆍ540 HTVL equivalent
monitor screen.
High Sensitivity for low-light
Additional Functions
images
ㆍThe built-in high sensitivity
ㆍAutomatic White Balance
PIXIM ORCA C-MOS enables
ㆍBacklight Compensation
a clear image even at 0.8Lux
ㆍAutomatic Gain Control
ㆍMotion Detection
Wide Dynamic Range provides
ㆍDigital Zoom (x4)
excellent quality in high-
ㆍPrivacy Mask (12 Zone)
contrast environments
ㆍDigital Day / Night
ㆍ120dB maximum dynamic range
DNR (Digital Noise Reduction)
ㆍThe amount of low illuminance
noise has been significantly
reduced, and the signal to noise
ratio (S/N ratio) as well as
horizontal resolution have been
improved, resulting in a clear
and sharp image display even
in the dark.
■ Components
1. COLOR MINI CAMERA
2. SCREWS
4. INSTRUCTION GUIDE
■ Dimensions
36.0
39.1
30.0
60.7
39.1
30.0
■ Cable Connections
POWER
VIDEO OUT
UP button
RIGHT button
LEFT button
DOWN button
SET button
■ Setup Page Menu
PRESETS
SETUP
PRESETS CUSTOM
NORMAL
INDOOR
OUTDOOR
LENS DC
ㆍNormal : Normal environment.
WDR AUTO
ㆍIndoor : Indoor environment.
WHITE BAL. ATW
AGC MIDDLE ㆍOutdoor : Outdoor environment.
DNR AUTO
ㆍCustom : Custom setting mode.
SENS-UP AUTO
SPECIAL
EXIT
LENS
SETUP ㆍLENS
Choose the lens type DC, Video
PRESETS CUSTOM
and Manual lens by using the
LENS DC selector button.
VIDEO
MANUAL
WDR AUTO
DC MODE
WHITE BAL. ATW
BIAS ------------
AGC MIDDLE
0 80
LIMIT ------------
DNR AUTO
-42 -20
SENS-UP AUTO
PREVIOUS PAGE
SPECIAL
EXIT
WDR
Wide Dynamic Range is essential for capturing the images at all light levels.
The main function of the WDR is to accumulate the scope of contrast between
the brightest and darkest points in the picture. With the AUTO option, the
distribution of brightness values is automatically adapted to the recording
scenario.
SETUP
ㆍUser can select the desired level
PRESETS CUSTOM
HIGH, USER & LOW, in addition
LENS DC
to automatic adaptation (Auto),
WDR USER
by moving the selector button.
AUTO
HIGH
LOW
WDR LEVEL
WHITE BAL. ATW
BIAS -----------
0 -36
AGC MIDDLE
LIMIT 36 0 -----------
DNR AUTO
SENS-UP AUTO
PREVIOUS PAGE
SPECIAL
EXIT
WHITE BALANCE
White Balance is a function which compensates different colors of light being
emitted from different light sources.
Users can select the above levels as they desire according to the environment.
SETUP
PRESETS CUSTOM
LENS DC
WDR AUTO
WHITE BAL. ATW
ATWDes
AWC
ATW CONTROL
MANUAL
LOWLIMIT ------------
AGC MIDDLE
2K 2800
HIGHLIMIT ------------
DNR AUTO
5.5K 7500
SENS-UP AUTO
PREVIOUS PAGE
SPECIAL
EXIT
ㆍATW (Auto Tracking White Balance)
The ATW mode continuously monitors
color temperature. With WB Control set to ATW, color temperature & White
balance can be automatically adjusted accordingly.
ㆍATWDesat (ATW Desaturating)
When WB is set to ATWDesat, the Extended Color temperature is desaturated
i.e when there is a excess of light temperature, ATWDesat Function is used as
well as it reduces the Noise. The limits of the color temperature setting remain
2000K and 11,000K
ㆍAWC (Auto White Balance)
When set to AWC, Color temperature of the Light is automatically adjusted.
ㆍManual (Manual White Balance)
Manual White Balance (MWB) Mode is used when other White Balance Options
are failed.
AGC
Automatic Gain Control is a feature which adjust automatically according to
the incoming Signal. By positioning the arrow to 'AGC' on the SETUP menu
with the help of UP and DOWN buttons, you can select the Mode you wish to go
SETUP
PRESETS CUSTOM
LENS DC
WDR AUTO
WHITE BAL. ATW
ㆍAs the level of gain increases, the
AGC MIDDLE
screen gets brighter and the level
HIGH
of noise also increases.
OFF
LOW
DNR AUTO
SENS-UP AUTO
SPECIAL
EXIT
DNR
DNR is Digital Noise Reduction System with a maximum gain of 24 DB.
SETUP
PRESETS CUSTOM ㆍAUTO
255
LENS DC There is a reduction in noise
60
level with almost no ghost image.
WDR AUTO
WHITE BAL. ATW
ㆍOFF
AGC MIDDLE
There is no reduction in noise
DNR AUTO
level.
OFF
SENS-UP AUTO
SPECIAL
EXIT
SENS-UP
Sens-up helps maintain a bright, clear screen image by automatically detecting
changes in the level of light in low light level conditions.
SETUP
PRESETS CUSTOM
LENS DC
WDR AUTO
36
36 WHITE BAL. ATW
AGC MIDDLE
SENS-UP
DNR AUTO
PREVIOUS PAGE
SENS-UP AUTO
OFF
SPECIAL
EXIT
ㆍPosition the arrow to point to 'SENS UP' on the SETUP menu by using the
UP and DOWN buttons.
ㆍSelect the value required by pressing the LEFT or RIGHT button.
● AUTO : Low light level automatic mode. (X2~X32)
● OFF : The function does not operate.
ㆍPress the SET button when all the settings are complete.
EXIT
5.5K
Saves all the setting menus and then exits.
11K
SENS UP SETUP
X4
