Modesto MAK-21 Instruction Manual

OUR QUALITY CAN'T BE MEASURED

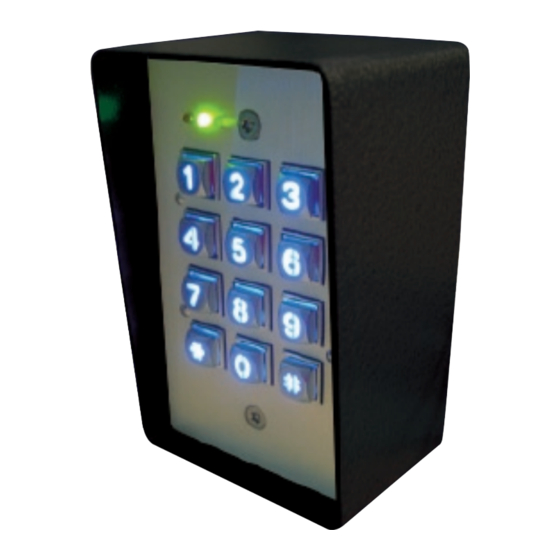

MAK-21 MAK-21
ACCESS KEYPAD
INSTRUCTION MANUAL
Specifications:
• Operating Voltage is 12 VDC
• Current Draw: Average 15 ma, Peak 100 ma @ 12 VDC
• Relays Electric Current: 2A Max @ 30 VDC : 4A @ 120 VAC
• Optimal Operating Temperature: -20 to +70 ˚C (-4 to +158 ˚F)
• Factory Master Code: 1234
• Invalid Code Lock Out: The system will shut down for 60 seconds after 30 incorrect
Dimensions & Contents
3"
4¾"
2 / "
1
8
MAK-21

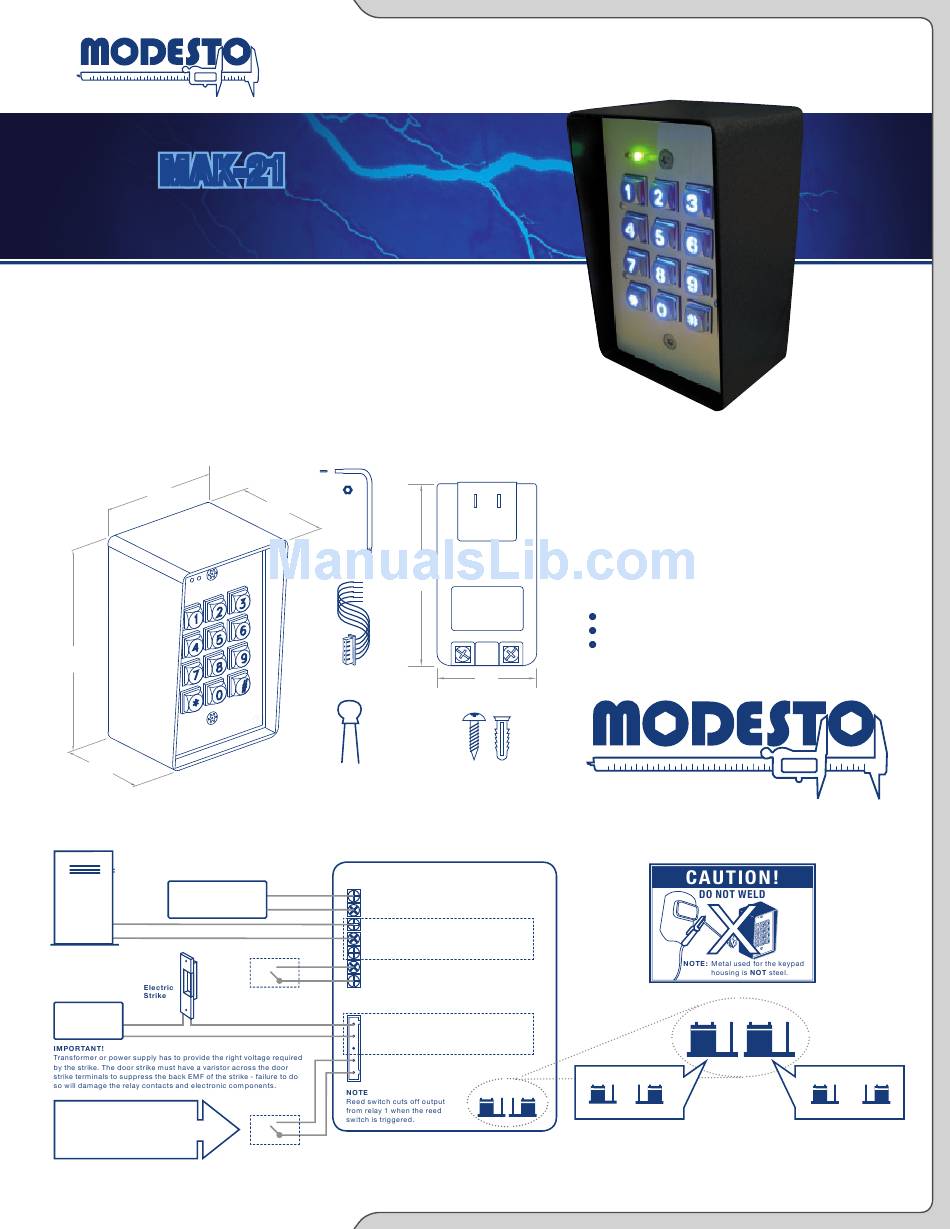

Installation and Wiring Instructions & Diagrams
12 VDC
Power Supply
Gate Operator
Transformer
Contact door reed switch.
This reed switch is used to
reset the re-locking time to
0 seconds when the door is
moved.
®
DESIGNED FOR THE PROFESSIONAL INSTALLER
master or entry codes are attempted.
2½"
WRENCH
3¾"
HARNESS
VARISTOR
+ +
- -
N.O.
Com.
N.C.
P.B.
P.B.
Request to Exit
N.O. (Blue)
Com. (Green)
N.C. (Yellow)
Reed (Brown)
Reed (Brown)
POWER SUPPLY
SOUND SIGNAL
• 1 Beep: Correct PIN Codes, Any Key Pressed
• 2 Beeps: Entering or exiting from Programing mode
• 3 Beeps: Error
• 5 Beeps: Master Code Reset
• 5 Beeps, followed by 5 more beeps:
Successful System Reset
LED SIGNAL
• Green LED: Power On, Stand-by
• Red LED:
• Yellow LED: Relay 2 Activated
2 / "
1
8
SCREWS & PLASTIC
WALL ANCHORS X 4
OUR QUALITY CAN'T BE MEASURED
Figure 1
Relay 1
Relay 2
Figure 2
System 4 or 5 digit
code setting
4OR5 RESET
4 digit
Setting the 4 or 5 digit code and resetting to the Master Code

System Signals

Relay 1 Activated
4OR5 RESET
Master Code resetting to
Factory Code "12345"
5 digit Resetting
®
Figure 3
Normal
