DW-HDSPOTMOD
Username: admin
Password: no password
WHAT'S IN THE BOX
QSG Manual
1 Set
12V DC Power Cable
USB Mouse
1 Set
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday

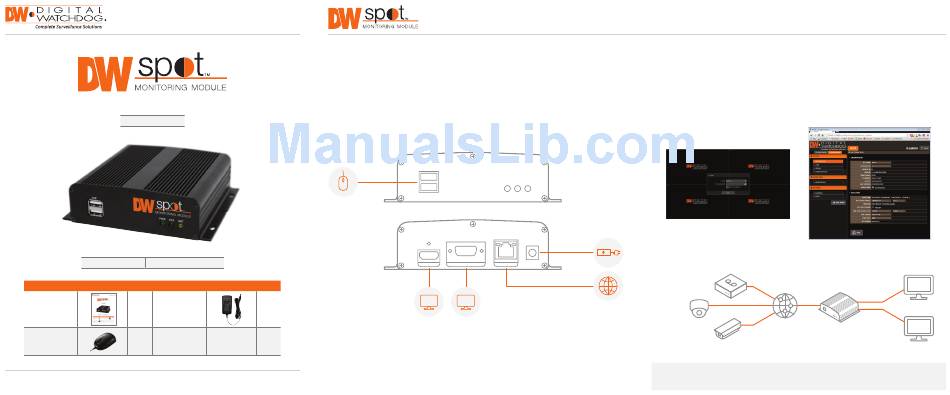

Quick Start Guide
The Digital Watchdog Spot
™
configuration off-site, and power and monitor connection at the site.
Step 1 – SETTING UP THE SPOT MONITORING MODULE OFF SITE
1.
Connect the module to an appropriate power supply.
2.
Connect the module to a local monitor off site for configuration.
3.
Make sure the module is connected to the same network as your IP Cameras, VMAX AHD Core
or VMAX IP Plus
NVR.
™
USB MOUSE
1 Set
SAFETY TIPS
1.
During the boot up process, the module should not be interrupted by pressing any buttons on the mouse.
Do not unplug the power adapter or turn the module off during the boot up process.
digital-watchdog.com
2.
A UPS (Uninterrupted Power Supply) is highly recommended to prevent damage to the module during a
power outage.
Monitoring Module requires only 2 steps to complete the installation—local
FRONT PANEL
USB
PWR
STA
NET
BACK PANEL
DC 12V
POWER SUPPLY
HD OUT
VGA OUT
LAN
NETWORK PORT
HD
VGA
Step 2 – POWERING UP THE SPOT MONITORING MODULE
1.
When the module boots up, it will be in protective mode. This means you will not be able to access the
module's setup menu until you enter the proper username and password.
2.
To unlock the module, right-click anywhere on the screen. The login screen will appear. (Default
Username / Password: admin / no password)
3.
When the module boots up for the first time, you will be guided through the Startup Wizard.
™
DVRs
4.
You can also access the Spot monitor for basic setup via its web browser.
VMAX AHD CORE
DVRs
™
and VMAX IP Plus
™
NVRs
ONVIF
IP Cameras
NOTE: The Digital Watchdog Spot Monitoring Module supports up to 16 supported devices registered,
with quad (4-channel) view only.
Quick Start Guide
HD
HDMI Output
Network
VGA
DW Spot
VGA Output
