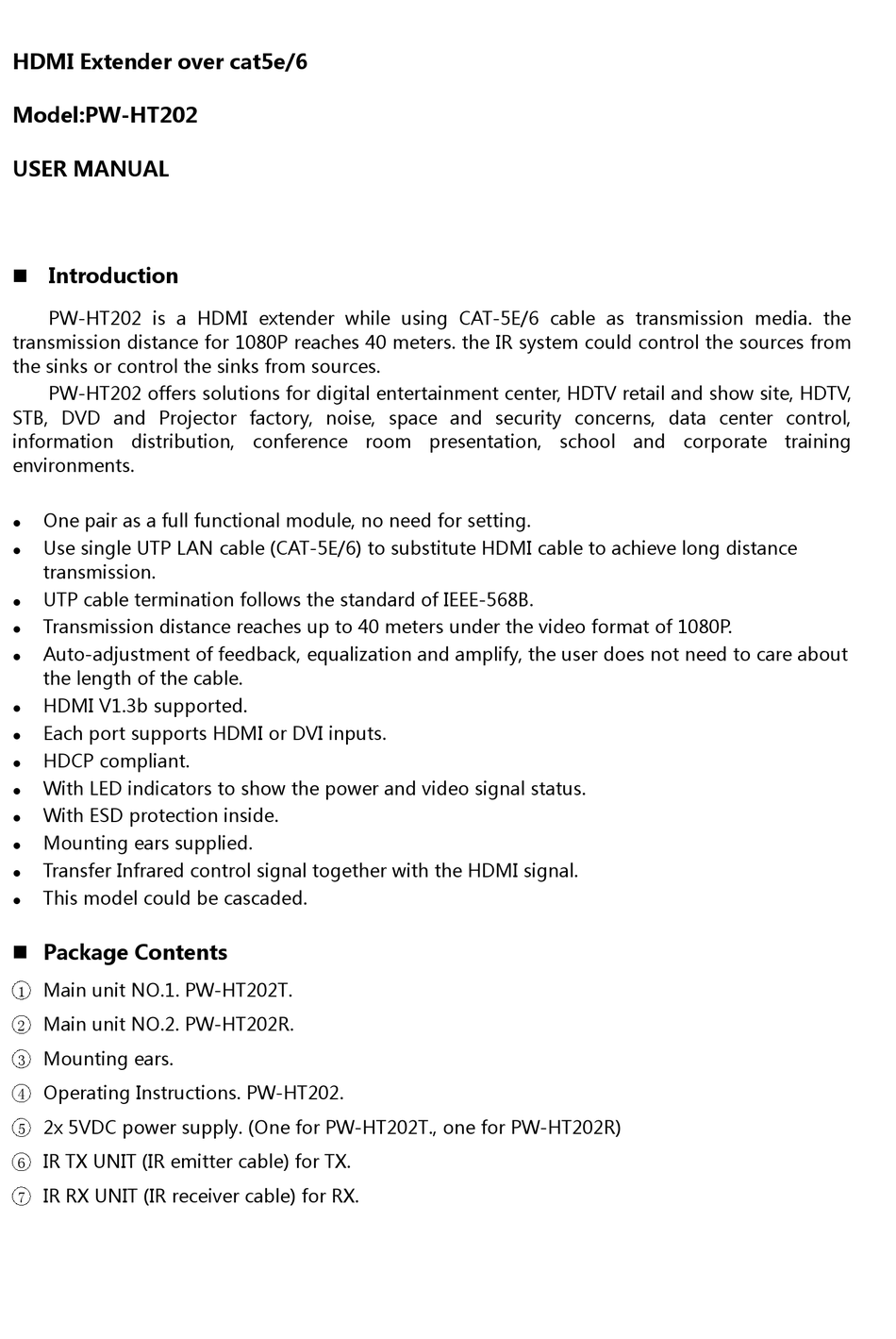

DISTANCER PW-HT202 User Manual

HDMI Extender over cat5e/6
Model:PW-HT202
USER MANUAL
 Introduction
PW-HT202 is a HDMI extender while using CAT-5E/6 cable as transmission media. the
transmission distance for 1080P reaches 40 meters. the IR system could control the sources from
the sinks or control the sinks from sources.
PW-HT202 offers solutions for digital entertainment center, HDTV retail and show site, HDTV,
STB, DVD and Projector factory, noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
One pair as a full functional module, no need for setting.

Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance

transmission.
UTP cable termination follows the standard of IEEE-568B.

Transmission distance reaches up to 40 meters under the video format of 1080P.

Auto-adjustment of feedback, equalization and amplify, the user does not need to care about

the length of the cable.
HDMI V1.3b supported.

Each port supports HDMI or DVI inputs.

HDCP compliant.

With LED indicators to show the power and video signal status.

With ESD protection inside.

Mounting ears supplied.

Transfer Infrared control signal together with the HDMI signal.

This model could be cascaded.

 Package Contents
Main unit NO.1. PW-HT202T.
1
Main unit NO.2. PW-HT202R.
2
Mounting ears.
3
Operating Instructions. PW-HT202.
4
2x 5VDC power supply. (One for PW-HT202T., one for PW-HT202R)
5
IR TX UNIT (IR emitter cable) for TX.
6
IR RX UNIT (IR receiver cable) for RX.
7
