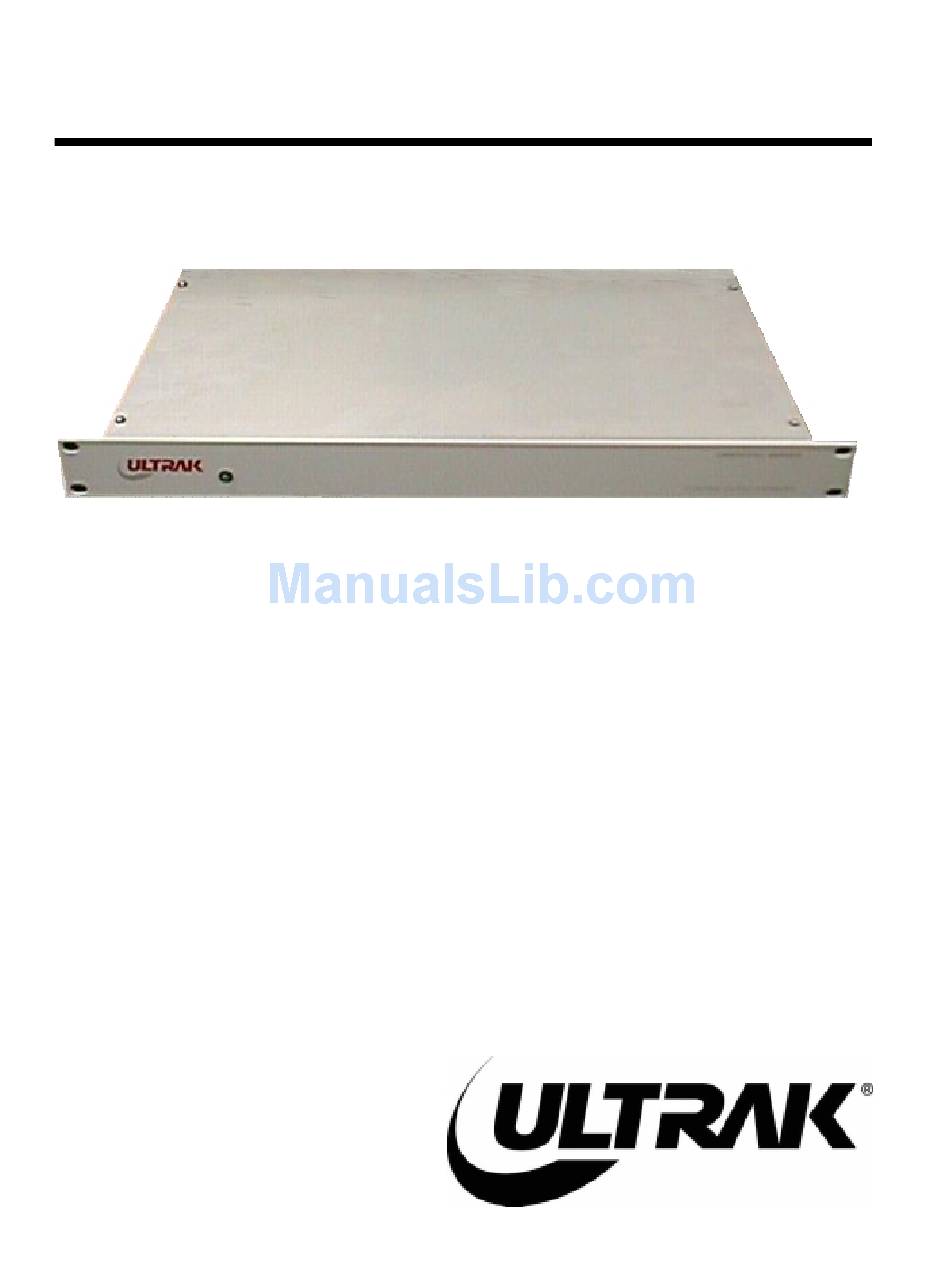

Ultrak COE-16 User Manual

Control output expander

Advertisement

Quick Links

CONTROL OUTPUT EXPANDER
Manual Number 517872-1960
Ultrak
, Inc.
®
4465 Coonpath Road NW
Carroll, OH 43112
(740) 756-9222•(800) 443-6680•FAX (740) 756-4237
USER'S MANUAL
COE-08
COE-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COE-16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ultrak COE-16

  • Page 1 COE-08 COE-16 CONTROL OUTPUT EXPANDER USER’S MANUAL Manual Number 517872-1960 Ultrak , Inc. ® 4465 Coonpath Road NW Carroll, OH 43112 (740) 756-9222•(800) 443-6680•FAX (740) 756-4237...
  • Page 2 ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM ULTRAK, INCORPORATED. THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS. HOWEVER, ULTRAK, INCORPORATED CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF.
  • Page 3: Declaration Of Conformity

    Small System Interface* SSI-100 - may be followed by any number of alphanumeric characters. Control Output Expander COE-08, COE-16 - may be followed by any number of alphanumeric characters Control Receiver CRX-610/BX, CRX-801AX, CRX-801BX *Standard EN60065 does not apply.
  • Page 4 WARNING THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT, THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES. WARNING NOT FOR OUTDOOR USE UNLESS ENCLOSED IN WATERPROOF HOUSING. WARNING TO REDUCE A RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE UNLESS ENCLOSED IN WATERPROOF HOUSING.
  • Page 5: Important Safeguards

    IMPORTANT SAFEGUARDS Read Instructions - All the safety and operating instructions should be read before the unit is operated. Retain Instructions - The safety and operating instructions should be retained for future reference. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions - All operating and use instructions should be followed.
  • Page 6 Power Lines - An outdoor system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outdoor system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  • Page 7 SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 8 HANDLING ELECTROSTATIC-SENSITIVE DEVICES ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES WARNING ELECTROSTATIC SENSITIVE DEVICE. USE PROPER CMOS/MOSFET HANDLING PRECAUTIONS TO AVOID ELECTROSTATIC DISCHARGE. NOTE: Grounded wrist straps must be worn and proper ESD safety precautions observed when handling the electrostatic-sensitive printed circuit boards.
  • Page 9: Table Of Contents

    2.1.4 CCU-100 or CCU-100/A Central Control Unit .........2-3  2.1.5 CATS Family Video Switcher..............2-4 2.1.6 COE-08/A or COE-16/A Control Output Expander Unit ......2-6 2.1.7 FastScan/SmartScan Units ..............2-6 INSTALLATION DRAWINGs .................2-6 SECTION 3. OPERATION ..................3-1 controls and indicators ...................3-1 operatiON.......................3-2 SECTION 4. MAINTENANCE ..................4-1 PREVENTIVE MAINTENANCE ..............4-1...
  • Page 10 LIST OF DRAWINGS Page Installation, COE-08/R Control Output Expander Unit, Rack Mount (D/N 517872-1440).......................2-7 Installation, COE-16/R Control Output Expander Unit, Rack Mount (D/N 517872-2440).......................2-8 Installation, COE-08/D Control Output Expander Unit, Desk Top (D/N 517872-3440).......................2-9 Installation, COE-16/R Control Output Expander Unit, Desk Top...
  • Page 11: Section 1. Introduction

    Part Number Description COE-08/R 517872-1040 0ne Input to Eight Outputs, Rack Mount, 110-120V COE-08/D 517872-3040 One Input to Eight Outputs, Desk Top, 110-120V COE-16/R 517872-2040 Input Sixteen Outputs, Rack Mount, 110- 120V COE-16/D 517872-4040 Input Sixteen Outputs, Desk Top, 110-...
  • Page 12: Specifications

    220 Vac Power Input T.040 Input: One 4-Position Plug In Terminal Block Outputs: COE-08 Two 12-Position Plug In Terminal Blocks (+, - and SH for 8 control outputs) COE-16 Four 12-Position Plug In Terminal Blocks (+, - and SH for 16 control outputs)
  • Page 13 MECHANICAL Installation: 19" Rack Mountable in accordance with EIA Standard RS-310 or Desk Top. Rack Mounting holes accommodate #10 mounting screws Dimensions: 1.72" H x 19" W x 10.51" (D) (44.4 mm H x 490.1 mm W x 266.9 mm D) Weight: 5 lb.
  • Page 15: Section 2. Installation And Interconnections

    SECTION 2. INSTALLATION AND INTERCONNECTIONS EQUIPMENT INTERCONNECTIONS Use single twisted-pair shielded RS422 cable, Diamond Electronics part number 849518-0334, (Carol CO841 or equivalent) for connection to the input and output plug-in terminal blocks. The cable shield should be carried through each unit, but only connected at one end.
  • Page 16: Jad-832 Controller

    2.1.1 JAD-832 Controller If a JAD-832 Controller is connected directly to a COE unit, the JAD-832 must be plugged into a DIA-01 Control Interface Adapter and then the DIA- 01 connected to the input on the COE. The DIA-01 provides the +5V power required to operate the JAD-832.
  • Page 17: Jpd-101 Controller

    A 48” cable assembly, part number 517565-2020, is available for connection from the MUX-05 to a COE unit. This cable has the DIN connector from the MUX-05 installed on one end. Cable Assembly 517565-2020 MUX-05 DIN CONNECTOR WIRE COLOR COE INPUT Pin 1, TX- Pin 2, TX+ 2.1.3...
  • Page 18: Cats Family Video Switcher

    The CCU-100/A Central Control Unit has three control outputs on channels 3, 4, and 7. Each control output could be connected to a COE unit increasing the number of domes from 30 to up to 250. CCU-100/A (CHS 3, 4, 7) COE Input Pin 1, TX- Pin 2, TX+...
  • Page 19 NOTE If a MUX-05 Multiplexer or a CCU-100 or CCU- 100A Central Control Unit is installed, the video switcher communication ports are not used. Use the communication ports on the MUX-05 or the CCU-100 or CCU-100/A. Video Switcher COMM Connector COE Input Port 1 Pin 1, +...
  • Page 20: Coe-08/A Or Coe-16/A Control Output Expander Unit

    2.1.6 COE-08/A or COE-16/A Control Output Expander Unit Any of the outputs on a COE unit can be connected to the input on another COE unit to further increase the number of domes in a system. A COE unit is the same load on the communication line as one dome.
  • Page 21 CONTROL OUTPUT EXPANDER...
  • Page 22 CONTROL OUTPUT EXPANDER...
  • Page 23 CONTROL OUTPUT EXPANDER...
  • Page 24 CONTROL OUTPUT EXPANDER 2-10...
  • Page 25: Section 3. Operation

    SECTION 3. OPERATION CONTROLS AND INDICATORS Figure 3-1. CONTROLS AND INDICATORS FRONT VIEW POWER INDICATOR The power indicator lights red when the unit is plugged into an AC outlet. REAR VIEW 110VAC, 220VAC VOLTAGE SELECTOR This selector sets the power input to 110-120V or 220-240V. Use a small blade screwdriver to switch between 110Vac and 220Vac.
  • Page 26: Operation

    OPERATION After power is applied to the Control Output Expander Unit, operation of the unit is automatic. There are no operating procedures for this unit. The control data is sent from the controller to any interface equipment such as the DIA-01 Control Interface Adapter, CCU-100 Central Control Unit, or Video Switcher, and then to the Control Output Expander Unit.
  • Page 27: Section 4. Maintenance

    SECTION 4. MAINTENANCE PREVENTIVE MAINTENANCE Use of preventive maintenance allows detection and correction of minor faults before they become serious enough to cause equipment failure. As a result, major repairs can be avoided, and the equipment can be maintained in an operable condition with a minimum of maintenance.
  • Page 28 USER-SERVICEABLE PARTS COMPRISING THE CONTROL OUTPUT EXPANDER UNIT. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Any equipment returned to Ultrak for warranty or service repair must have a prior written Authorization to Return Material (ARM) form completed for its repair. Contact: ®...
