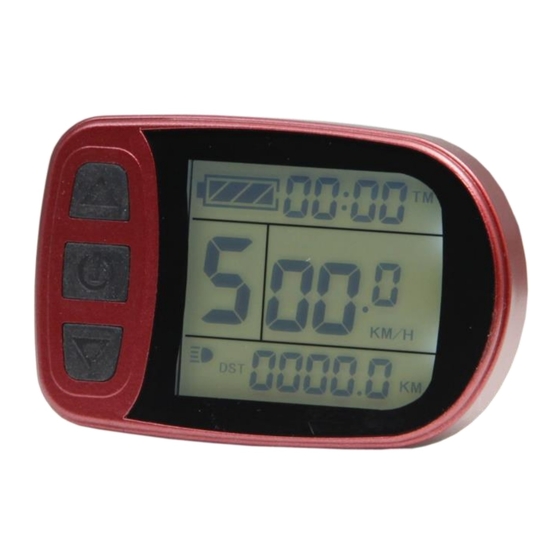

KT-LCD5 eBike Display User Manual
Dear customer, please read this manual before you use KT-LCD5 instrument. The manual will guide
you use the instrument correctly to achieve a variety of vehicle control and vehicle status display.
Functions and Display
UP Button
1
SW Button
2
DOWN Button
3
Pas level
4 ASSIST ASSIST ASSIST ASSIST
Battery capacity indicator
5
Cruise function
6 CRUISE CRUISE CRUISE CRUISE
Power-assisted function
7 PAS PAS PAS PAS
Single trip time
TM TM TM TM
8
Total trip time
TTM TTM
TTM TTM
Throttle display
9 THROTTLE THROTTLE THROTTLE THROTTLE
6Km/H push power assist
10
Operation
1. ON/OFF
Hold button long to turn on the power, and hold
power. When the motor stops driving and when the e-bike is not used for a consecutive 5 minutes, it will
automatically shut down and turn off the motor power supply.
2. Display 1
Hold
Riding speed(metric)
Km/H Km/H Km/H Km/H
Riding speed
MPH MPH
MPH MPH
11
MAX speed
MXS MXS MXS MXS
Average speed
AVS AVS AVS AVS
Distance(metric)
Km Km Km Km
Distance (imperial)
Mil Mil Mil Mil
Trip distance
12 DST DST DST DST
Total distance
ODO ODO ODO ODO
Battery voltage
VOL VOL
VOL VOL
The brake display
13
Backlight and headlights
14
long for a second time to turn off the
button to start up and enter display 1.
2.1 Turn on backlight and headlights
V1.0
2.2 Assist ratio gear (ASSIST) switch
2.3 THROTTLE display
(imperial)
2.4 Cruise function
2.5 Display and delete of single Data
Hold long to turn on backlight and headlights (the controller should
have headlight drive output function); hold
backlight and headlights.
Hold or shortly to switch 1-5 file gear. Gear 1 is for the
minimum power, gear 5 is for the highest power. Each startup will automatically
restore the gear shutdown last time(the user can set randomly). Gear 0 is
without booster function.
Turn on throttle, THROTTLE display.
After the cruise function is turned on, the trip riding speed is greater than
7 km/ h, hold long and enter cruise, the CRUISE lit. Brake or hold any
button to cancel.
long again to turn off the
