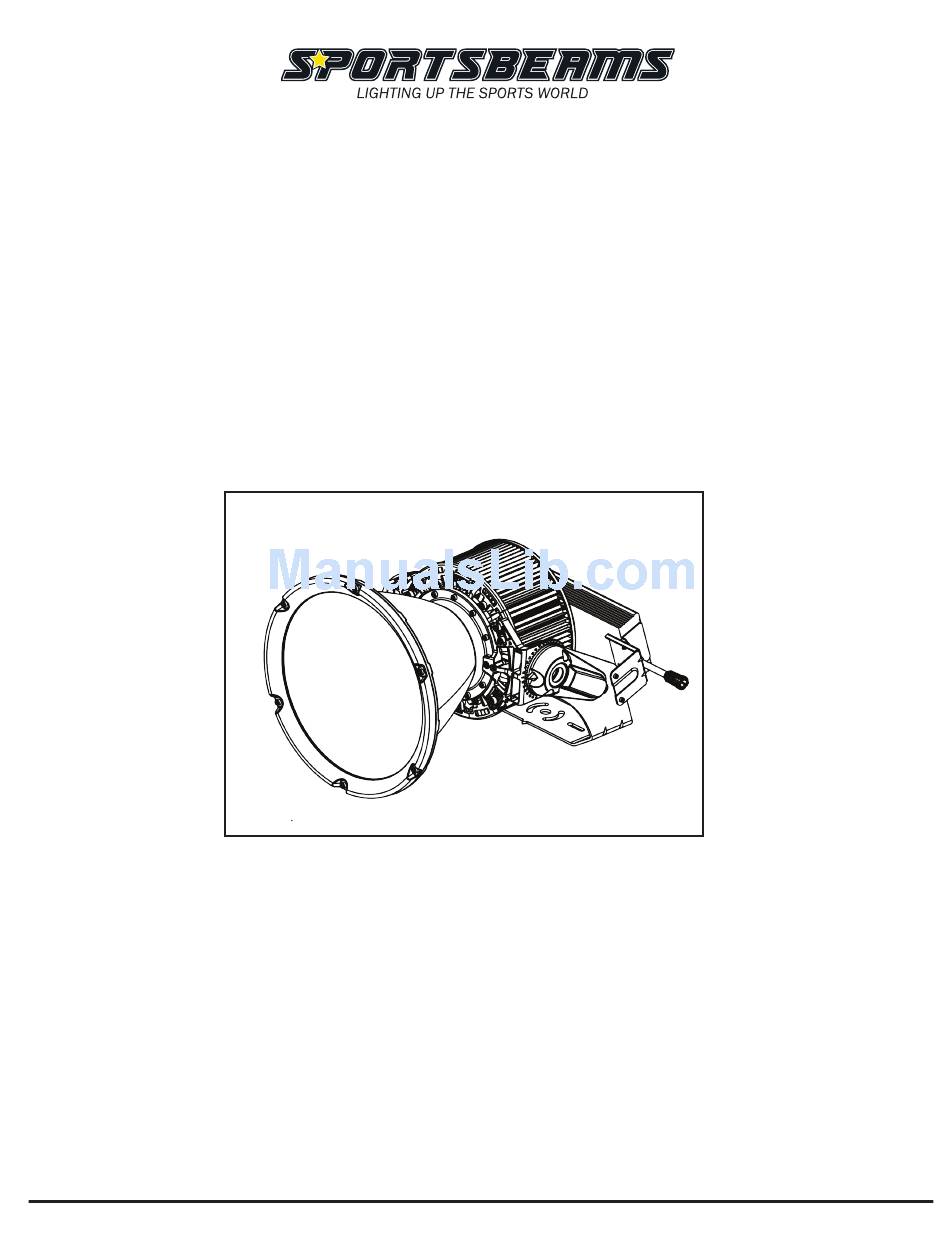

- Page 1 SPORTSBEAMS 800 LED USER MANUAL v.1.1 SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM...
-
Page 2: Table Of Contents
Fixture Labeling .......................6 Standard Pole Installation .......................7 Powering the Fixture ..........................8 Power Input Wiring Diagrams ........................9 .......................10 Control System Diagrams ........................11 Aiming the Fixture ........................12 CARE & MAINTENANCE ........................13 TROUBLESHOOTING ............................13 SUPPORT ...........................14 SPECIFICATIONS SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 3: Introduction
Thank you for choosing Sportsbeams —The nest sports lighting xture available. Unlike traditional sports lighters, the Sportsbeams 800 LED is a sophisticated and intelligent light that will change the way you view night time activies. With proper installation, care and maintenance, the 800 will provide high quality lighting for years to come. -
Page 4: Safety Warnings
1. All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances. 2. Sportsbeams lighting should only be installed by quali ed personnel. Please ensure that you have veri ed the safety of any existing power distribution systems before beginning installation. -
Page 5: Power Supply
POWER SUPPLY Many different brands and types of power supplies can be used with the Sportsbeams 8600 LED xture. Please note, however, that using any power supply besides the one speci cally designed for your project and provided by Sportbeams will VOID THE WARRANTY on this xture. -
Page 6: Installation
INSTALLATION The Sportsbeams 800 LED Fixture can be mounted on top of a mounting structure or underneath. The mounting structure may be a light pole cross arm, an indoor catwalk bracket, or other structural component that will hold the xture rmly in place and ensure enough clearance to adjust xture for the correct beam angle. This xture is designed to be mounted and aimed in accordance to a proper light design to ensure consistant light coverage. -
Page 7: Fixture Labeling
Labeling a xture can be a useful way of ensuring that proper xtures are installed in the right locations. In addition, since our xtures can be controlled individually via MAC address, labeling a xture can aid in setting up control systems. SUGGESTED NOMENCLATURE SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 8: Standard Pole Installation
STANDARD POLE INSTALLATION FIXTURE WIRING ON CROSSARM POLE WIRING SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 9: Powering The Fixture
POWERING THE FIXTURE Never connect the Sportsbeams 600 LED Fixture to an electrical system that is not grounded. Installing a xture in an ungrounded electrical system could allow the metal housing to become energized in the event of an electrical short, resulting in the risk of electrical shock for anyone who comes into contact with the xture. -
Page 10: Wiring Diagrams
208V 3-PHASE BLACK DATA ONSITE POWER BOX INTELLIBEAM POWER DISTRIBUTION & CONTROL NODE IP-67 POWER SUPPLY INDIVIDUAL POWER BRANCHES NEUTRAL BLACK GROUND GROUND UP TO 24 INTELLIBEAM LIGHT SERVER INTELLIBEAM CONTROL ROUTER SWITCH BOARD INTERNET/INTRANET SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... - Page 11 Overview: Every lighting xture that Sportsbeams makes has an integrated control unit, accessed via Ethernet. A NEMA 4 box, or “node”, is mounted on each pole. Each node contains a rugged ethernet router and gives users at-pole control for each xture. Data from the nodes goes to the Intellibeam Control Box via Cat-5, ber or wireless.
-
Page 12: Control System Diagrams
Box and can be connected via Cat-5, ber or wireless for control over the entire eld. Note: Setting up network services for lighting control is beyond the scope of this user manual. For more information, please visit our website. POWER DATA SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 13: Aiming The Fixture
AIMING THE FIXTURE Because of Sportsbeams’s advanced cooling technology, our xture can be mounted in any direction, at any angle. As long as air is not blocked from reaching the intakes around the top of the light and nothing is blocking the output of air from the back of the light, this xture can be freely mounted at any angle. -
Page 14: Care & Maintenance
Turn off power before performing any electrical or control work. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE. DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire. SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 15: Troubleshooting
Crossed wires or a supply wire is grounding out breaker trips Improperly sized fuse or Refer to minimum fuse ratings breaker CUSTOMER SUPPORT Please call Sportsbeams Customer Service at 888.905.6680 for any questions or concerns. SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 16: Specifications
High Grade Steel PCB MATERIAL MCPCB & FR4 LAMP HOUSING MATERIAL Aluminum Alloy LENS MATERIAL Tempered Glass Φ 17.1 Inches LENS TYPE Transparent & Diffusive FIXTURE WEIGHT 36 lbs WIND LOAD EPA @ front=1.93 (ft2) SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... - Page 17 Warranties and Limitation of Liability Please refer to www.sportsbeams.com/warranty for our terms and conditions. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation.
