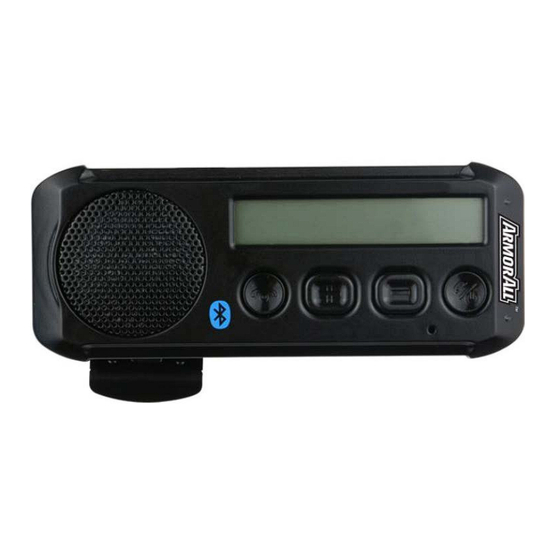

ArmorAll AHF9-1002-BLK Instructions

Fully charge unit before use.
1.Turning on the unit
Press and hold the power button to turn on the Bluetooth Visor Clip, it will automatically pair to the external BT device, if previously
paired. To shut off unit, press and hold power button.
2.Pairing Mode
To pair for the first time open Bluetooth settings on your phone. Search for other devices. Power on the speaker by pushing
�
Then hold down the on the speaker. D isplay will show'' pairing'; then flashes "-bt''. LED will blink red and blue. Select pairing
•
name" AA Speaker ID" from your phone. The Bluetooth Visor Clip will then say'' c onnected"when complete.
3.Viewing Screen Displays
After turning on the Bluetooth Visor Clip, the screen may show "PAIRING" until it enters pairing mode. Once you have activated the
device, the screen will be show "-bt-".
When there is an incoming call, you will see the calling number on the viewing screen. When a call is in progress, "CALLING" shows up.
Ending the call "HANGUP" shows up. Turning off the speaker, "OFF" shows up.
4.Function of LED indicator
RED LED is on when the battery is charging.
RED LED is off when the battery is fully charged.
RED and BLUE LED blink alternately when the Bluetooth Visor Clip is in pairing mode.
RED LED blinks with sound alert when the battery has low power.
5. Button Functions
+
volume increase
Bluetooth Visor Clip
Caller ID
with
�
\!I .
